68 Rockwell Automation Publication 5094-UM001C-EN-P - April 2019
Chapter 4 Output Module Features

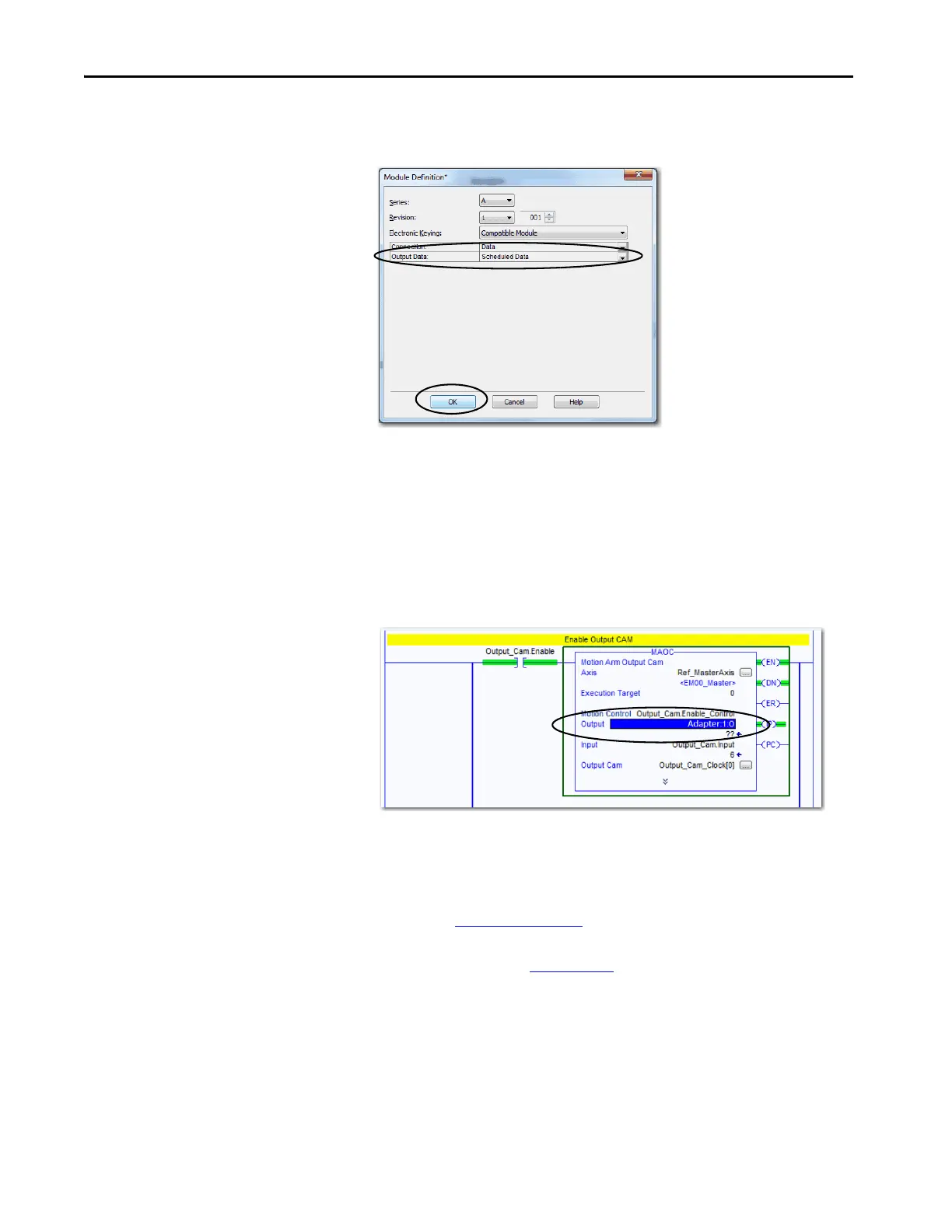

3. On the Module Definition dialog box, choose Scheduled Data for the
Output Data and click OK.
4. Click OK to close the Module Properties dialog box.
5. Add an MAOC instruction to your logic.
6. In the MAOC instruction, use the module output tag in the Output
operand, for example Adapter:1:O for the output module and
shown below.
The tag value displays as ??. This value is correct.
For more information on how to use an MAOC instruction in general, see
the following:
• Logix5000 Controllers Motion Instructions Reference Manual,
publication MOTION-RM002
• Position-based Output Control with the MAOC Instruction Application
Te c hn i q u e, p u bl i c a t i o n 1756-AT017
