74 Rockwell Automation Publication 5094-UM001C-EN-P - April 2019
Chapter 5 Safety I/O Module Features

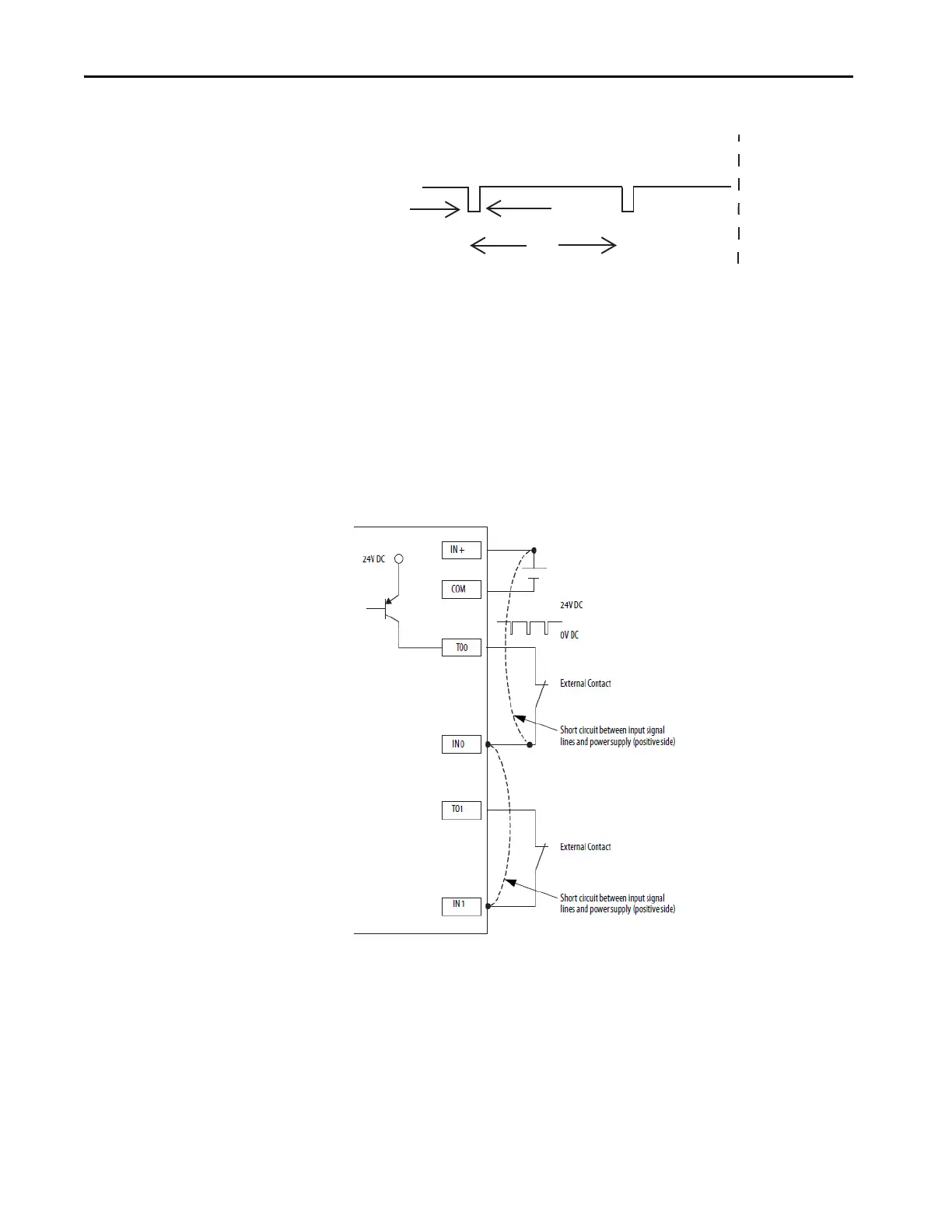

Figure 8 - 5094-IB16S and 5094-IB16SXT Test Pulse in a Cycle
On the 5094-IB16S and 5094-IB16SXT modules, the pulse width (X) is less
than 600 µs; the pulse period (Y) is less than 100 ms.
When the external input contact is closed, a test pulse is output from the test
output terminal to diagnose the field wiring and input circuitry. By using this
function, short circuits between inputs and 24V power and between input signal
lines can be detected. However, a short circuit between two input channels
cannot be detected if these two channels correspond to the same Test Output.
For example, Test Output 0 associates to Safety Input 0 and 8. If these two
channels short circuit, it cannot be detected.
Figure 9 - Short Circuit Between Input Signal Lines
