Using Ultraware Software to Configure the Drive Chapter 8

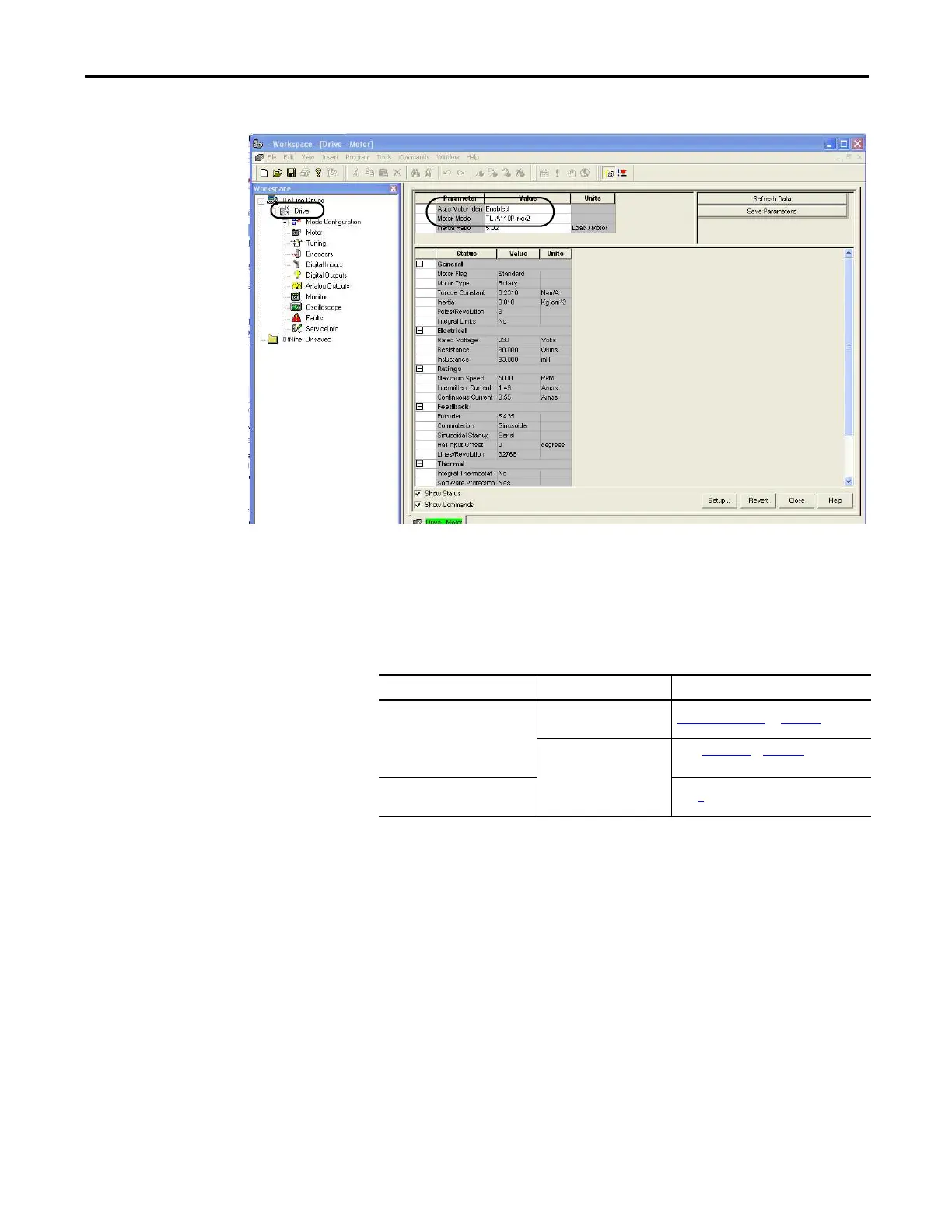

The Kinetix 3 Drive properties dialog box appears.
Actual values depend on your application. Auto Motor Iden default value
is Enabled and remains Enabled if a motor with intelligent encoder is
detected or selected. Value changes to Disabled if a motor without
intelligent encoder is selected.
2. Check the Motor Model parameter value.
3. From the Motor Model pull-down menu, choose your motor.
Assign Digital Inputs
Follow these steps to assign Digital Inputs.
1. Double-click the Digital Inputs branch.
If motor is Value (motor cat. no.) Go To
An Allen-Bradley motor with
intelligent encoder
Is recognized by the
Ultraware software
Assign Digital Inputs on page 105.
Is not recognized by the
Ultraware software
Go to Fault Codes
in Chapter 9 and refer to
troubleshooting for E30.
Not an Allen-Bradley motor with
intelligent encoder
Step 3
.
