Chapter 1 Start

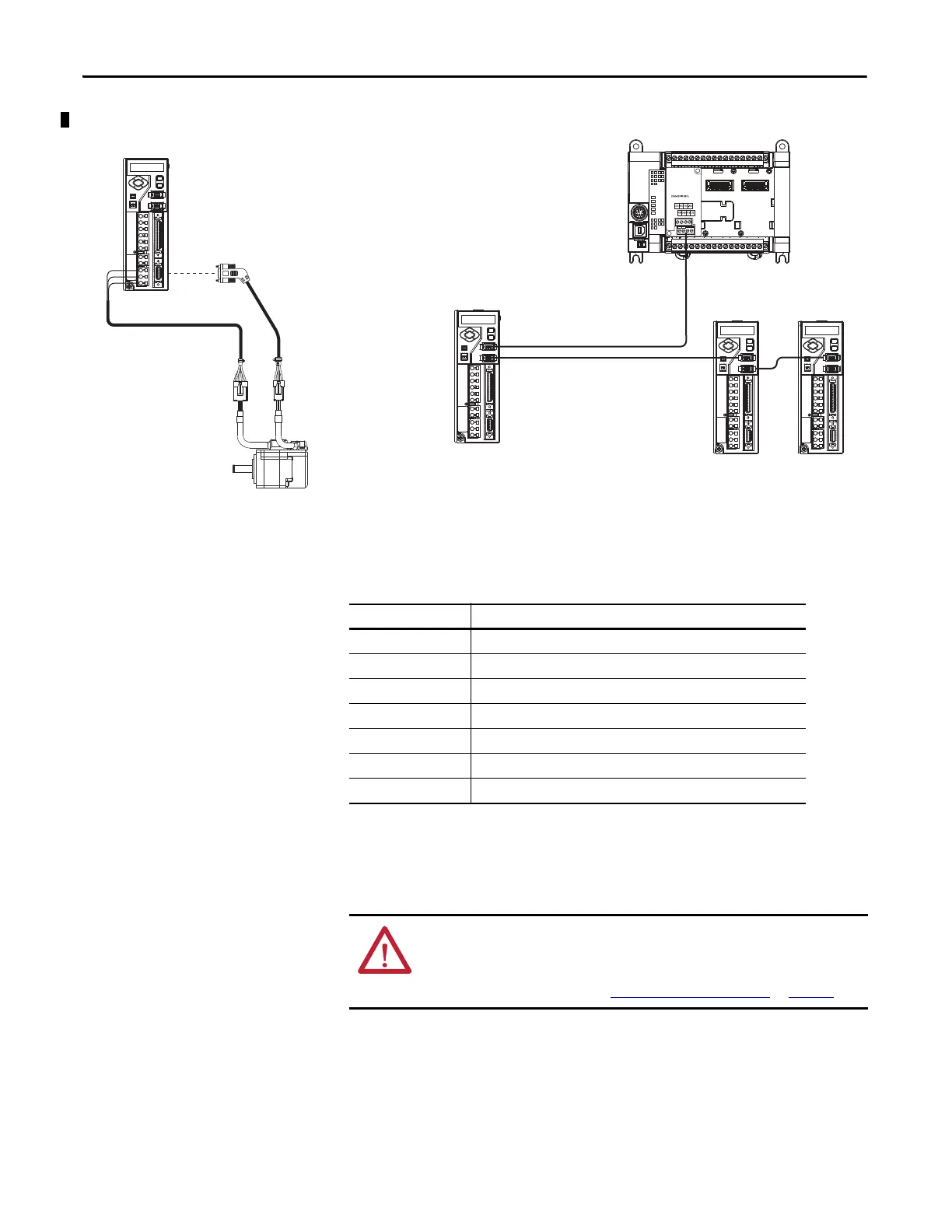

Figure 3 - Typical Configuration - Kinetix 3 Servo Drive System (alternate configurations)
Catalog Number Explanation
Kinetix 3 drive catalog numbers and descriptions are listed in the table.
Agency Compliance
If this product is installed within the European Union and has the CE mark, the
following regulations apply.
2071-Axxxx
Kinetix 3 Servo Drive
2071-Axxxx
Kinetix 3 Servo Drive
2071-Axxxx
Kinetix 3 Servo Drives
2080-LC30-xxxxx
Micro830 Controller
2090-CCMCNDS-48AAx
(modified)
2090-CCMDSDS-48AAxx
Drive-to-Drive Cable
TL-Series Rotary Motors
(TL-Axxxx motor shown)
2090-DANPT-16Sxx
Motor Power Cable
2090-DANFCT-Sxx
Motor Feedback Cable
Table 2 - Kinetix 3 Drive Catalog Numbers
Cat. No. Component Servo Drives
2071-AP0 Kinetix 3, 230V AC, 1 Ø, 0.6 A
2071-AP1 Kinetix 3, 230V AC, 1 Ø, 1.1 A
2071-AP2 Kinetix 3, 230V AC, 1 Ø, 1.7 A
2071-AP4 Kinetix 3, 230V AC, 1 Ø, 3.3 A
2071-AP8 Kinetix 3, 230V AC, 1 or 3 Ø, 5.0 A
2071-A10 Kinetix 3, 230V AC, 3 Ø, 7.0 A
2071-A15 Kinetix 3, 230V AC, 3 Ø, 9.9 A
ATTENTION: Meeting CE requires a grounded system, and the method of
grounding the AC line filter and drive must match. Failure to do this renders the
filter ineffective and can cause damage to the filter.
For grounding examples, refer to Grounding Your Kinetix 3 Drive
on page 59.
