98 Rockwell Automation Publication 2071-UM001E-EN-P - November 2013
Chapter 7 Configure Your Drive for Communication with a Personal Computer Running Connected Components Workbench Software

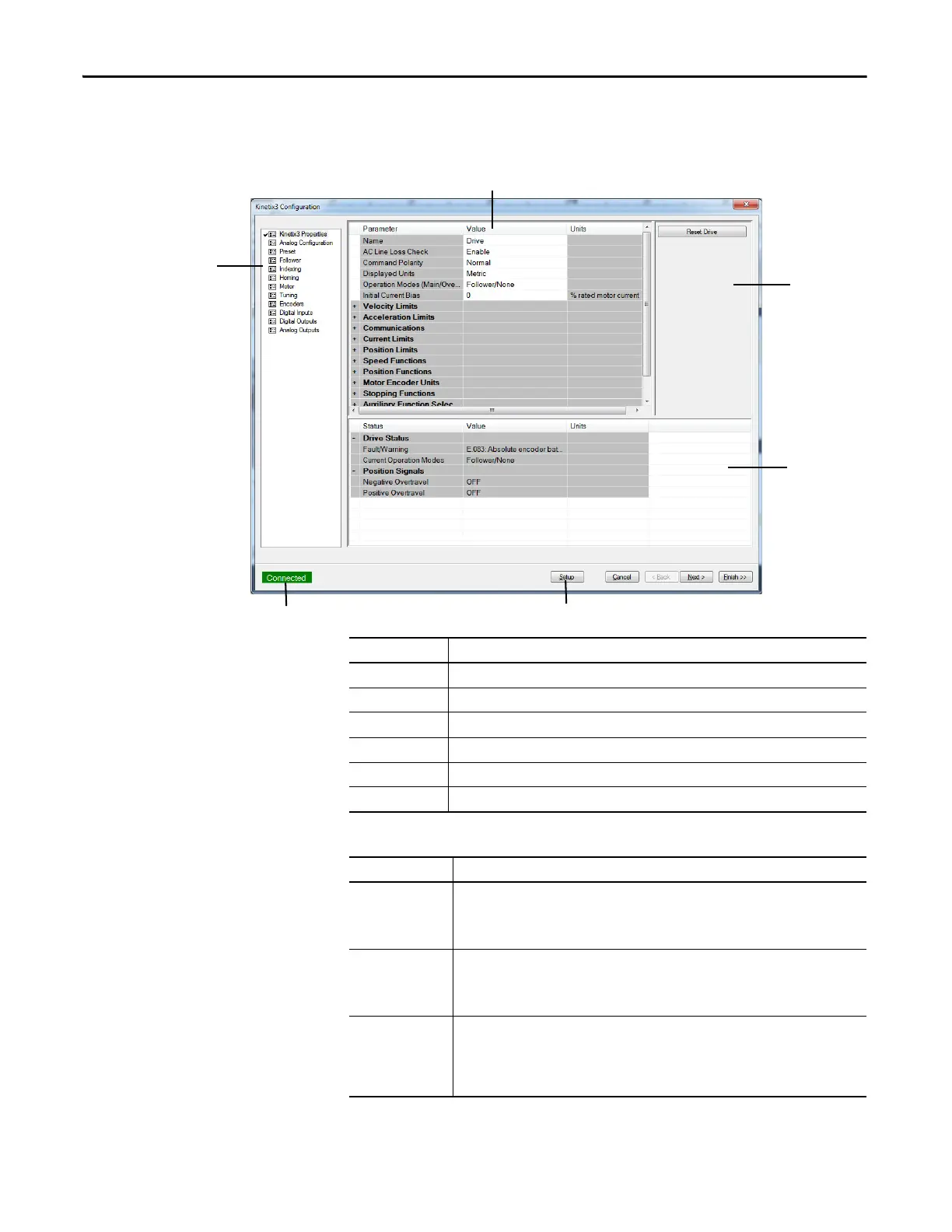

Kinetix 3 Configuration
Wizard
This section provides a description of the Connected Components Workbench
workspace and the drive panes. Use this wizard to make advanced configuration
changes.
Item Feature
1 Parameter group selection
2 Parameters for the associated group
3 Functions associated with the displayed parameters
4 Displays selected statuses
5Opens the status selection dialog
6 Drive connection status
Table 33 - Connected Components Workbench Workspace Pane Uses
Pane Use the Pane to
Kinetix 3 Properties • Configure the drive properties for an offline or an online drive
• Monitor parameters of an online drive
• Execute commands that save current working values as power-up values
• Execute commands that restore the drives original default settings
Analog Configuration • Set Analog Velocity or Analog Current Command Input drive parameters for an online or
offline drive
• Monitor the status of the incoming Analog Command for an online drive
• Execute commands that remove Velocity and Current Input Offsets for an online drive
Preset • Configure up to seven preset velocity values
• Preset parameters control drive operation when the Operating mode is set to Preset
Velocity in the Drive properties pane
• The drive uses the preset velocity value selected by the Preset Select 1, 2 and 3, as set in the
Digital Inputs group
