76 Rockwell Automation Publication 2071-UM001E-EN-P - November 2013
Chapter 4 Connect the Kinetix 3 Drive
Wiring the Feedback Breakout Board
The 2071-TBMF Feedback breakout board is suitable for terminating flying-lead
motor feedback cables. Use it with the Kinetix 3 drive and all motors with
incremental or high-resolution feedback. It has a 20-pin, male, mini D-sub
connector and is compatible with all Bulletin 2090 feedback cables.
The TLY-Axxxx-B high-resolution motors with 17-bit encoder require a 3.6V
battery, purchased separately, see Replacement Battery Specifications
on page 36.

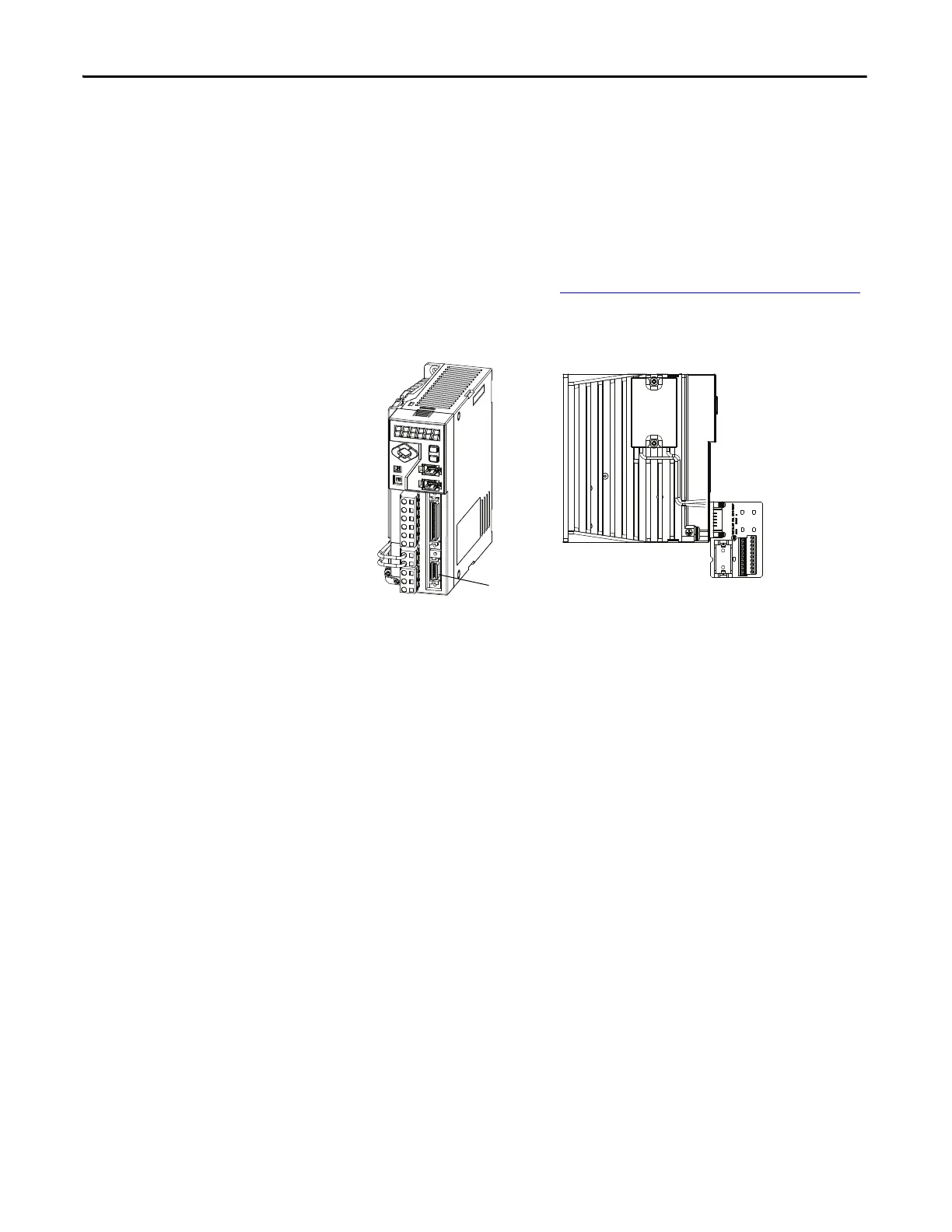

Figure 41 - Kinetix 3 Drive (MF connector)
2071-TBMF Feedback breakout board.
Use with flying-lead feedback cable.
Motor Feedback (MF)
Connector
Kinetix 3 Drive Front View
(2071-AP4 drive is shown)
Kinetix 3 Drive, Side View
(2071-AP4 drive is shown)
