Configure Your Drive for Communication Chapter 6
Configure Your Kinetix 3
Drive for USB Communication
with a Personal Computer
Use the 1203-USB converter to connect your drive to your personal computer if
you are using Connected Components Workbench software to configure your
drive.
Download Connected Components Workbench Software
1. Open your Internet browser.
2. Navigate to http://ab.rockwellautomation.com/Programmable-
Controllers/Connected-Components-Workbench-Software.
Consult Micro800 and Connected Components Workbench Getting Started
Guide, publication 2080-QR001
, for details on the download process.
To configure the Kinetix 3 drive communication port for USB communication,
follow these steps.
1. Use the keypad on the front of the drive to set the following parameters.
See Status Display/Operation Mode
for keypad operation.

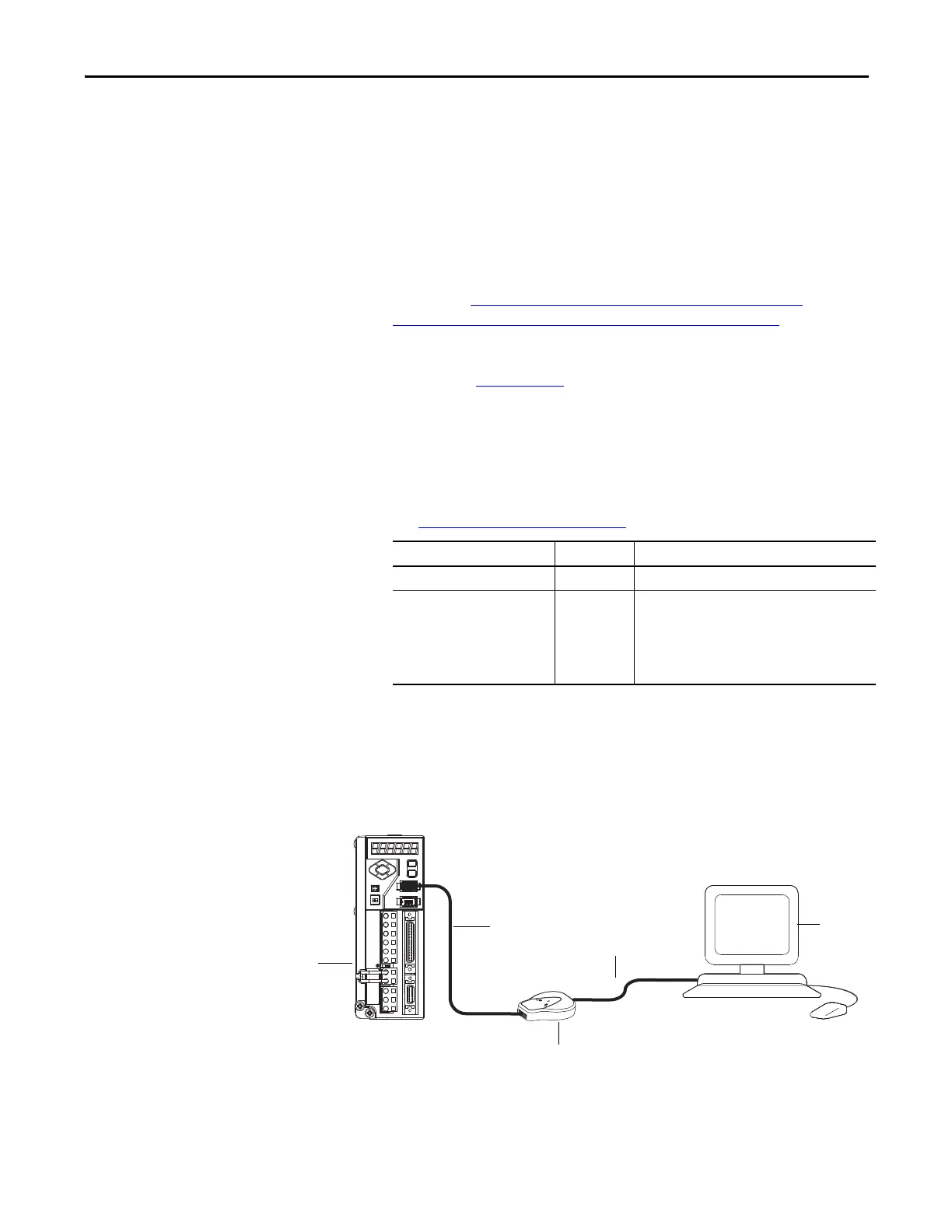

2. Use the USB cable to connect your personal computer with the 1203-USB
converter.
3. Connect the1203-USB converter to the Kinetix 3 drive with the 2090-
CCMUSDS-48AAxx communication cable.
Parameter Name Parameter Setting
Drive Address Pr0.07 248
Serial Port Configuration Pr0.09 1102
where, 2 - 19,200 Kbps Baud Rate
0 - 8 Data Bits, No Parity, 1 Stop Bit
1 - Modbus-RTU protocol
1 - RS-485
To Next Page
