Connect the Kinetix 3 Drive Chapter 4
Three-phase Power Wired to Three-phase Drives
These examples illustrate grounded three-phase power wired to three-phase
Kinetix 3 drives when phase-to-phase voltage is within drive specifications. The
ungrounded power configuration does not include the ground connection
labeled as ‘optional’ in these figures.

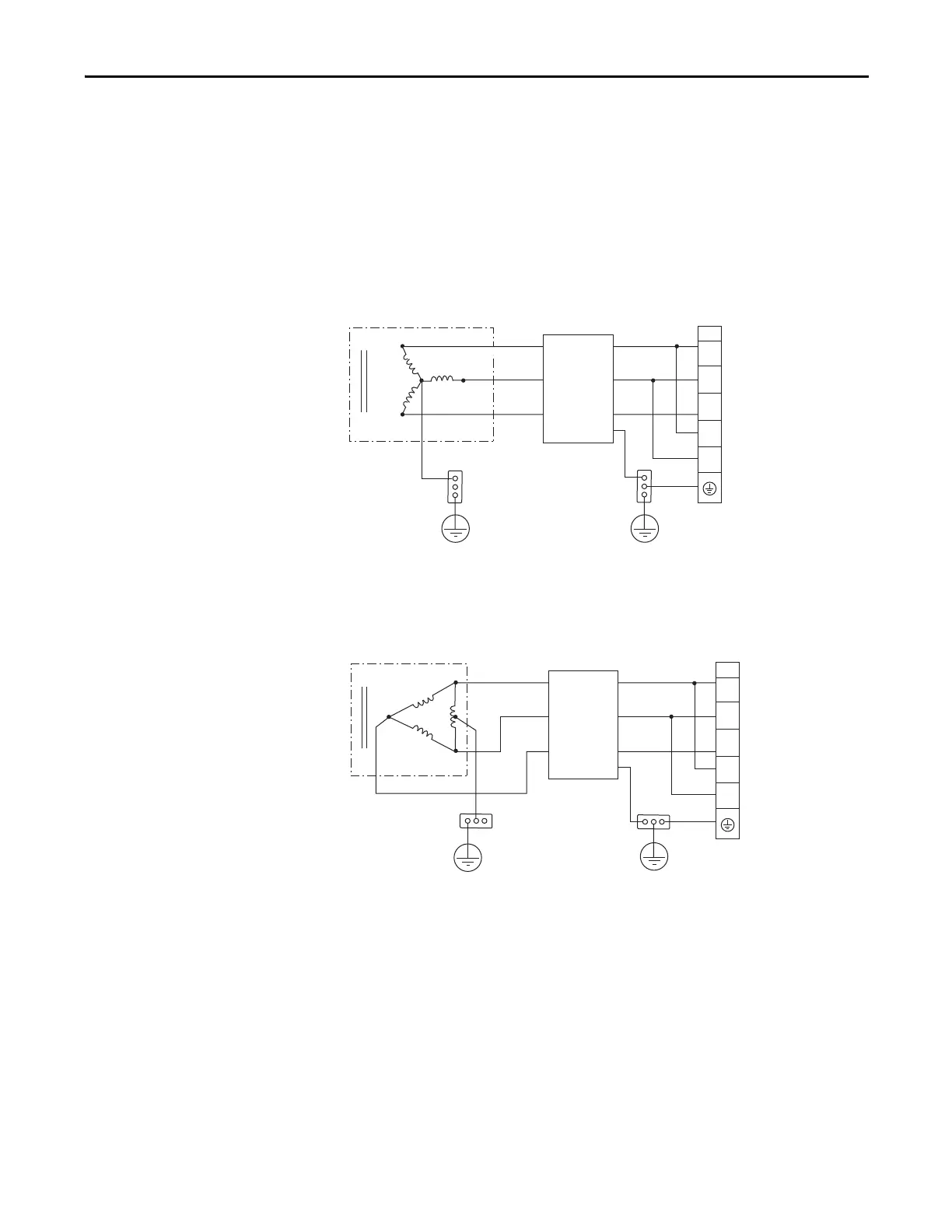

Figure 23 - Three-phase Power Configuration (WYE Secondary)
Feeder and branch short circuit protection is not illustrated.
Figure 24 - Three-phase Power Configuration (Delta secondary)
Feeder and branch short circuit protection is not illustrated.
