Rockwell Automation Publication 2071-UM001E-EN-P - November 2013 39
Kinetix 3 Drive Connector Data Chapter 3
Table 15 - 17-Bit Serial Specifications
Feedback Power Supply
The Kinetix 3 drive generates +5V DC for motor feedback power. Short circuit
protection and separate common mode filtering for each channel are included.
Table 16 - Motor Feedback Power Specifications

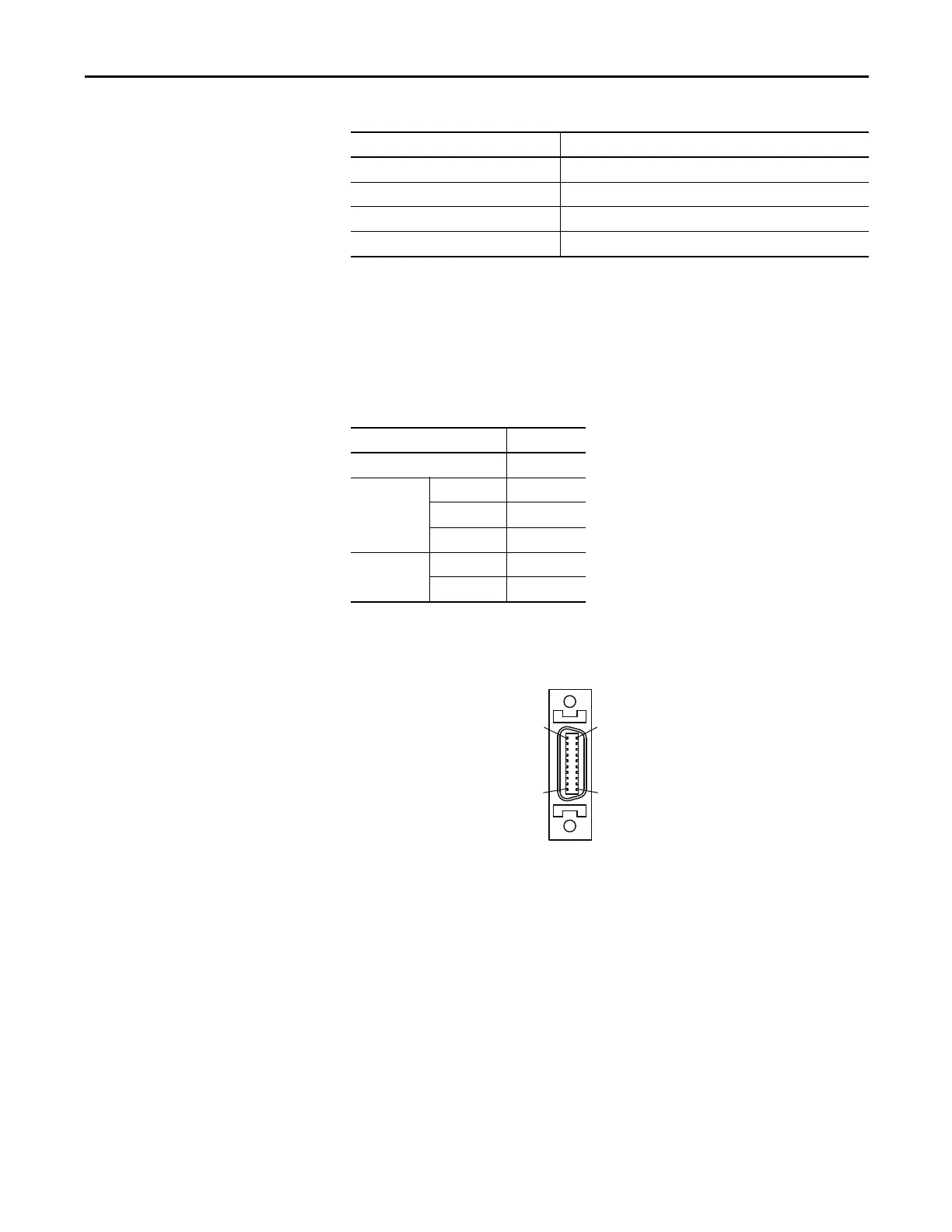

Figure 16 - Pin Orientation for 20-pin Motor Feedback (MF) Connector
Attribute Value
Memory support Programmed with Allen-Bradley motor data
Differential input voltage 1.0…7.0V
Data communication 2.5 Mbps, 8 data bits, no parity
Battery 3.6V, external to drive on the breakout board
Attribute Value
Signal EPWR
Voltage
min 5.08
nominal 5.25
max 5.45
Current, mA
min 10
max 300
