Rockwell Automation Allen-Bradley Kinetix 3 2071-AP8 User Manual

Rockwell Automation Publication 2071-UM001E-EN-P - November 2013 49
Kinetix 3 Drive Connector Data Chapter 3

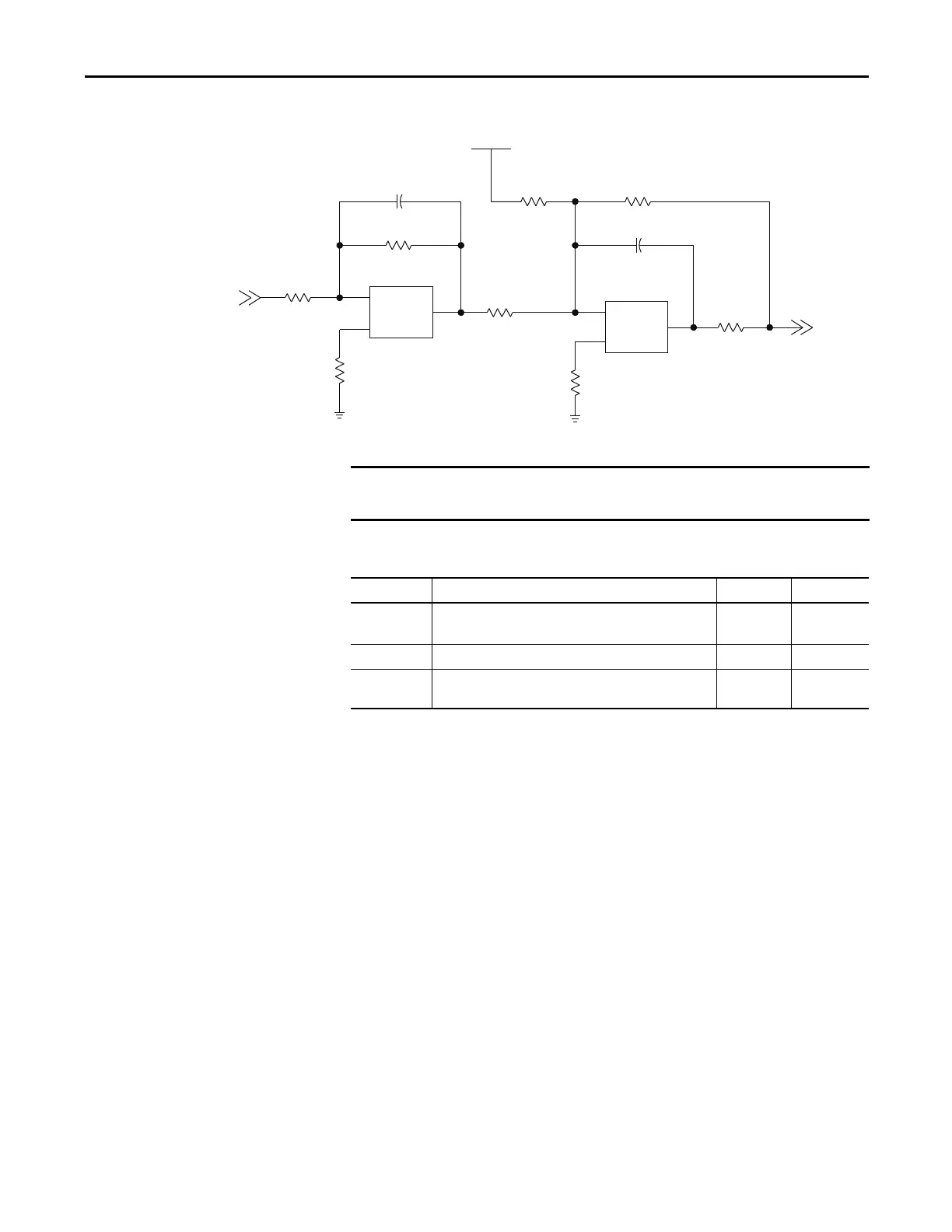

Figure 22 - Analog Output Configuration
This table provides a description of the analog output specifications.
GNDGND
MP
LM224
LM224
VCC
A_MON
IMPORTANT
Output values can vary during powerup until the specified power supply
voltage is reached.
Parameter Description Min Max
Resolution
Number of states that the output signal is divided into,
2
(to the number of bits)
.
12 Bits —
Output Current Current capability of the output. -10 mA +10 mA
Output Signal
Range
Range of the output voltage. -10V +10V
