Chapter 6 Configure and Start the Kinetix 5500 Drive System
11. Select the Motor > Model category.
Motor model attributes are automatically estimated from the
Nameplate/Datasheet parameters. For improved performance, motor
tests can be run.
12. Select the Motor > Analyzer category.

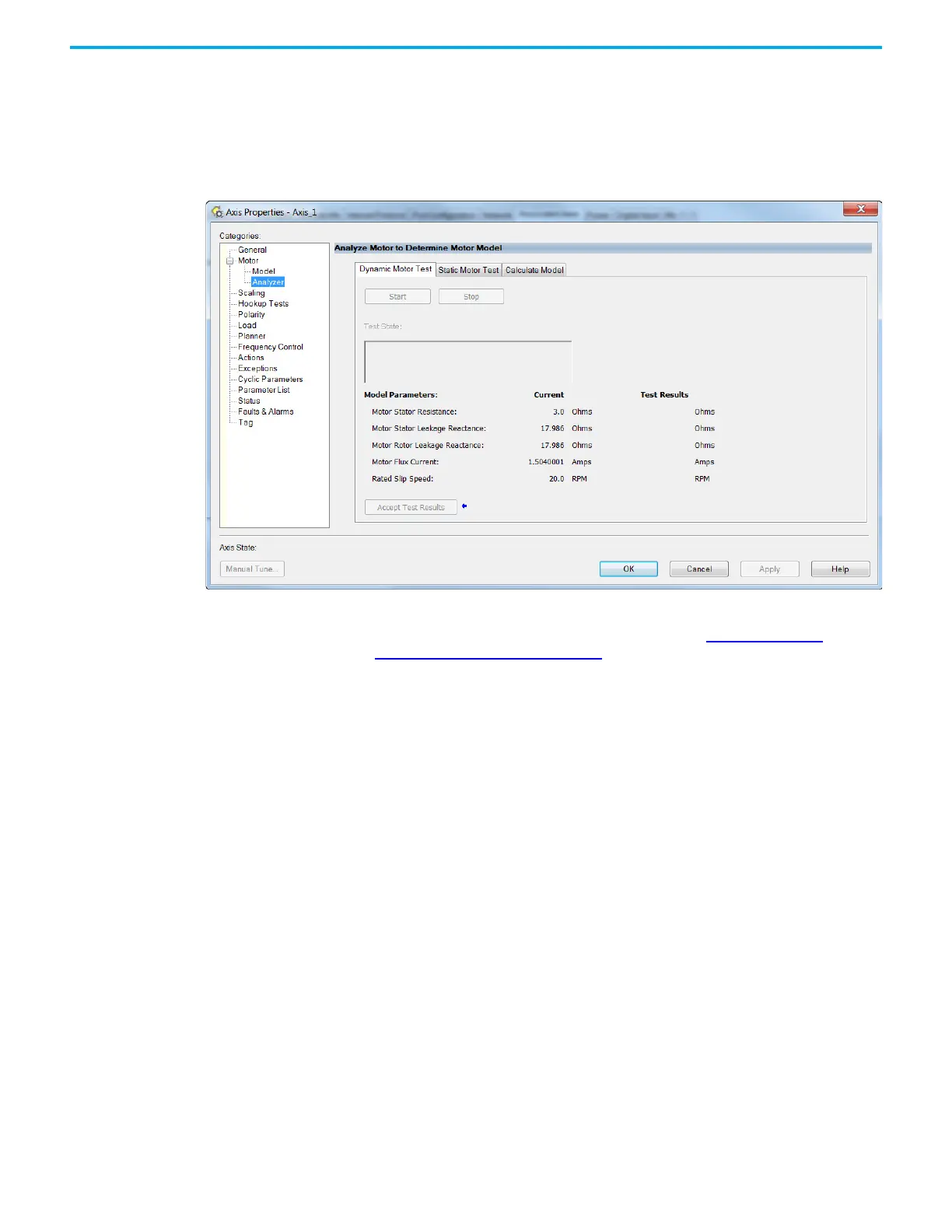

13. The Analyze Motor to Determine Motor Model dialog box opens.
14. Click one of the motor test tabs.
In this example, Calculate Model is chosen. See Motor Tests and
Autotune Procedure on page 228 for information about each of the tests.
15. Click Start.
16. Click Accept Test Results.
17. Click OK.
