Chapter 6 Configure and Start the Kinetix 5500 Drive System
8. From the Data Source pull-down menu, choose Nameplate Datasheet.
This is the default setting.
9. From the Motor Type pull-down menu, choose Rotary Induction.
10. From the motor nameplate or datasheet, enter the phase-to-phase values
for your motor.
See Motor Category on page 226
for a motor performance datasheet
example.
11. Click Apply.
Basic Volts/Hertz Method
1. Configure the General tab and Motor tab as shown in General and Motor
Categories on page 121.

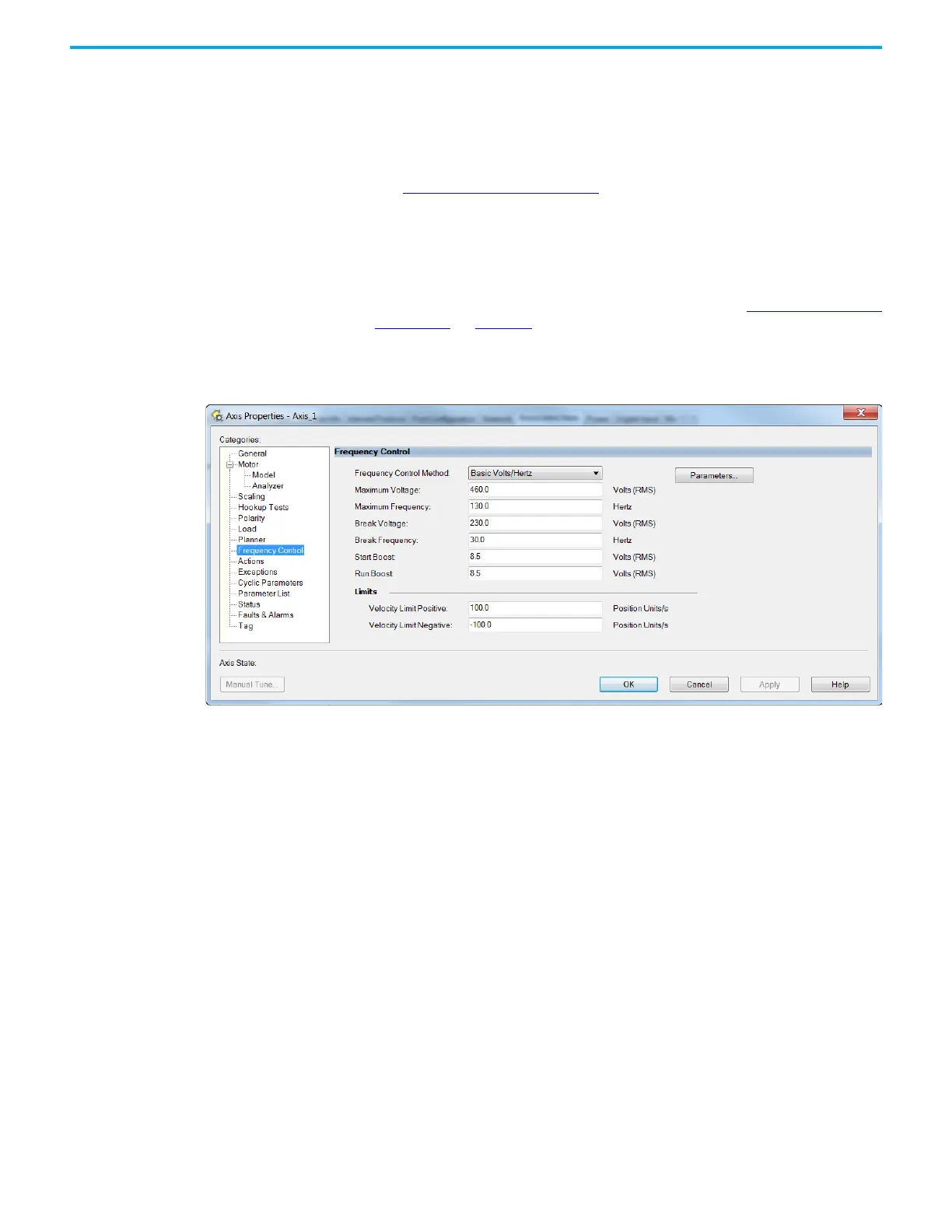

2. Select the Frequency Control category.
3. From the Frequency Control Method pull-down menu, select Basic Volts/
Hertz.
4. Enter the Basic Volts/Hertz attribute values appropriate for your
application.
Default values are shown.
5. Click Apply.
6. Select the Parameter List category.
