Rockwell Automation Publication 2198-UM001M-EN-P - November 2022 47
Chapter 3 Mount the Kinetix 5500 Drive System
Shared-bus Connection System
The shared-bus connection system is used to extend the mains AC input, 24V
control input, and the DC bus power from drive-to-drive in shared-bus multi-
axis configurations.
The connection system is composed of three components:
Input wiring connectors that plug into the leftmost drive and receive
input wiring for mains AC and 24V DC.
AC bus, DC bus, and 24V DC T-connectors that plug into the drives
downstream from the first where AC, DC, and/or 24V control power is
shared. DC bus T-connectors also plug into the first drive where DC bus
power is shared.
Busbars that connect between drives to extend the mains AC bus, DC
bus, and 24V DC control power from drive-to-drive.

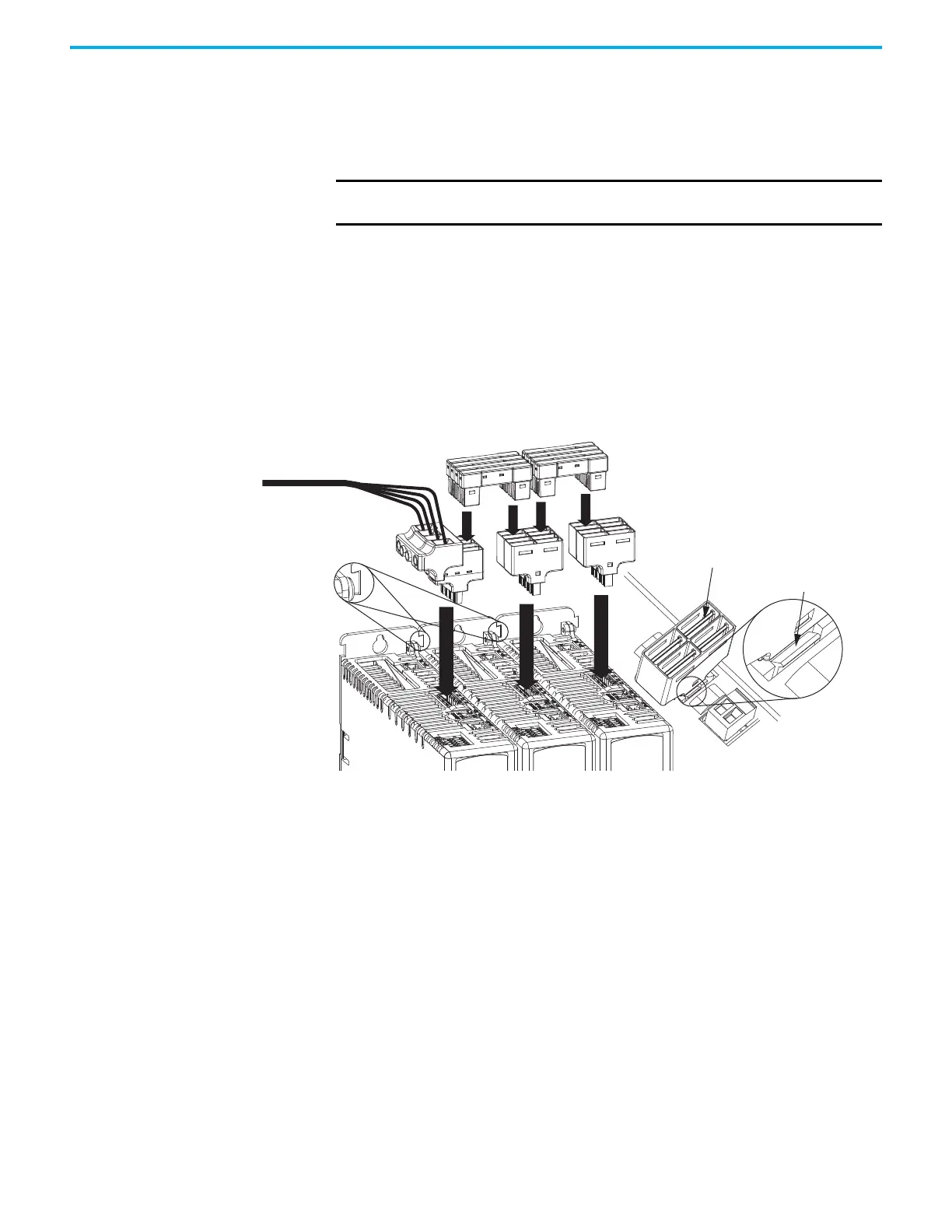

Figure 23 - Connection System Example
(1) Due to the higher amp rating of frame 3 drives, input wiring connectors for frame 3 drives (catalog number 2198-H070-ADP-
IN) are slightly larger than connectors for frame 1 and 2 drives (catalog number 2198-H040-ADP-IN).
(2) Due to the extra width of frame 3 drives, busbar connectors between frame 3 drives are slightly longer (85 mm [3.35 in.])
than connectors between frame 3, frame 2, and frame 1 drives (55 mm [2.17 in.]).
(3) DC bus T-connectors latch on both sides when inserted into the drive. To remove the DC bus T-connector, at least one latch
must be pried away with a non-conductive probe.
The three components assemble from left to right across the drive system.
1. Attach wiring to input wiring connectors.
2. Insert input wiring connectors and T-connectors into the appropriate
drive connectors.
3. Insert busbars to connect between wiring connectors and T-connectors.
IMPORTANT When the shared-bus connection system is used, the zero-stack tab
and cutout must be engaged between adjacent drives.
Input Wiring Connector
(1)
(mains AC input shown)
AC T-connectors
Busbar Connectors
(2)
(AC busbars shown)
Input Wiring
(AC input wiring is shown)
Zero-stack Tab
and Cutout Engaged
2198-Hxxx-ERSx Drive System (top view)
Frame 2 drives are shown.
Drive with largest amp rating must be leftmost
drive.
DC Bus Connector Latch
DC Bus T-connector
(3)
