Appendix A Interconnect Diagrams
Bus-sharing Wiring Examples
For bus-sharing configurations, use the 2198-H0x0-xx-x shared-bus
connection system to extend power from drive to drive.

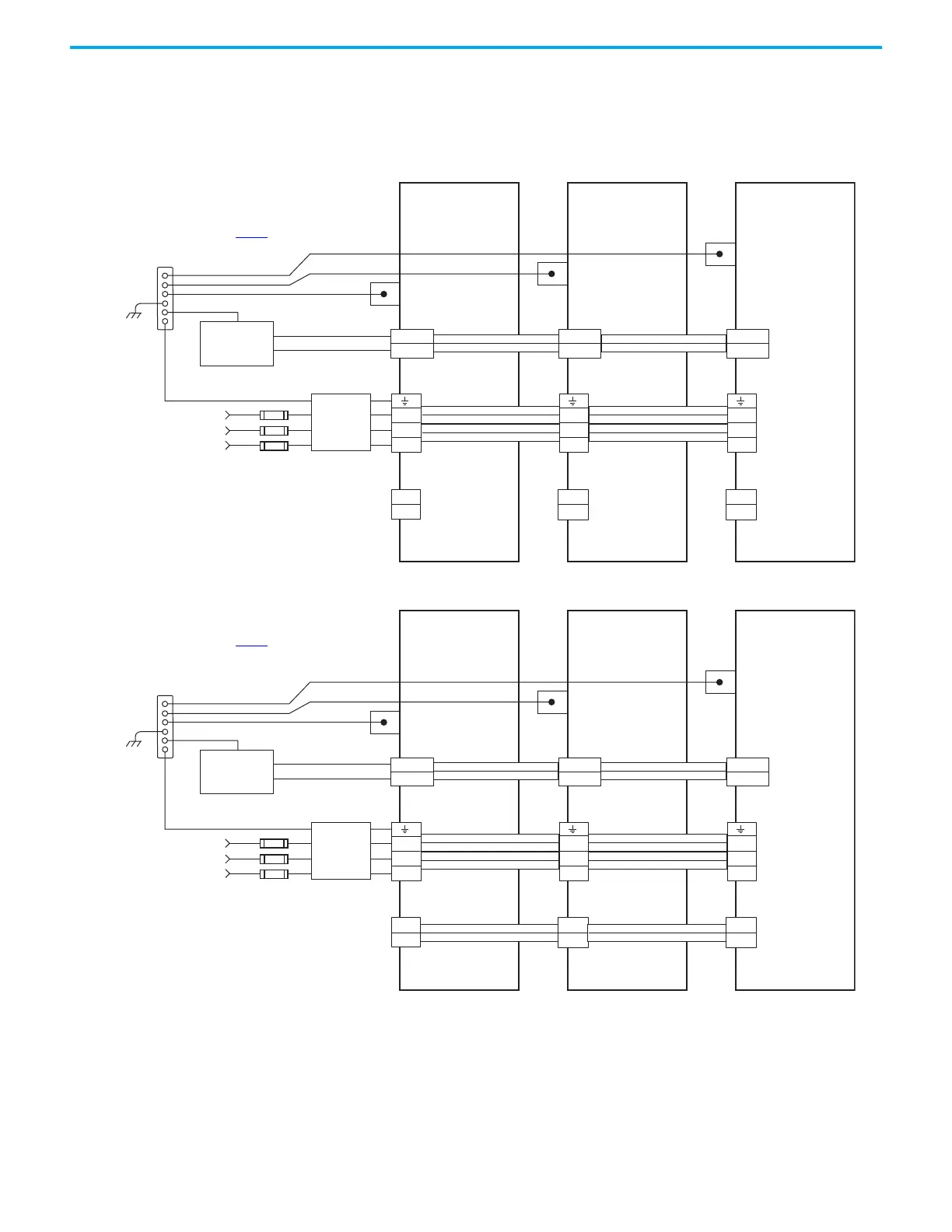

Figure 92 - Kinetix 5500 Drives with Shared AC Bus
Figure 93 - Kinetix 5500 Drives with Shared AC/DC Bus
