Chapter 5 Connect the Kinetix 5500 Drive System
Remove the Ground Screws
in Select Power
Configurations
Removing the ground screws involves gaining access, opening the sliding
door, and removing the screws.
Removing the ground screws in multi-axis configurations is best done when
each drive is removed from the panel and placed on its side on a solid surface.

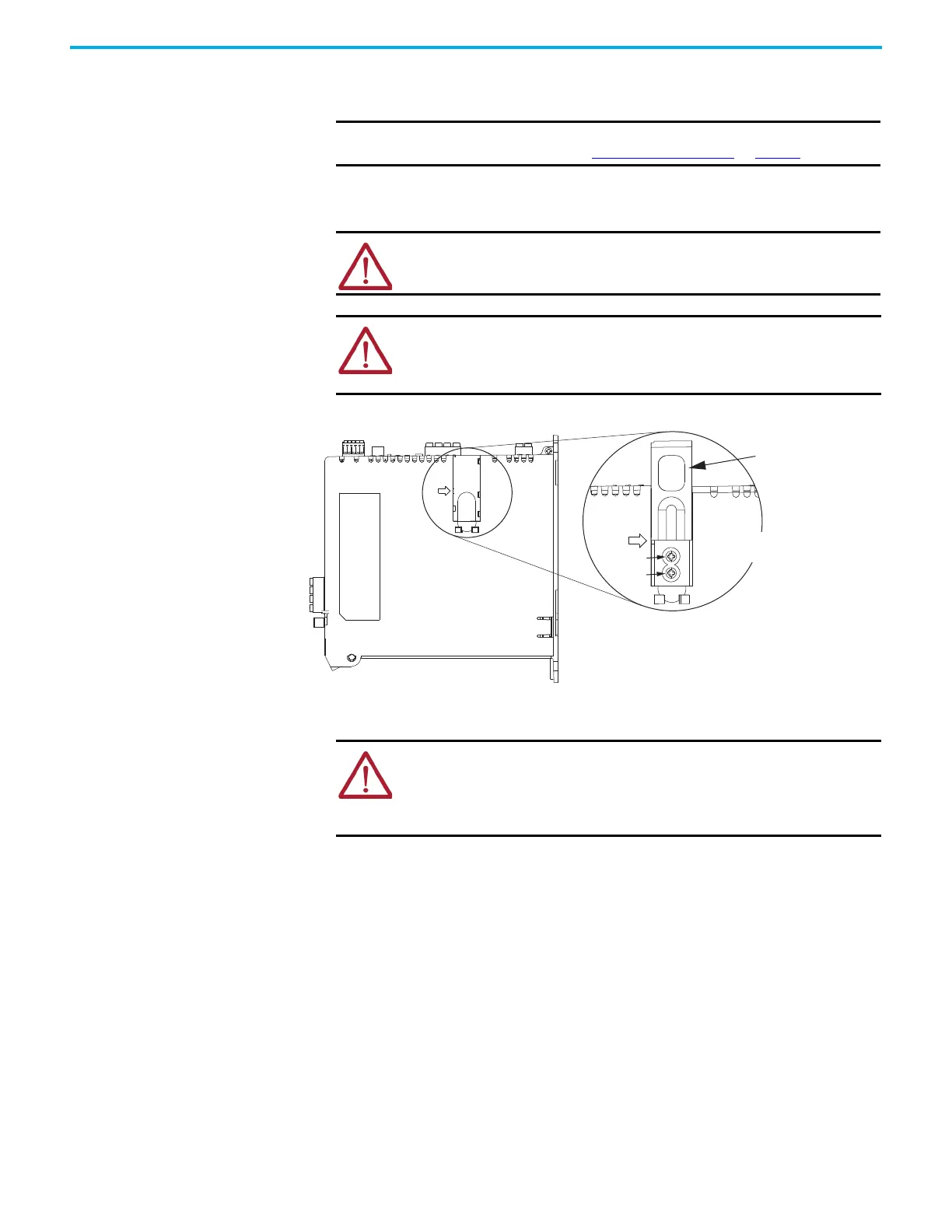

Figure 42 - Remove the Ground Screws
IMPORTANT If you have grounded-wye power distribution, you do not need to remove
the ground screws. Go to Ground the Drive System
on page 74.
ATTENTION: Because the unit no longer maintains line-to-neutral voltage
protection, the risk of equipment damage exists when you remove the
ground screws.
ATTENTION: To avoid personal injury, the ground screws access door must
be kept closed when power is applied. If power was present and then
removed, wait at least 5 minutes for the DC-bus voltage to dissipate and
verify that no DC-bus voltage exists before accessing the ground screws.
Ground screws installed for grounded power configuration
(screws installed is default setting).
• Remove both screws for ungrounded, corner-grounded, and
impedance-grounded power for three-phase operation
• Remove only the AC screw for single-phase operation
Ground Screws
Access Door
Kinetix 5500 Drive
(side view)
Lift door to meet
arrow at left.
AC Screw
DC Screw
ATTENTION: Risk of equipment damage exists. The drive ground
configuration must be accurately determined. Leave the ground screws
installed for grounded power configurations (default). Remove the screws
for ungrounded, corner-grounded, and impedance-grounded power
configurations.
