128 Rockwell Automation Publication 2198-UM001M-EN-P - November 2022
Chapter 6 Configure and Start the Kinetix 5500 Drive System

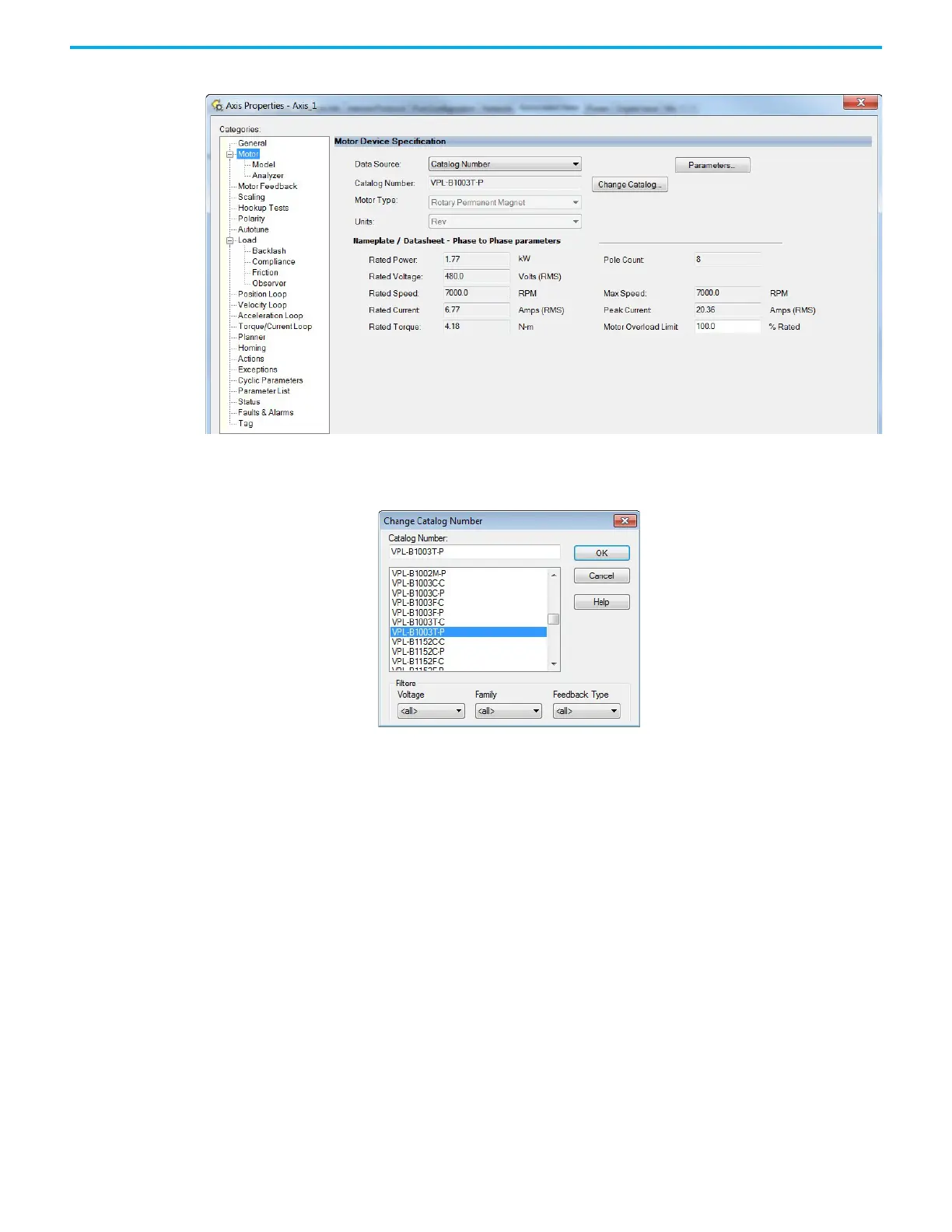

The Motor Device Specification dialog box appears.
7. From the Data Source pull-down menu, choose Catalog Number.
8. Click Change Catalog.
The Change Catalog Number dialog box appears.
9. Select the motor catalog number appropriate for your application.
To verify the motor catalog number, refer to the motor nameplate.
10. To close the Change Catalog Number dialog box, click OK.
11. Click Apply.
Motor data specific to your motor appears in the Nameplate / Datasheet -
Phase to Phase parameters field.
