Rockwell Automation Publication 2198-UM001M-EN-P - November 2022 135
Chapter 6 Configure and Start the Kinetix 5500 Drive System

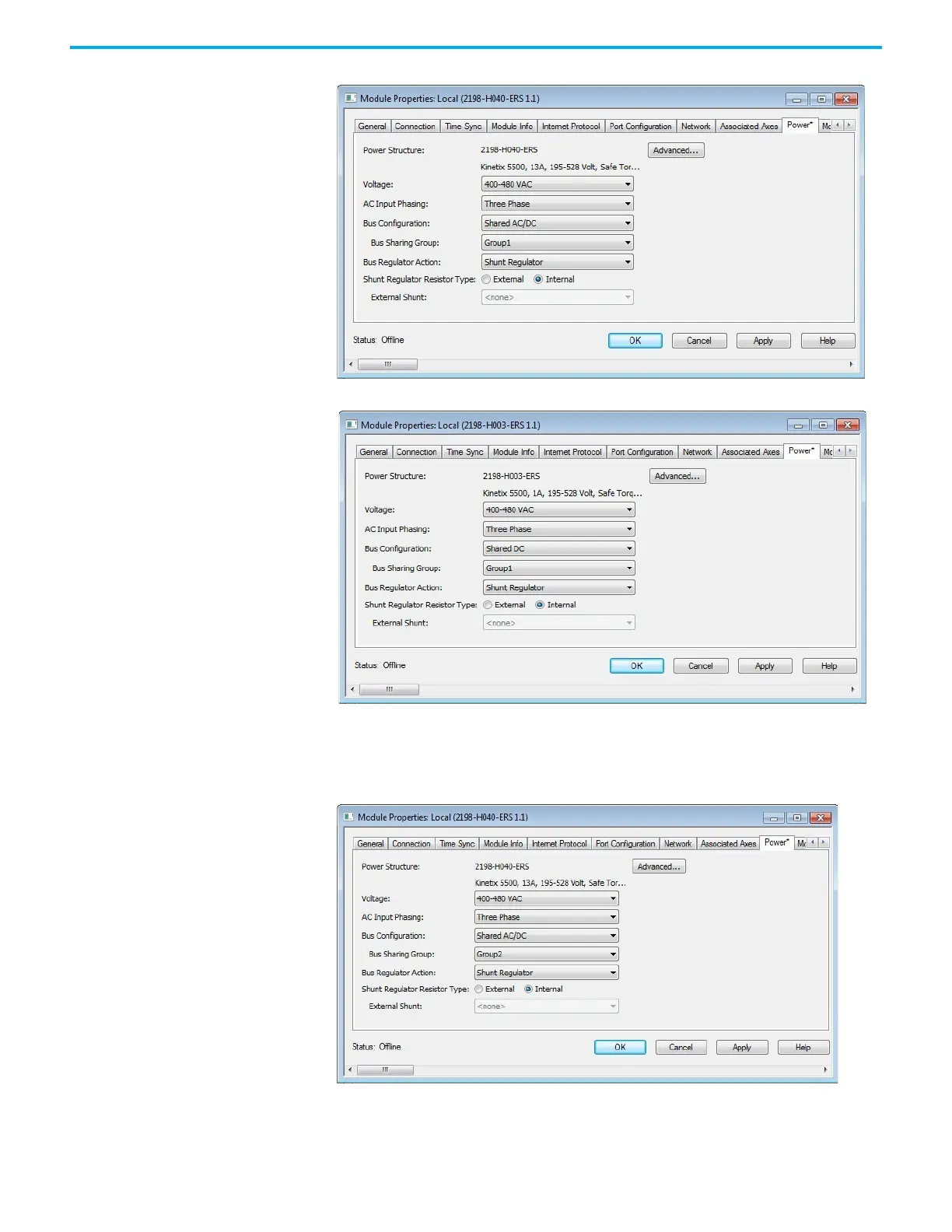

Figure 66 - Group 1 Converter Drives Configuration
Figure 67 - Group 1 Inverter Drives Configuration
Group 2 is a shared DC (common-bus) configuration. The Bus Configuration
for the leader drive is Shared AC/DC. The Bus Configuration for the follower
drives is Shared DC.
Figure 68 - Group 2 Leader Drive Configuration
