Setting Description
Relative Cooling ends when the actual temperature has
fallen to a temperature that is a certain percentage
of the setpoint temperature. This proportional cool-
ing value can be set in the Settings menu,
menu number105.
Setpoint =180°C, cooling value =60% → cooling
phase ends when actual temperature ≤108°C
Time Cooling ends when a time, specified in sec, has
elapsed. In this case, the actual temperature is ir-
relevant. The cooling time can be set in the Set-
tings menu, menu number105.
Different cooling
modes
Actual temperature
START signal
T
t
t
0
0
absolute
relative
Time
of setpoint
T
T
X %
t
0
K
t
3
t = Cooling phase in °C
3
t = Cooling phase in %
3
Cooling mode
T
t
0
t
3
t = Cooling phase in seconds
3
T
t
0
t
3

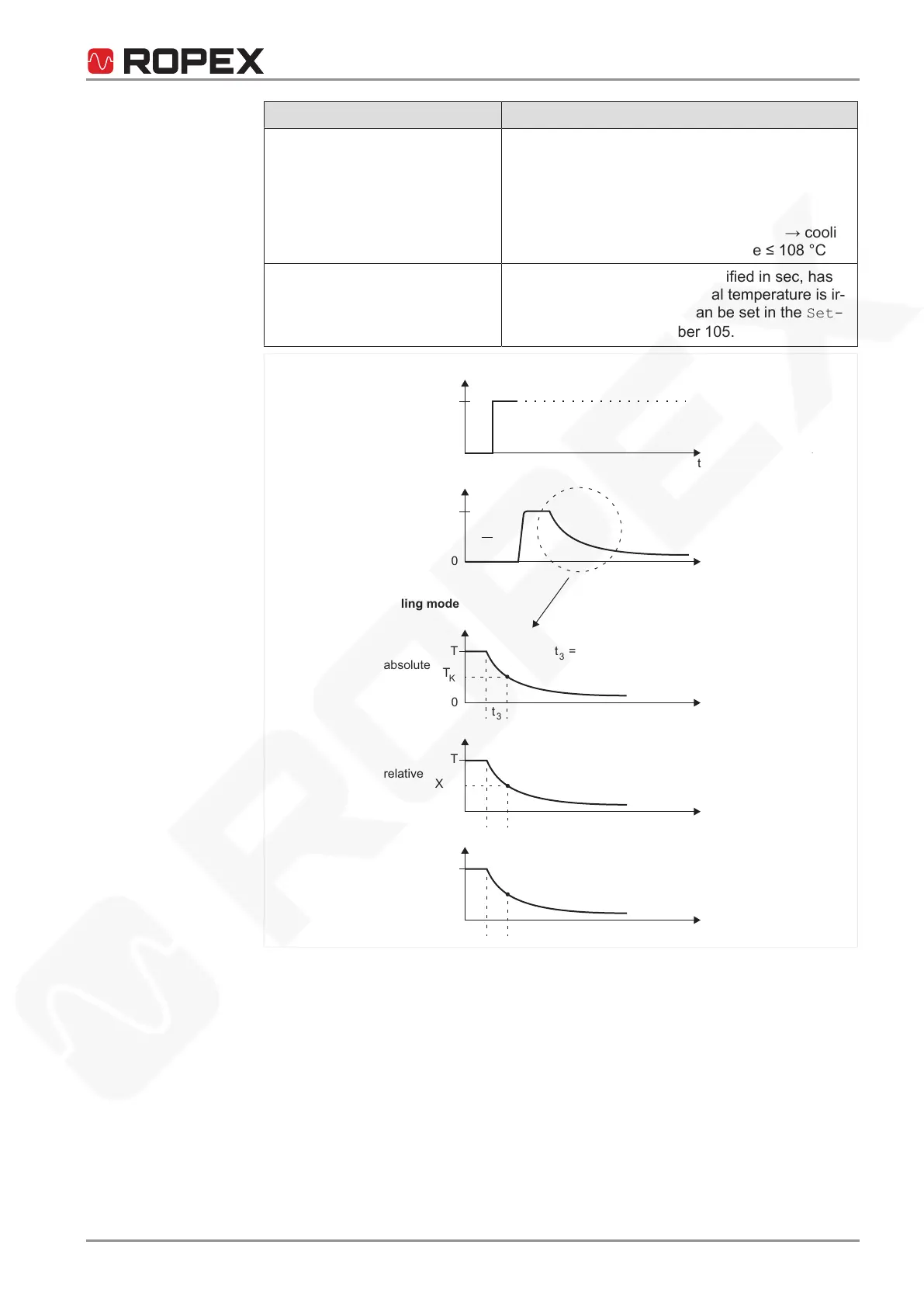

Illustration27: Setting cooling mode
8.6.5 Setting cooling value
Once the cooling phase has been configured in the Machine menu, menu num-
ber402, the respective parameters can be specified in the Settings menu, menu
number105.
Possible settings
The settings that can be made in the Settings menu, menu number105 are a factor
of the selection made in the Machine menu, menu number402. Settings made in the
Settings menu, menu number105 are no longer valid when changes are made in
the Machine menu, menu number402.
The following settings can be made in the Machine menu, menu number402:
