Rosemount 2088 - Page 44

34
Reference Manual
00809-0100-4108, Rev CA
Hardware Installation
March 2017
Hardware Installation

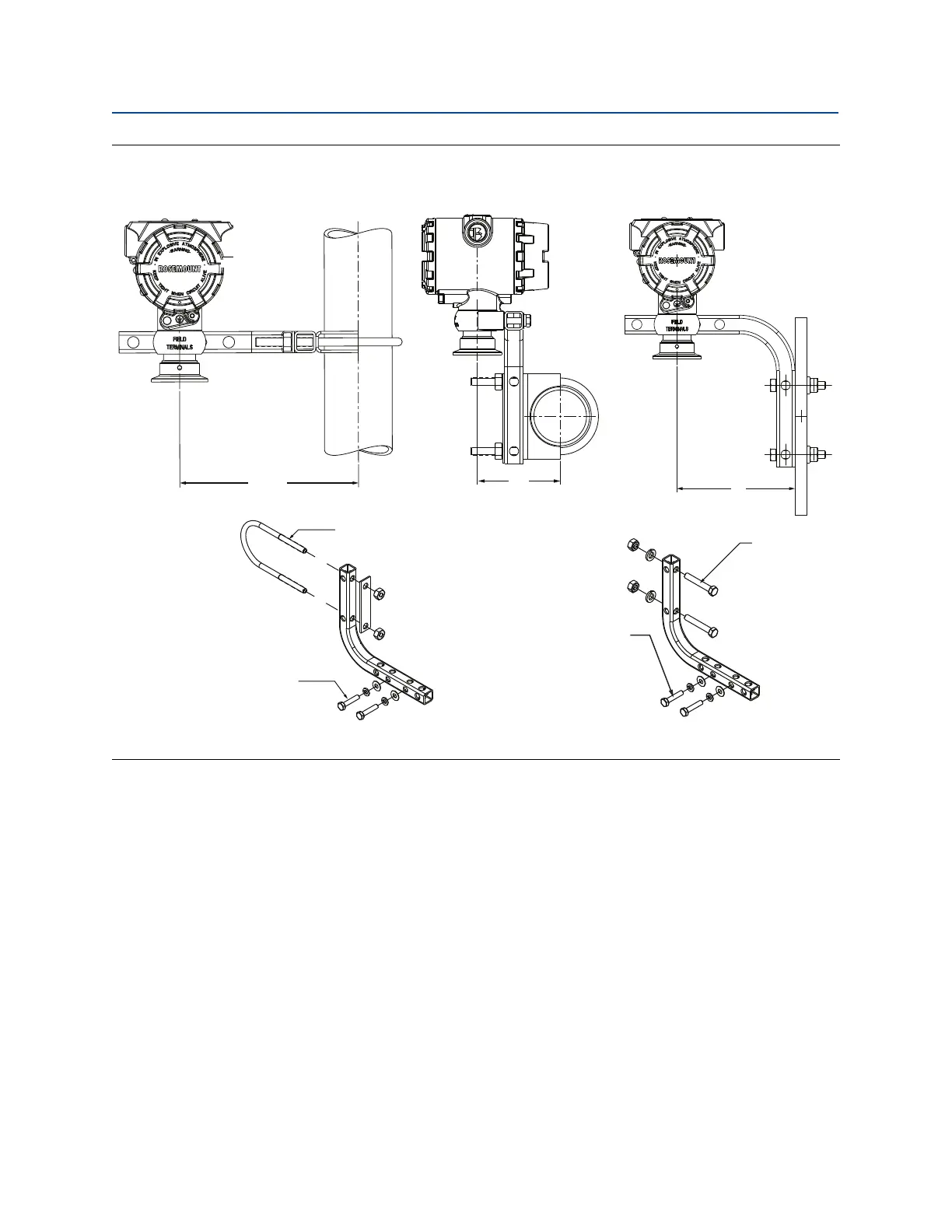

Figure 3-3. Mounting Bracket Option Code B4
Dimensions are in inches (millimeters).
Pipe mounting Panel mounting
2-in. U-Bolt
for pipe mounting
(clamp shown)
¼ × 1¼ Bolt
for transmitter mounting
(not supplies) 1.42 (36)
5.97 (152)
× 1½ Bolt
for panel mounting
(not supplies)
5
⁄
16
¼ × 1¼ Bolt
for transmitter mounting
(not supplies) 1.42 (36)
2.97
(75)
4.78
(121)
