Rotax 125 Micro MAX User Manual

DK00027.fm
REPAIR MANUAL
BRP-Powertrain
Effectivity: 125 MAX/125 Junior MAX/125 Mini
MAX/125 Micro MAX
Edition 2 / Rev. 0
Chapter 5
Page 19
December 01/2010

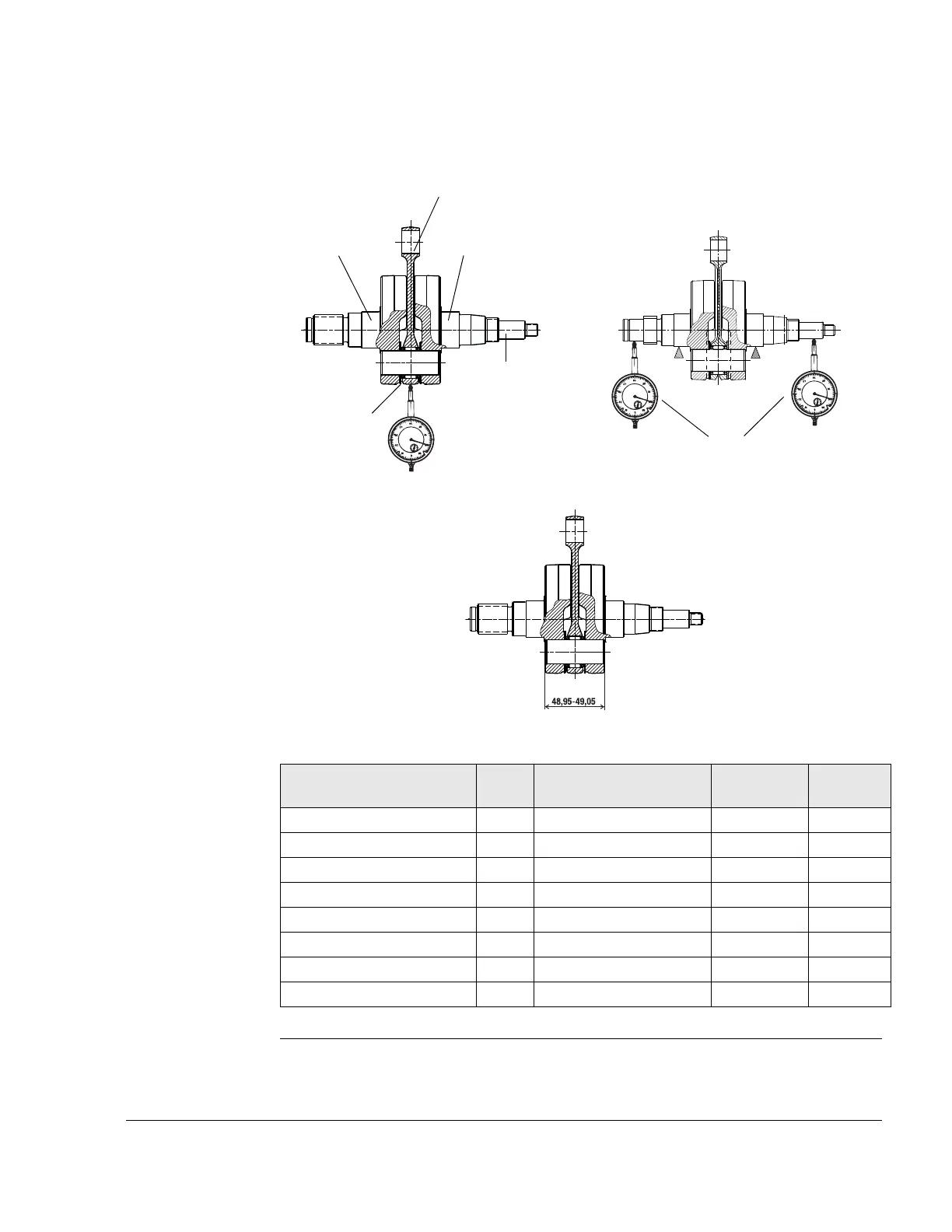

Graphic
Crankshaft
Figure 11 K00015, K00016, K00017
Description Code New dimension Wear limit
Measured
value
Main bearing seat CS01 29.99 mm - 30.005 mm 29.94 mm
Clutch bearing seat CS02 14.98 mm - 15.003 mm 14.95 mm
Piston pin bearing seat CS03 18.99 mm - 19.005 mm 19.015 mm
Con rod bearing axial play CS04 1.0 mm 1.3 mm
Con rod bearing radial play CS05 0.05 mm 0.08 mm
Stroke of crankshaft CS06 0.0 mm - 0.015 mm 0.03 mm
Distance of crank webs CS07 48.95 mm - 49.05 mm 49.05 mm
Thrust washer 1.0 mm 0.85 mm
CS 01
CS 01
CS 02
CS 03
CS 04
CS 05
CS 06
CS 07
