DK00029.fm
REPAIR MANUAL
BRP-Powertrain
Effectivity: 125 MAX/125 Junior MAX/125 Mini
MAX/125 Micro MAX
Edition 2 / Rev. 0
Chapter 7
Page 31
December 01/2010
4.6) Filling gearbox with oil
General NOTES: The cyl. screw (2) functions as an oil level screw. With the
engine in a horizontal position (without the engine bracket)
add gear oil until it runs out of the cyl. screw (2). This cor-
responds to the filling volume of 100 cm
3
.
Special tools The following special tools and equipment are required:

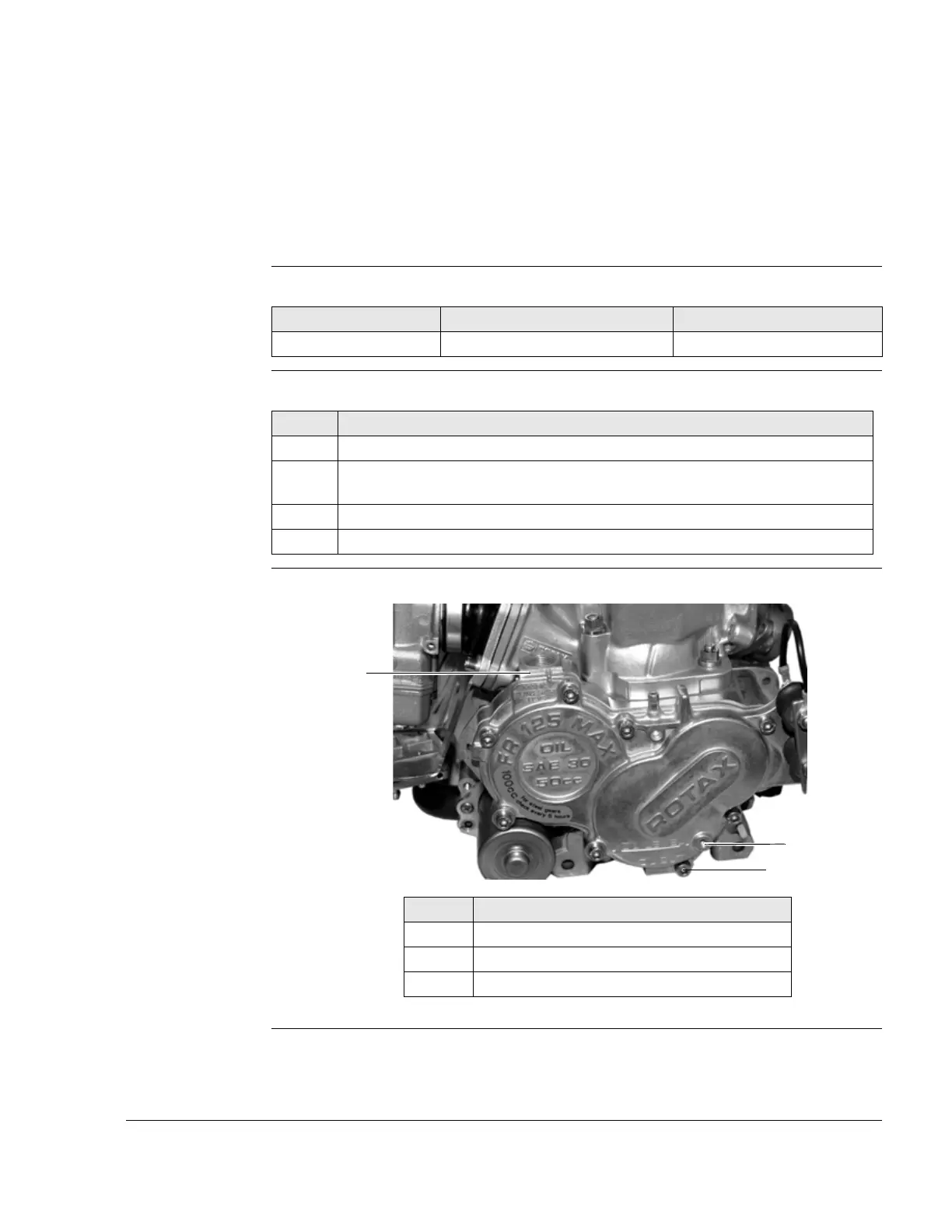

Instructions See Figure 19.
Graphic Adding oil.
Figure 19
K00136
Part number Description Use
n.e Gear oil specification SAE 30 Gearbox
Step Procedure
1 Remove vent screw (1).
2 Add the specified volume of gear oil of 100 cm
3
through the filling hole in the
housing.
3 Use gaskets for the cyl. screws (2 = oil level plug) and (3 = oil drain plug).
4 Screw in the vent screw (1) handtight.
Part Function
1 Vent screw
2 Oil level plug
3 Oil drain plug
