REPAIR MANUAL
BRP-Powertrain
Effectivity: 125 MAX/125 Junior MAX/125 Mini
MAX/125 Micro MAX
Edition 2 / Rev. 0
Chapter 3
Page 8
December 01/2010
2.3) Removal of the fuel line
Safety
instructions

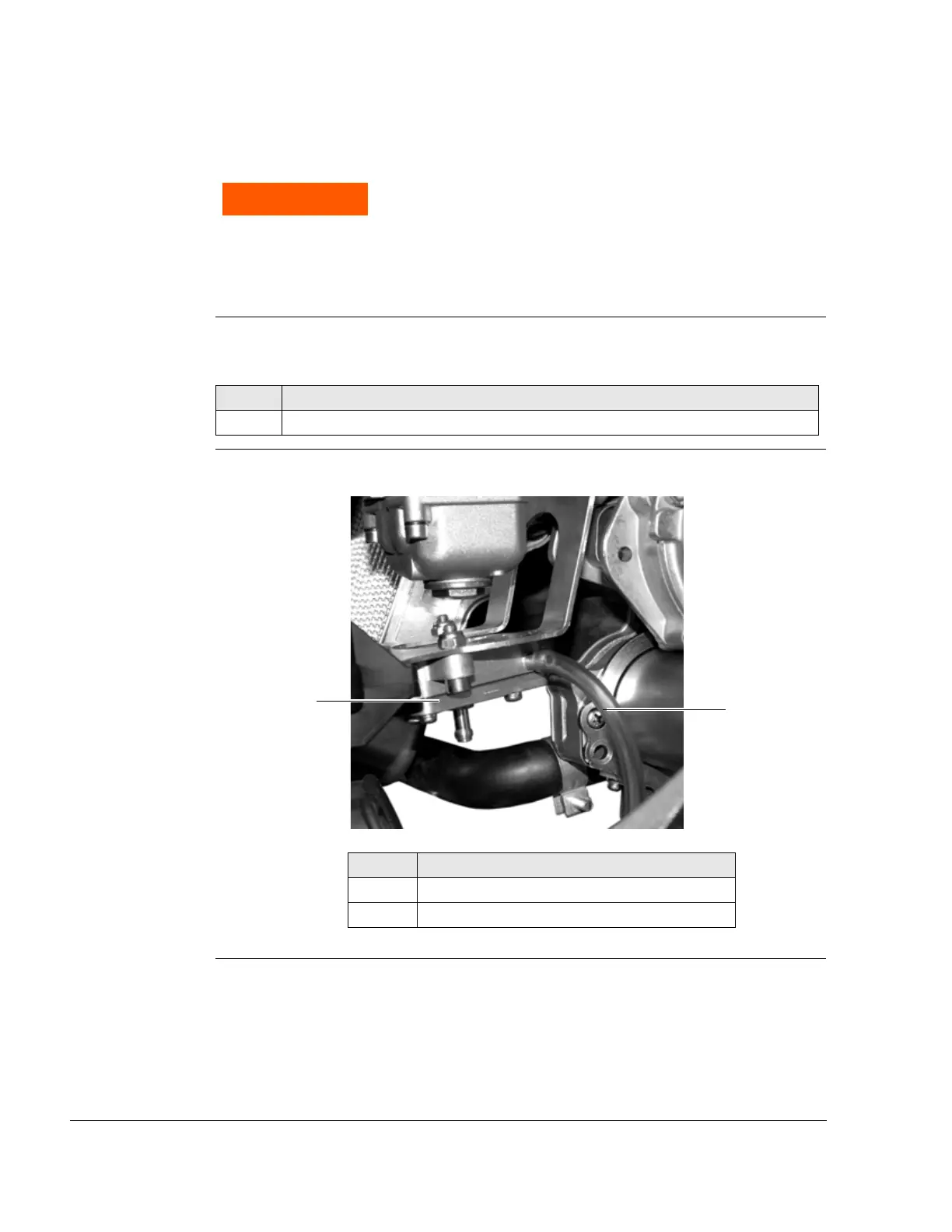

Instructions See Figure 4.
Proceed as follows to remove the fuel hose:
Graphic Fuel hose
Figure 4 K00030
Danger of explosion and ignition!
Overflowing and spilt gasoline must be absorbed im-
mediately with a binding agent and correctly disposed
of. Do not work with open flames and sources of igni-
tion. Fuel must not be allowed to come into contact
with hot engine parts and components.
Step Procedure
1 Pull off fuel line (1) between fuel tank and fuel pump from the fuel pump (2).
Part Function
1 Fuel line
2 Fuel pump
