Rotax 125 Micro MAX User Manual

DK00028.fm
REPAIR MANUAL
BRP-Powertrain
Effectivity: 125 MAX/125 Junior MAX/125 Mini
MAX/125 Micro MAX
Edition 2 / Rev. 0
Chapter 6
Page 12
December 01/2010
3.2) Checking fuel pump
General NOTES: Only the complete membrane and gasket set of the fuel
pump can be replaced.
Fuel pump gasket set: part no. 296165.
Instructions See Figure 7.

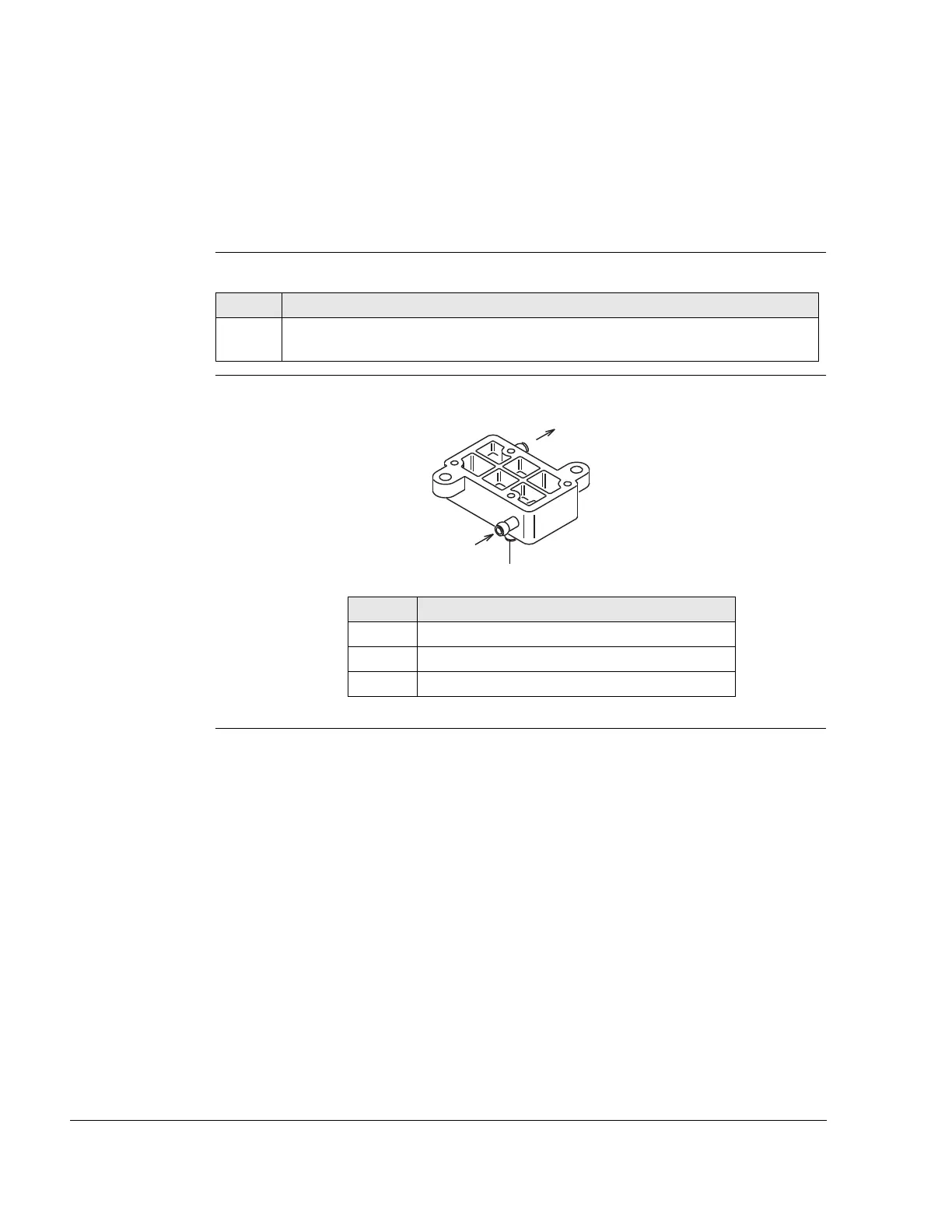

Graphic Fuel pump
Figure 7 K00065
Step Procedure
1 Check the condition of the impulse pipe (1), fuel line (2) and fuel overflow line
(3) and in case of doubt replace.
Part Function
1 Impulse pipe
2 Fuel line
3 Fuel overflow line
2
3
1
