REPAIR MANUAL
BRP-Powertrain
Effectivity: 125 MAX/125 Junior MAX/125 Mini
MAX/125 Micro MAX
Edition 2 / Rev. 0
Chapter 7
Page 30
December 01/2010
4.5) Installing electric starter

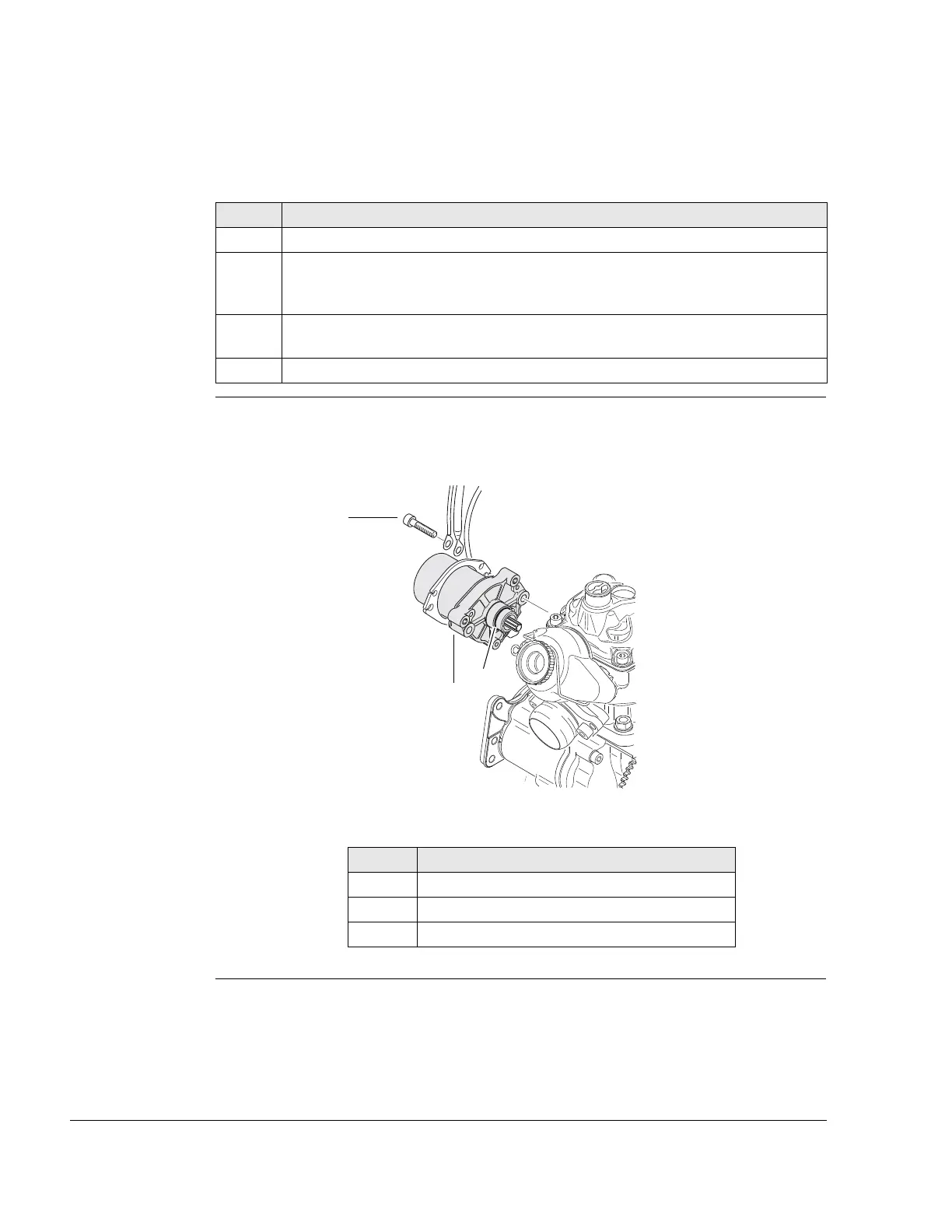

Instructions See Figure 18.
Graphic Electric starter
Figure 18
K00078
Step Procedure
1 Grease O-ring (1) on the center of the electric starter.
2 Push the electric starter (1) into the centering of the housing by rotating it back
and forth until the teeth of the electric starter are meshed with the teeth of the
starter reduction gear assembly.
3 Fasten the electric starter to the housing with 2 cyl. screws (2). Tightening
torque 10 Nm (90 in.lb).
4 Connect the electrical and the ground cable to the starter.
Part Function
1O-ring
2 Electric starter
3 Cyl. screw M6x35
2
3
1
