DK00029.fm
REPAIR MANUAL
BRP-Powertrain
Effectivity: 125 MAX/125 Junior MAX/125 Mini
MAX/125 Micro MAX
Edition 2 / Rev. 0
Chapter 7
Page 29
December 01/2010

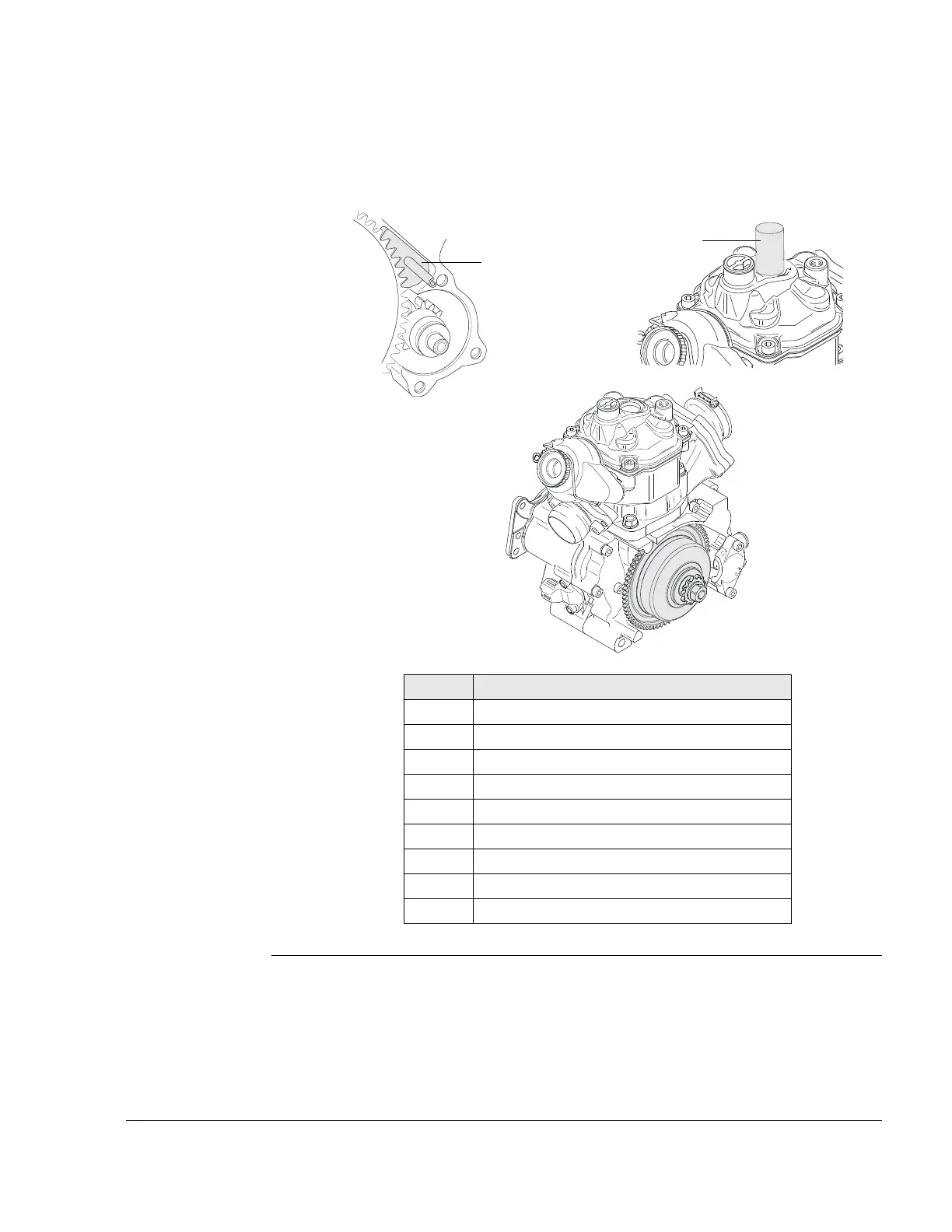

Figure 17 K00159,K00142,K00079,K00151,K00140
Part Function
1 Crankshaft
2 Thrust washer 15.2/25/1
3 O-ring 12x2.5
4 Needle cage 15x19x17
5 Clutch drum
6Hex nut
7 Thrust washer 10/22/1.5
8 Locking tool
9 Fixation tool assembly
9
8
