DK00026.fm
REPAIR MANUAL
BRP-Powertrain
Effectivity: 125 MAX/125 Junior MAX/125 Mini
MAX/125 Micro MAX
Edition 2 / Rev. 0
Chapter 4
Page 30
December 01/2010
4.4) Installation of exhaust socket
See Figure 21.
Special tools The following special tools and equipment are required:
Instructions Proceed as follows to install the exhaust socket:

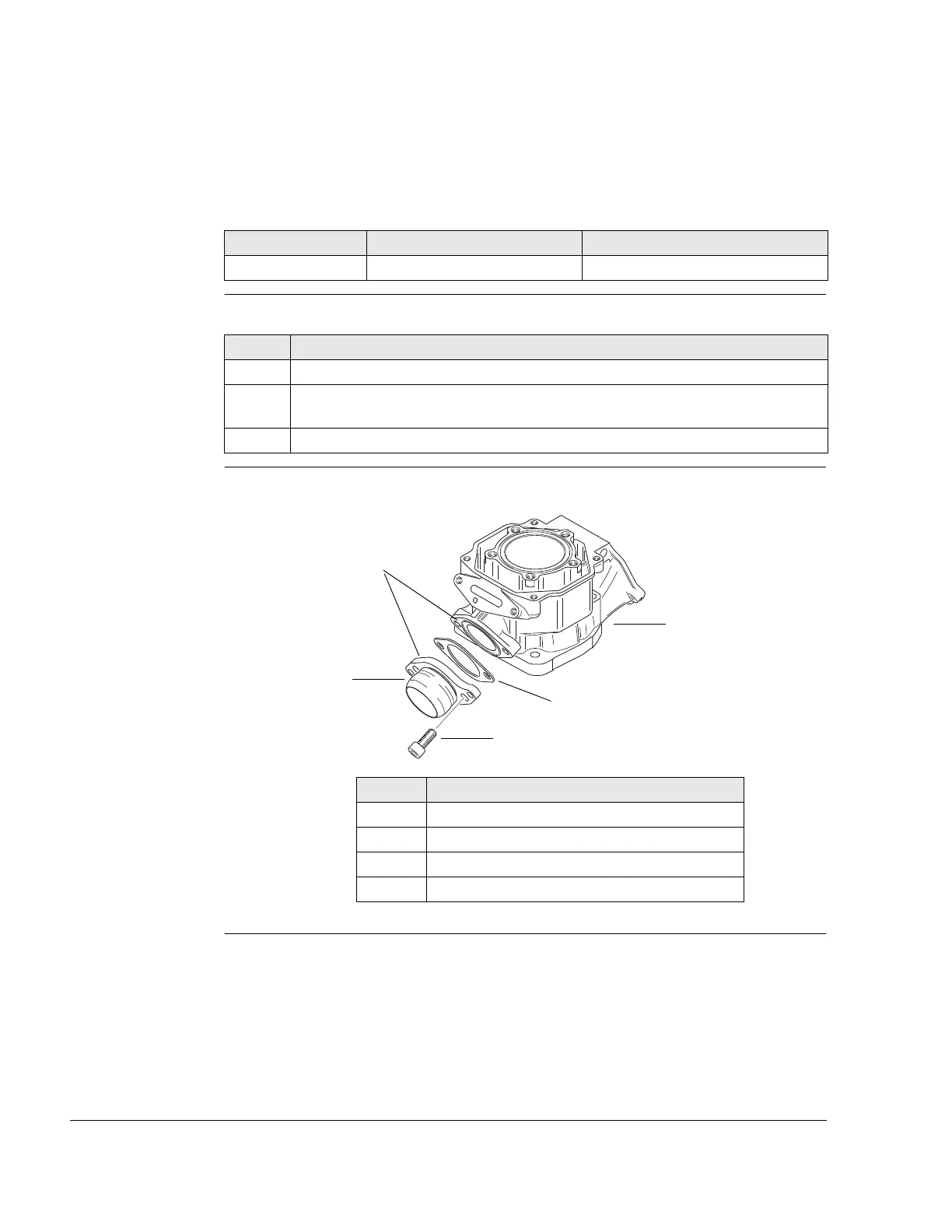

Graphic Exhaust socket
Figure 21 K00024
Part number Description Use
Part no. 297386 SILASTIC 732 Gasket
Step Procedure
1 Coat both sidesof the gasket with SILASTIC.
2 Fasten the exhaust socket (1) to the cylinder (4) with a new gasket (2) by
means of 2 cyl. screws (3). Tightening torque 20 Nm (177 in.lb).
3 Check that the exhaust port is tightly seated on the cylinder.
Part Function
1 Exhaust socket
2 Gasket
3 Cyl. screws M8x20
4 Cylinder
