Rotax 125 Micro MAX User Manual

DK00029.fm
REPAIR MANUAL
BRP-Powertrain
Effectivity: 125 MAX/125 Junior MAX/125 Mini
MAX/125 Micro MAX
Edition 2 / Rev. 0
Chapter 7
Page 14
December 01/2010
NOTES
3.1.2) Checking starter reduction gear assembly
General NOTES: In one direction of rotation the two gear wheels can be
rotated together, in the other direction of rotation the two
gears move apart and finally lock.

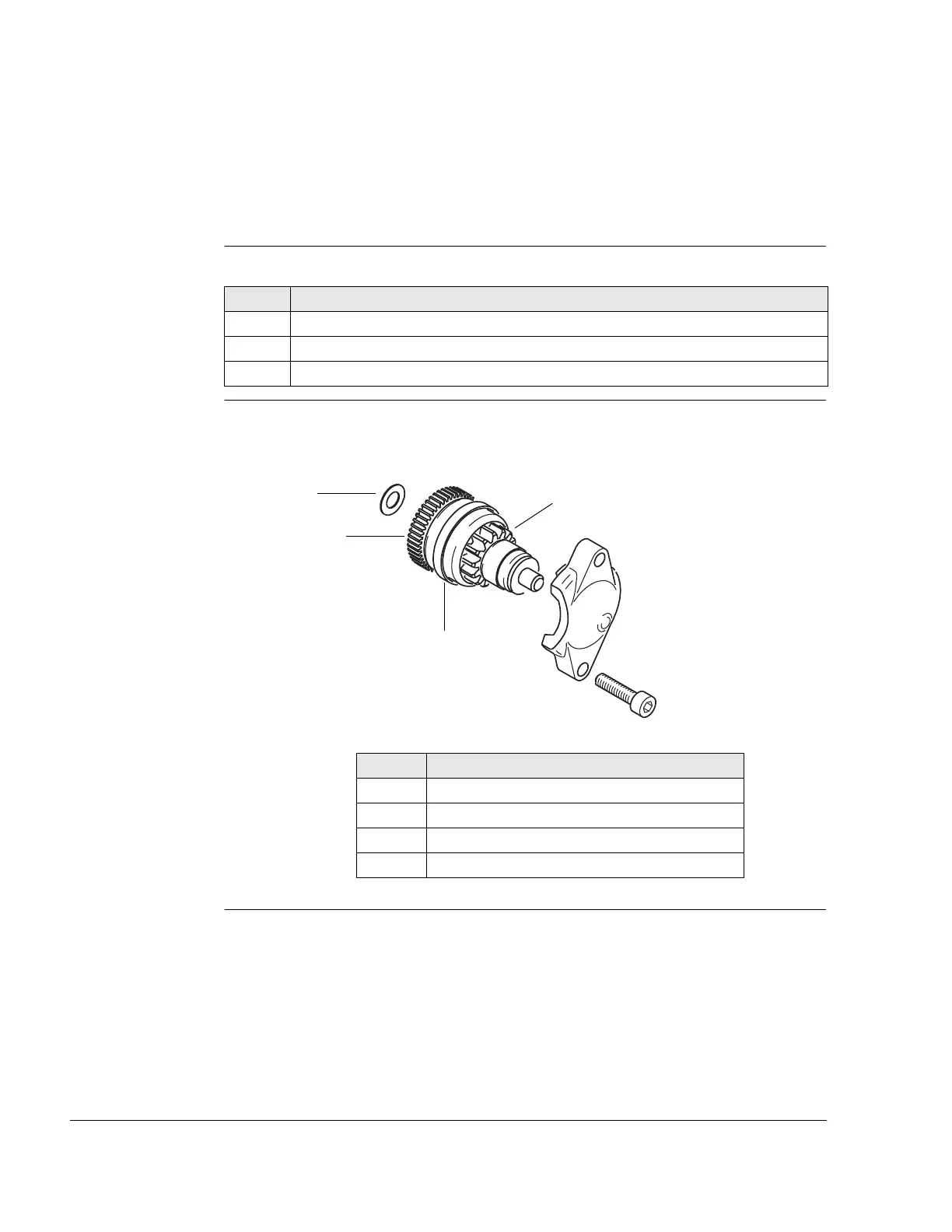

Instructions See Figure 8.
Graphic Starter reduction gear assembly
Figure 8 K00006
Step Procedure
1 Cleaning starter reduction gear assembly (1).
2 Check the gear wheels (2) and (3) for wear.
3 Check the operation of the starter reduction gear assembly.
Part Function
1 Starter reduction gear assembly
2 Gear wheel
3 Gear wheel
4 Thrust washer
2
1
3
4
