REPAIR MANUAL
BRP-Powertrain
Effectivity: 125 MAX/125 Junior MAX/125 Mini
MAX/125 Micro MAX
Edition 2 / Rev. 0
Chapter 3
Page 11
December 01/2010
2.6) Positioning the engine on the trestle mounting plate
General See Figure 7.
Special tools The following special tools and equipment are required:
Instructions Proceed as follows to position the engine on the trestle mounting plate:

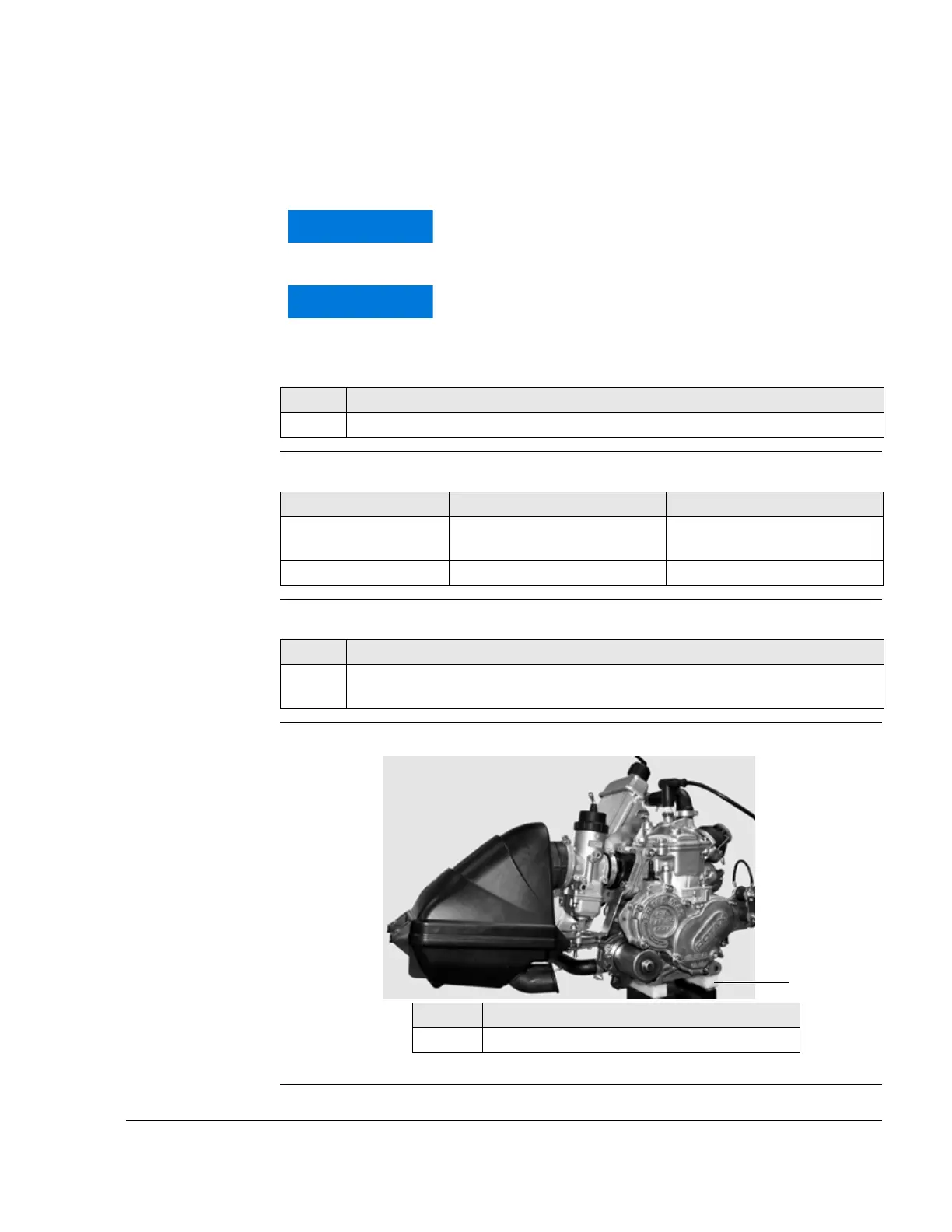

Graphic Trestle mounting plate
Figure 7
K00108

WARNING
NOTICE
Do not use flammable liquids and aggressive cleaning
agents to clean the engine.

WARNING
NOTICE
Cleaning the engine removes fuel and oil residues and
other environmentally damaging substances. The
waste liquid must be caught and disposed of by an
environmentally compatible method.
Step Procedure
1 Engine cleaning
Part number Description Use
Part no. 877390 Trestle mounting plate
(trestle support)
Engine
Part no. 676052 Fixing plate for engine Engine
Step Procedure
1 Unscrew the base plate from the engine, position the engine on the trestle
mounting plate (1), and fix it securely with the 4 fixing screws.
Part Function
1 Trestle mounting plate
1
