REPAIR MANUAL
BRP-Powertrain
Effectivity: 125 MAX/125 Junior MAX/125 Mini
MAX/125 Micro MAX
Edition 2 / Rev. 0
Chapter 7
Page 15
December 01/2010
3.1.3) Checking the electric starter
General NOTES: If the electric starter is malfunctioning, the cause is gen-
erally that the two carbon brushed are worn or defective.
In this case all parts in the electric starter repair kit must
be renewed.
Instructions See Figure 9.

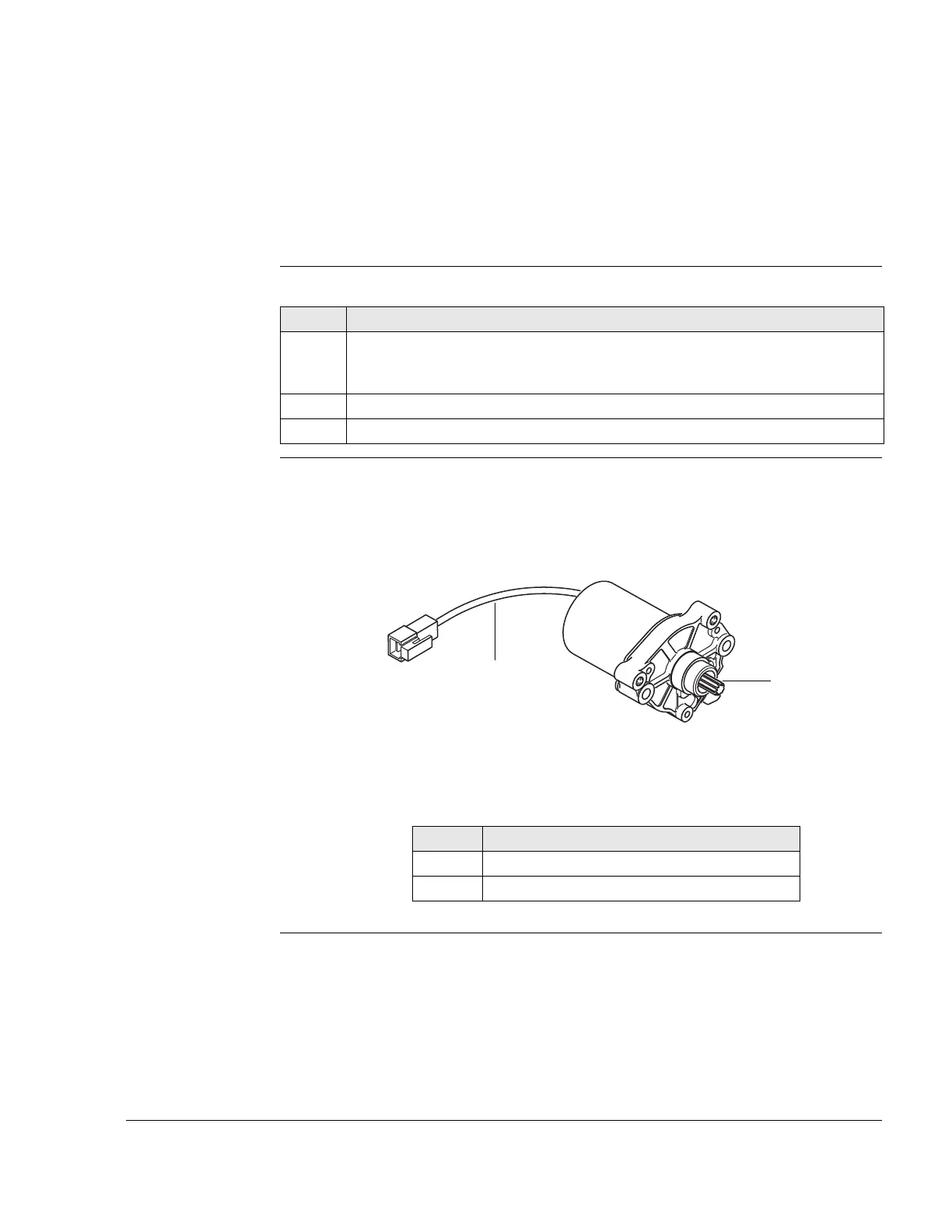

Graphic Electric starter
Figure 9 K00034
Step Procedure
1 Check starter cable (1).
If the starter cable is faulty, the starter cable assembly can be replaced.
2 Check parts of the electric starter.
3 Check teeth (2) for deformation and wear.
Part Function
1 Starter cable
2 Gear (teeth)
2
1
