REPAIR MANUAL
BRP-Powertrain
Effectivity: 125 MAX/125 Junior MAX/125 Mini
MAX/125 Micro MAX
Edition 2 / Rev. 0
Chapter 4
Page 8
December 01/2010
Figure 2 K00007, K00074
2.2.5) Removal of exhaust socket

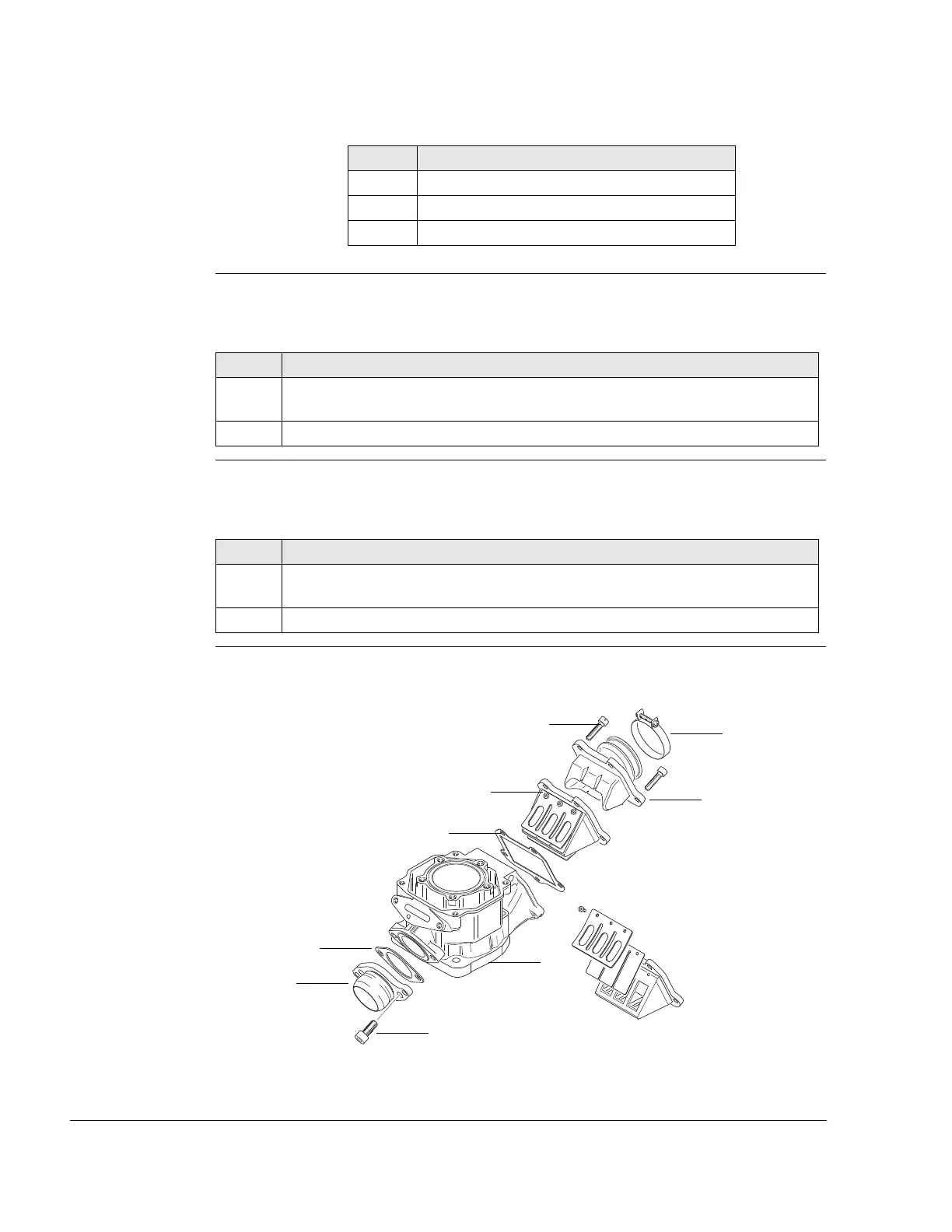

Exhaust socket See Figure 3.
2.2.6) Removal of the carburetor flange and reed valve
Carburetor
flange
See Figure 3.
Graphic Carburetor flange
14 Lock washer A8
15 O-ring 64x2
16 O-ring 23.3x2.4
Part Function
Step Procedure
1 Remove the exhaust socket (2) from the cylinder (1) by unscrewing the 2 cyl.
screws (3).
2 Remove the gasket (4).
Step Procedure
1 Remove the carburetor flange (5) with hose clamp (6) from the cylinder with
the 5 cyl. screws (7).
2 Remove the reed valve (8) and gasket (9) from the cylinder.
5
6
7
8
9
1
3
4
2
