Rotax 125 Micro MAX User Manual

DK00029.fm
REPAIR MANUAL
BRP-Powertrain
Effectivity: 125 MAX/125 Junior MAX/125 Mini
MAX/125 Micro MAX
Edition 2 / Rev. 0
Chapter 7
Page 16
December 01/2010
3.2) Electric starter repair kit
Special tools The following special tools and equipment are required:
Instructions See Figure 10.

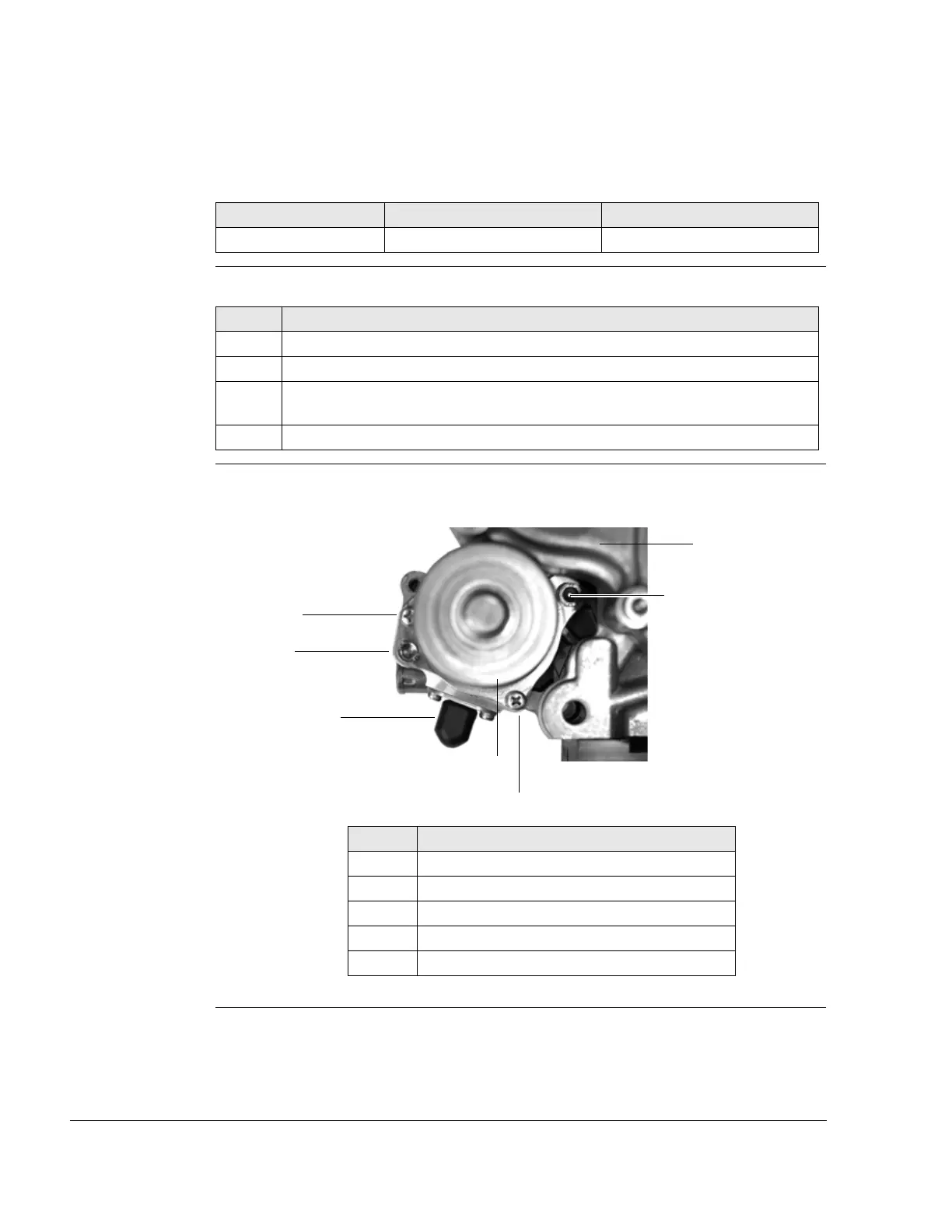

Graphic Electric starter
Figure 10 K00150
Part number Description Use
Part no. 281261 Electric starter repair kit Electric starter
Step Procedure
1 Disconnect electrical connection (1) from the starter (2).
2 Remove the ground cable.
3 Remove the starter housing from the crankcase and gearbox case (4) by
unscrewing 2 cyl. screws (3).
4 Unscrew the starter housing screws (5).
Part Function
1 Electrical feed
2 Electric starter
3 Cyl. screw
4 Gearbox case
5 Starter housing screws
1
3
2
3
4
5
5
