DK00031.fm
REPAIR MANUAL
BRP-Powertrain
Effectivity: 125 MAX/125 Junior MAX/125 Mini
MAX/125 Micro MAX
Edition 2 / Rev. 0
Chapter 9
Page 6
December 01/2010
Graphic
Exhaust system

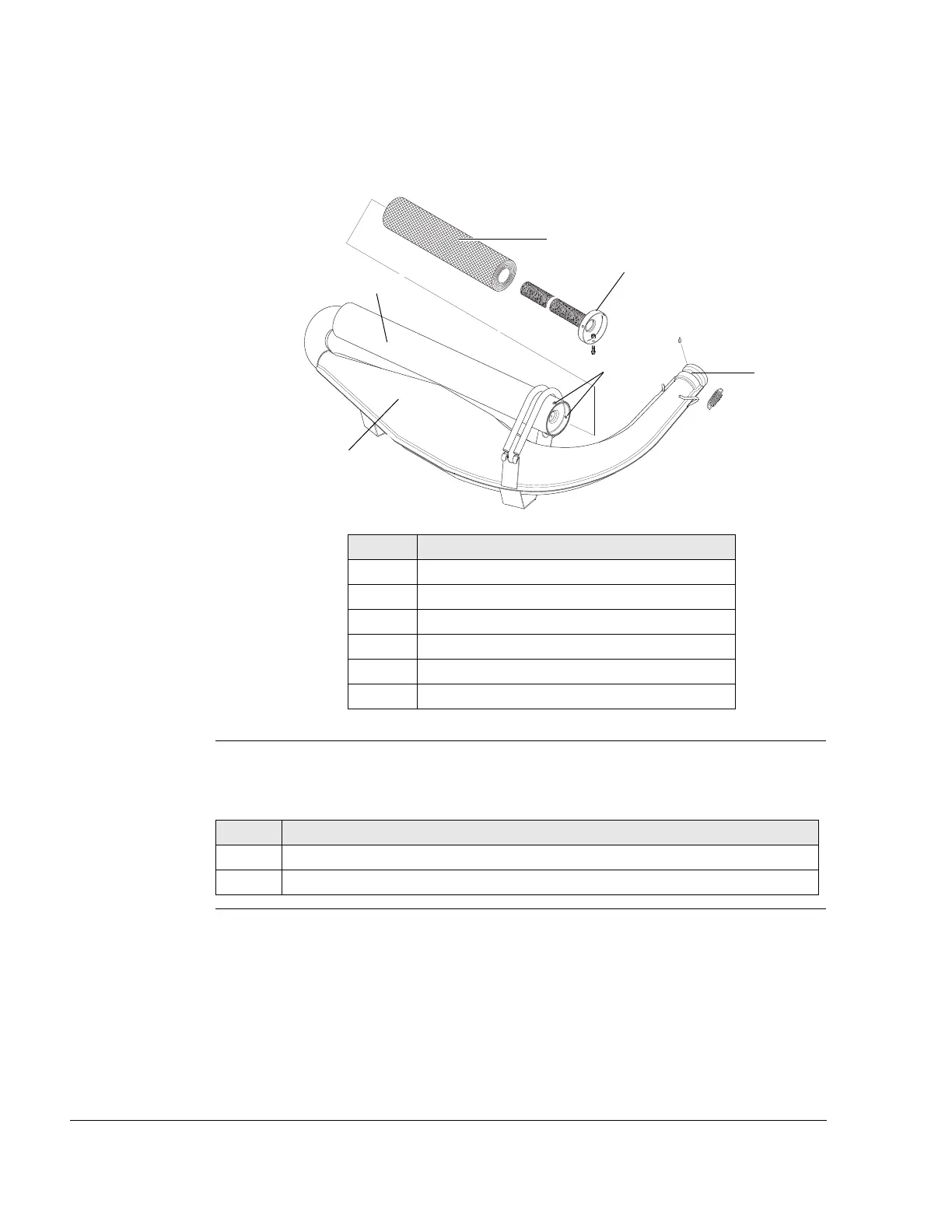

Figure 2 K00152
2.3) Assembling the exhaust system
Instructions See Figure 2.
Part Function
1 Exhaust system
2 Ball socket
3 Rivets
4Isolating mat
5 After-muffler
6 Cover
1
4
2
3
5
6
Step Procedure
1 Roll up new isolating mat (4) and insert into the after-muffler (5).
2 Install cover (6) and new rivets.
