DK00027.fm
REPAIR MANUAL
BRP-Powertrain
Effectivity: 125 MAX/125 Junior MAX/125 Mini
MAX/125 Micro MAX
Edition 2 / Rev. 0
Chapter 5
Page 36
December 01/2010

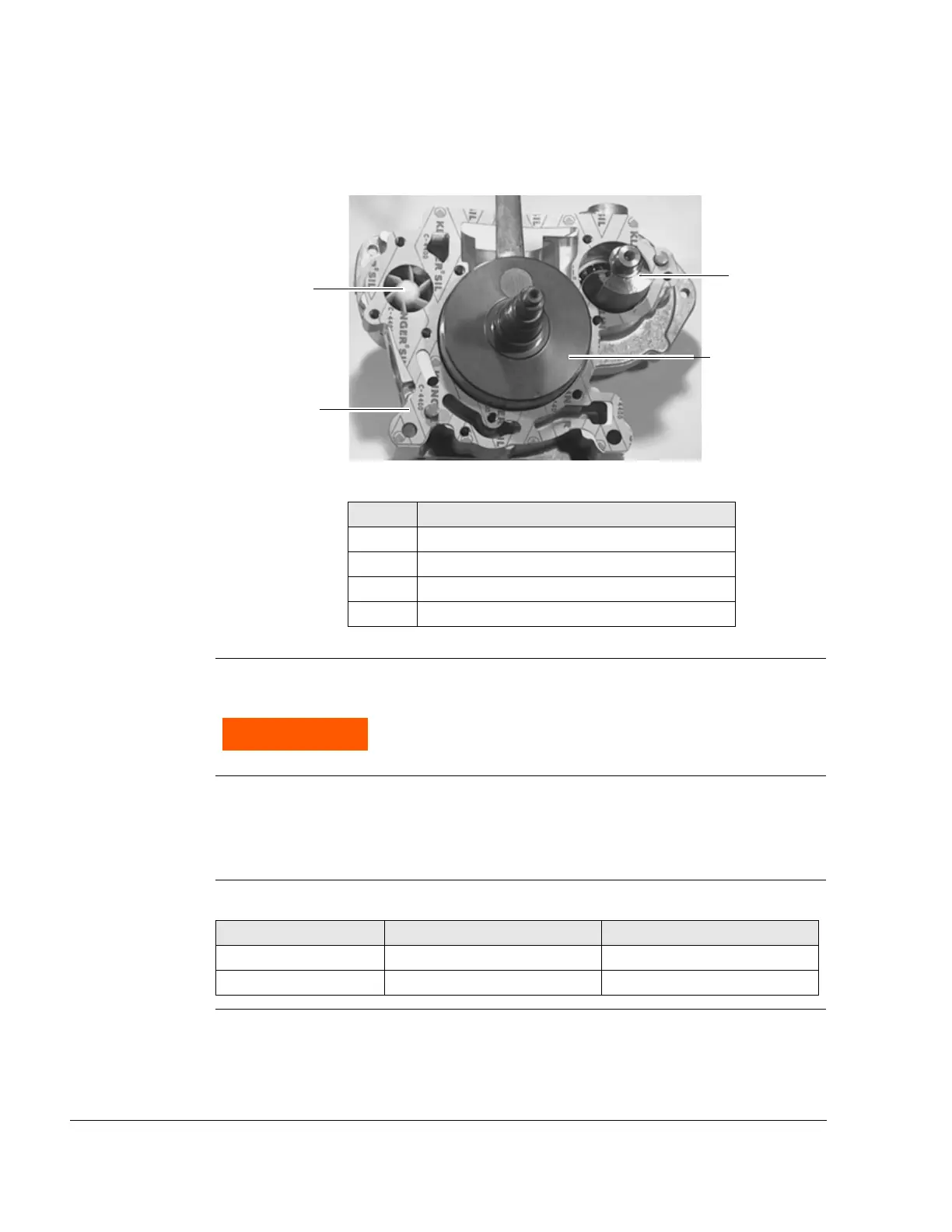

Graphic
Ignition end crankcase half
Figure 21 K00054
5.3) Screw case halves together
Safety
instructions
General NOTES: If the stud bolts for the cylinder are replaced, the long thread
end of the stud bolts must be screwed into the case and
locked with LOCTITE 243.
Tightening torque 10 Nm (90 in.lb).
Special tools The following special tools and equipment are required:
Part Function
1 Crankshaft
2 Balance shaft
3 Water pump shaft
4 Gasket
1
2
3
4
WARNING
WARNING
Danger of serious burns and scalding!
Wear safety gloves!
Part number Description Use
Part no. 877930 Trestle support assy. Crankcase
Part no. 676052 Fixing plate for engine Crankcase
