REPAIR MANUAL
BRP-Powertrain
Effectivity: 125 MAX/125 Junior MAX/125 Mini
MAX/125 Micro MAX
Edition 2 / Rev. 0
Chapter 7
Page 5
December 01/2010
2) Removal of the clutch and starter gear assembly
Safety
instructions
2.1) Oil draining
Instructions See Figure 2.

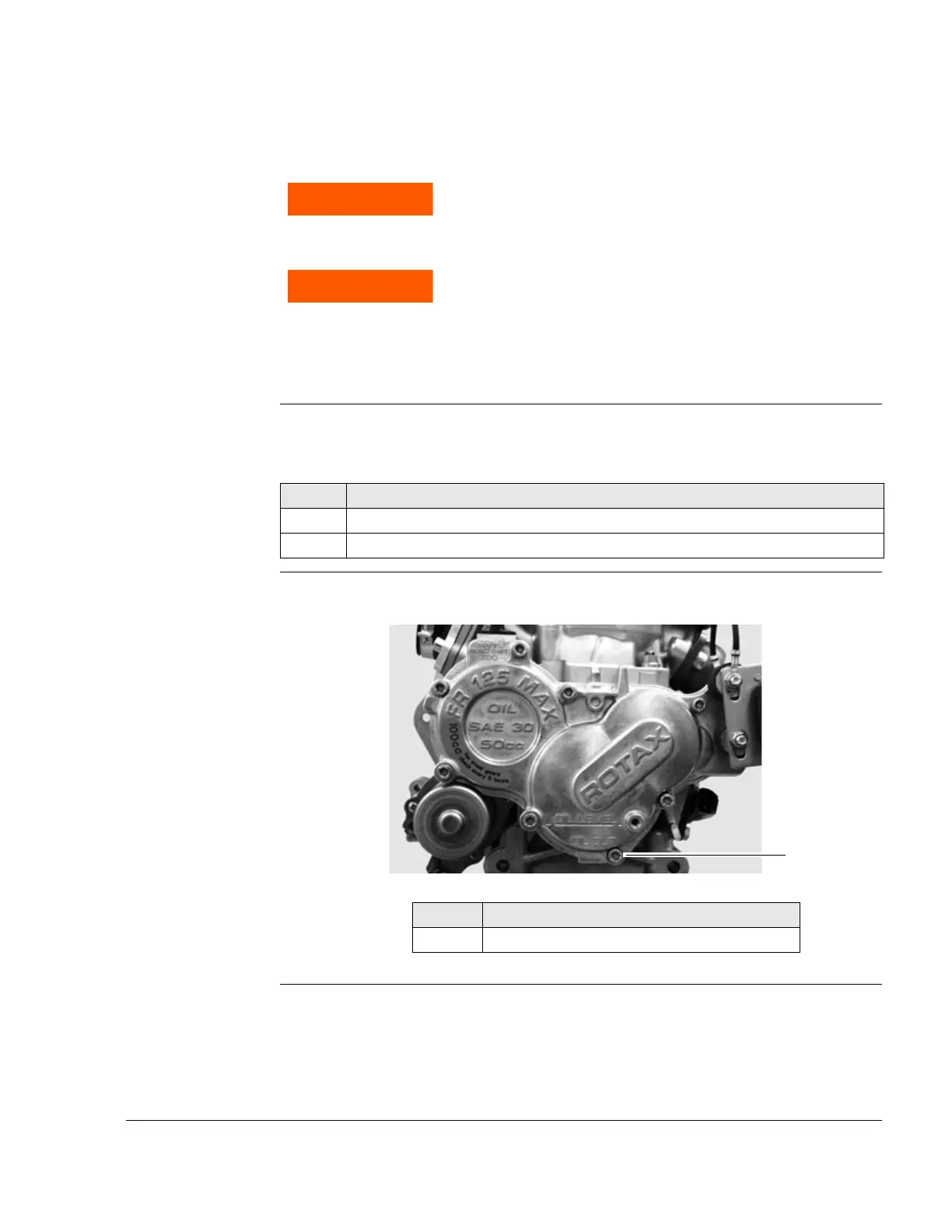

Graphic Oil draining
Figure 2 K00114
Danger of serious burns and scalding!
Allow engine to cool to ambient temperature before
starting work.
Danger of explosion and ignition!
Overflowing and split gasoline must be absorbed im-
mediately with a binding agent and correctly disposed
of. Do not work with open flames and sources of igni-
tion. Fuel must not be allowed to come into contact
with hot engine parts and components.
Step Procedure
1 Remove oil drain plug (1) with gasket from the crankcase and gearbox case.
2 Drain oil into a suitable vessel and dispose of it correctly.
Part Function
1 Oil drain plug
To Next Page
