REPAIR MANUAL
BRP-Powertrain
Effectivity: 125 MAX/125 Junior MAX/125 Mini
MAX/125 Micro MAX
Edition 2 / Rev. 0
Chapter 7
Page 21
December 01/2010
4) Installation of clutch and starter gear assembly
General NOTES: Follow the sequence exactly. The starter reduction gear as-
sembly cannot be installed after insertion of the starter gear
assembly.
4.1) Installing starter reduction gear assembly
Special tools The following special tools and equipment are required:
Instructions See Figure 13.
Graphic Starter reduction gear assembly

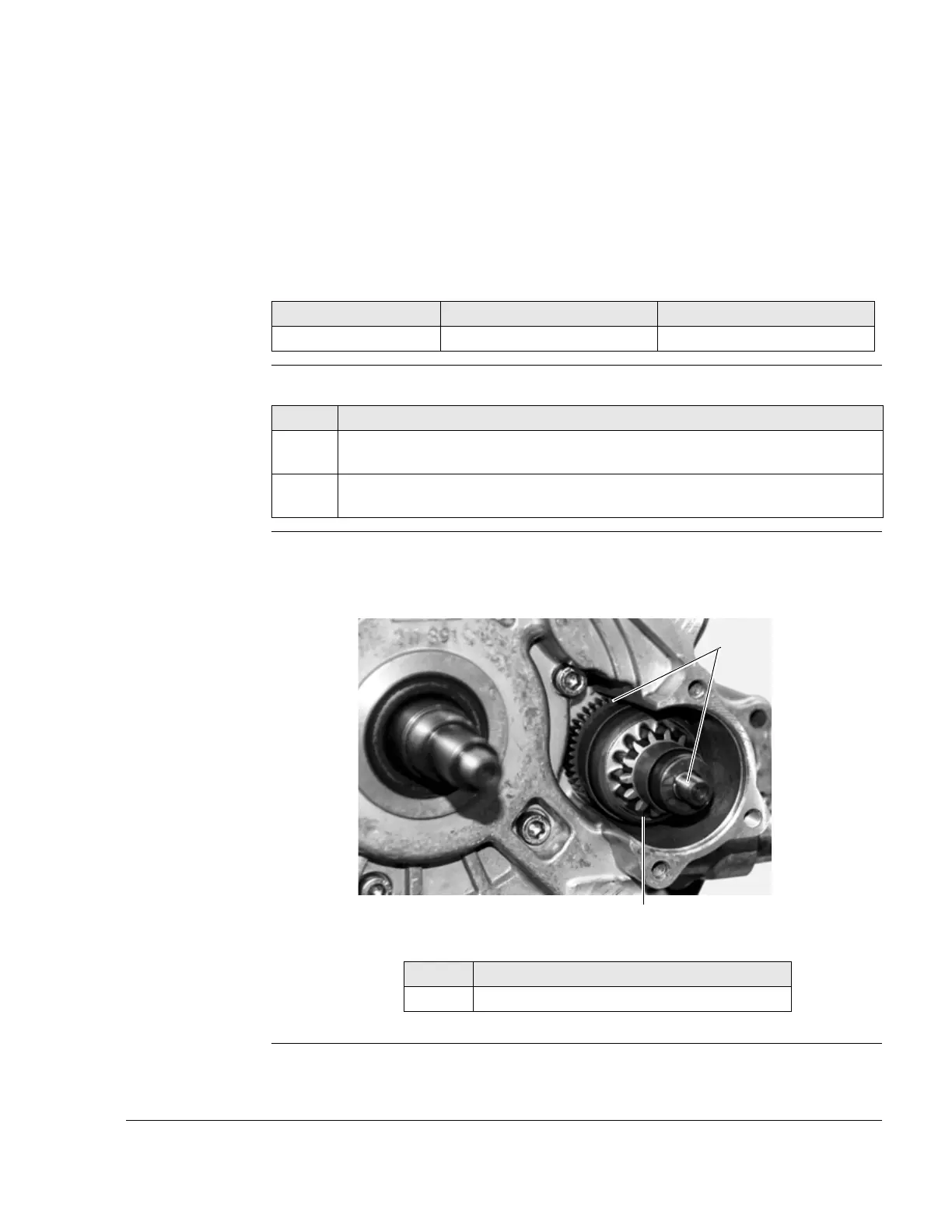

Figure 13 K00117
Part number Description Use
Part no. 897330 Lithium-base grease Starter drive
Step Procedure
1 Grease starter reduction gear assembly (1) with lithium soap grease in the area
of the two bearing seats and the two gears.
2 Slide the thrust washer 8.1/150.5 and starter reduction gear assembly (1) into
the bearing seat in the housing together.
Part Function
1 Starter drive
1
Lithium-base grease
