Rotax 125 Micro MAX User Manual

DK00027.fm
REPAIR MANUAL
BRP-Powertrain
Effectivity: 125 MAX/125 Junior MAX/125 Mini
MAX/125 Micro MAX
Edition 2 / Rev. 0
Chapter 5
Page 9
December 01/2010
3.1) Disassembling crankshaft
Safety
instructions

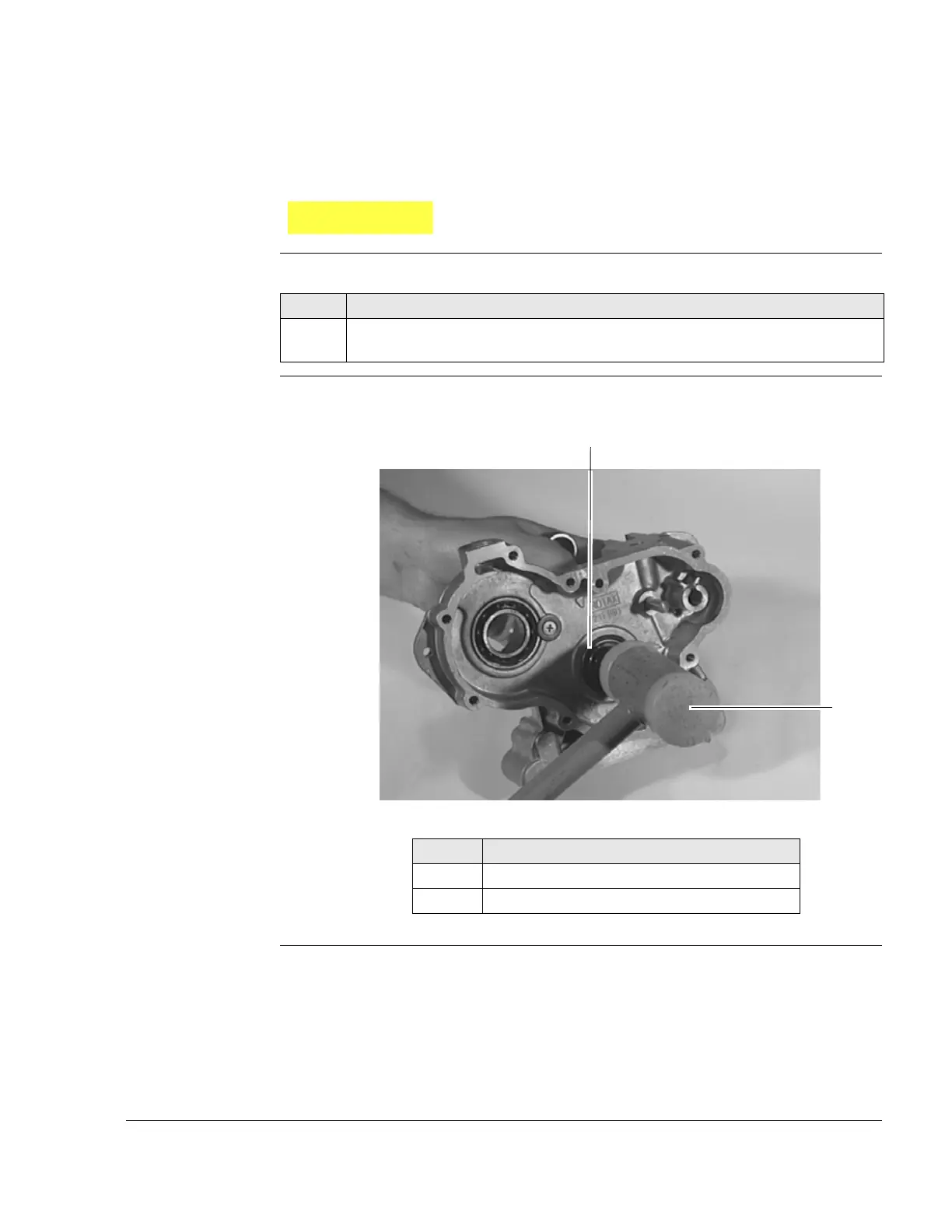

Instructions See Figure 4.
Graphic Crankshaft
Figure 4 K00036

WARNING

CAUTION
Increased danger of injury!
Be aware of the weight of shafts.
Step Procedure
1 Gently tap the crankshaft with the plastic hammer (2) to remove the crankshaft
from the case half.
Part Function
1 Crankshaft
2 Plastic hammer
2
1
