Rotax 125 Micro MAX User Manual

DK00029.fm
REPAIR MANUAL
BRP-Powertrain
Effectivity: 125 MAX/125 Junior MAX/125 Mini
MAX/125 Micro MAX
Edition 2 / Rev. 0
Chapter 7
Page 6
December 01/2010
2.2) Removal of the electric starter
Instructions See Figure 3.
Proceed as follows to remove the electric starter :

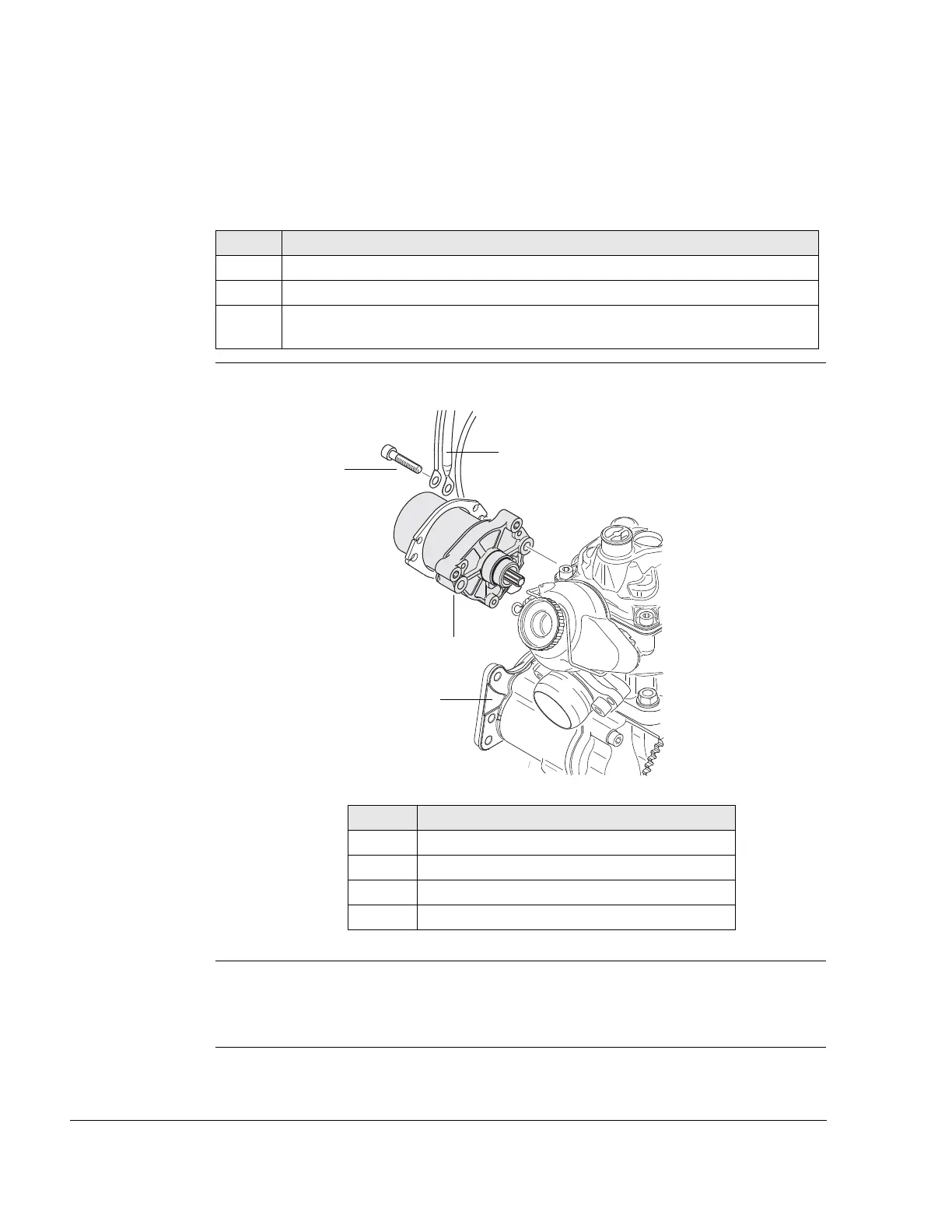

Graphic Electric starter
Figure 3
K00078
2.2.1) Positioning the engine on the trestle mounting plate
See also Chap. 3 Section: 2.6).
Step Procedure
1 Disconnect electrical connection from the starter.
2 Disconnect the ground cable (4) from the housing.
3 Remove the electric starter (1) completely by unscrewing 2 cyl. screws (2)
from the crankcase and gearbox case (3).
Part Function
1 Electric starter
2 Cyl. screw
3 Gearbox case
4 Ground cable
1
2
4
3
