Rotax 125 Micro MAX User Manual

DK00026.fm
REPAIR MANUAL
BRP-Powertrain
Effectivity: 125 MAX/125 Junior MAX/125 Mini
MAX/125 Micro MAX
Edition 2 / Rev. 0
Chapter 4
Page 17
December 01/2010
3.3) Inspection of spark plug

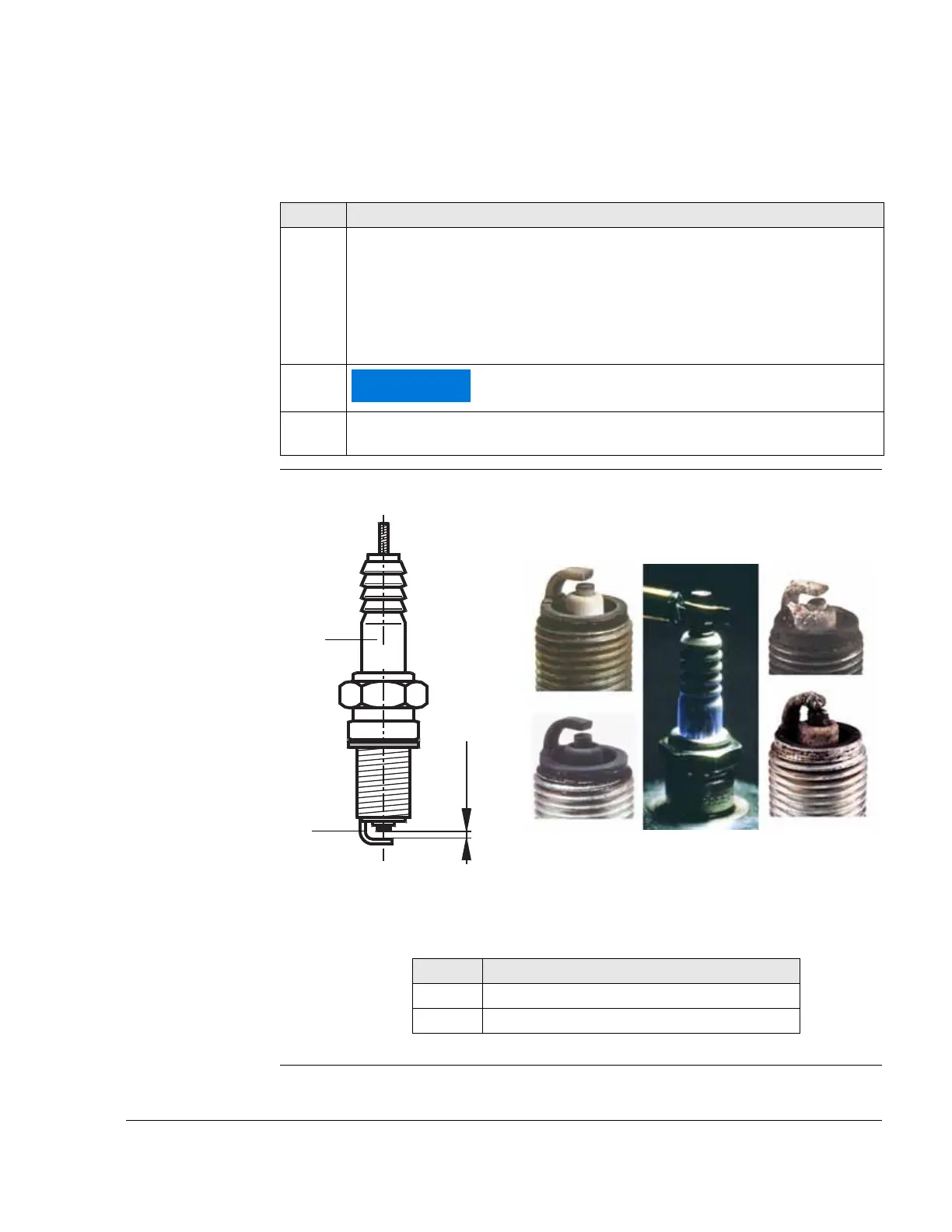

Instructions See Figure 10.
Graphic Spark plug
Figure 10
K00031, K00073
Step Procedure
1 Visual inspection of the spark plug for carbonization, oil fouling and discolora-
tion of the electrode.
1 = normal
2 = fouled
3 = insulator breakage
4 = melted electrode
5 = oil carbon / deposits
The ground electrode can be bent only by a minimal
amount.
2 Check the electrode gap of the spark plug with a feeler gauge and adjust if re-
quired to s = 0.45 mm to 0.7 mm.
NOTICE
Part Function
1 Spark plug
2 Electrode
s
2
1
Pos. 3
Pos. 4
Pos. 2
Pos. 1
Pos. 5
