Rotax 125 Micro MAX - Disassembling the Electric Starter

DK00029.fm
REPAIR MANUAL
BRP-Powertrain
Effectivity: 125 MAX/125 Junior MAX/125 Mini
MAX/125 Micro MAX
Edition 2 / Rev. 0
Chapter 7
Page 17
December 01/2010
Disassembling electric starter
Instructions See Figure 11.
NOTES: If necessary, unscrew the rubber seal and the ground pole
from the starter support and clean them.

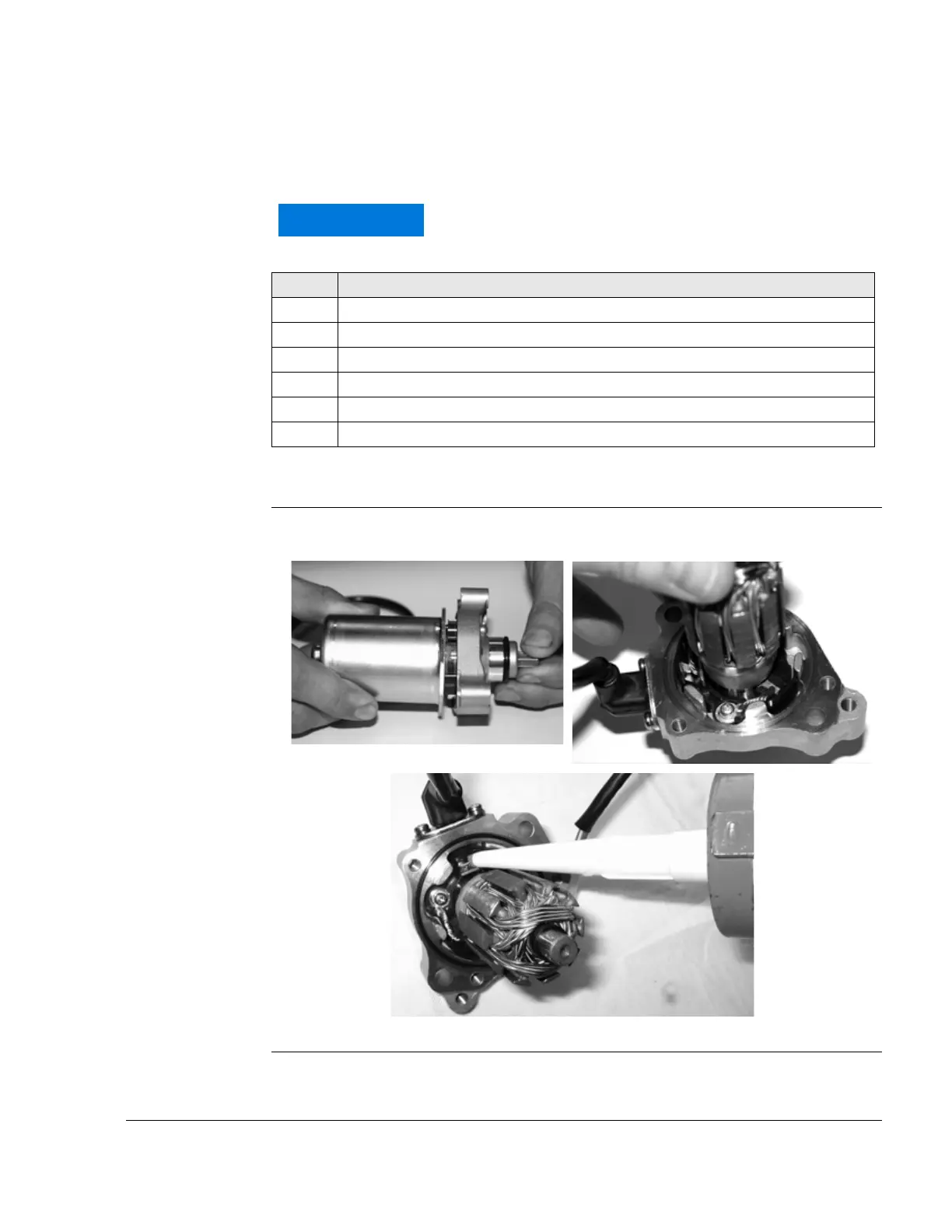

Graphic Electric starter
Figure 11
K00147,K00148,K00149

WARNING
NOTICE
Take care that the spring-loaded sliding contacts are
not lost.
Step Procedure
1 Secure the rotor shaft with a suitable tool.
2 Pull out solenoid housing .
3 Pull the rotor shaft from the starter motor support.
4 Unscrew the bracket for the positive contact.
5 Press out the rubber grommet.
6 Extract the positive contact by pulling it inwards through the plastic ring.
