REPAIR MANUAL
BRP-Powertrain
Effectivity: 125 MAX/125 Junior MAX/125 Mini
MAX/125 Micro MAX
Edition 2 / Rev. 0
Chapter 6
Page 16
December 01/2010

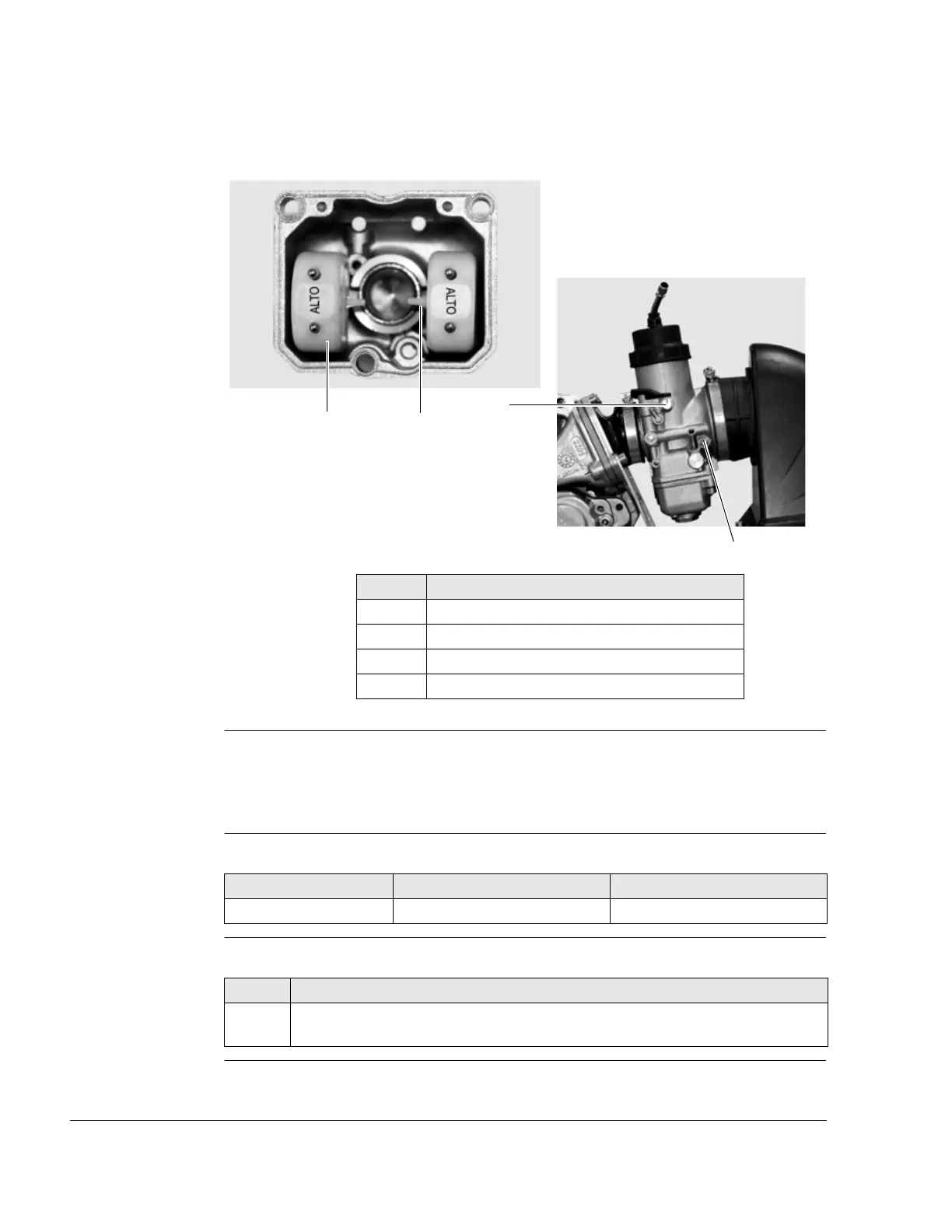

Graphic
Float chamber
Figure 9 K00110,K00111
4.2) Assembly of intake silencer
General NOTES: Immerse the filter element in filter oil before assembly and
then squeeze out the excess oil.
Special tools The following special tools and equipment are required:
Instructions Proceed as follows to install the intake silencer:
Part Function
1 Float attachment
2 Float
3 Adjustment screw
4 Adjustment screw kit
2
3
4
1
Part number Description Use
Part no. 297160 Filter oil Filter element
Step Procedure
1 The assembly of the parts is identical to the disassembly in reverse order. See
also Chap. 6 Section: 2.1.3).
