DK00026.fm
REPAIR MANUAL
BRP-Powertrain
Effectivity: 125 MAX/125 Junior MAX/125 Mini
MAX/125 Micro MAX
Edition 2 / Rev. 0
Chapter 4
Page 28
December 01/2010

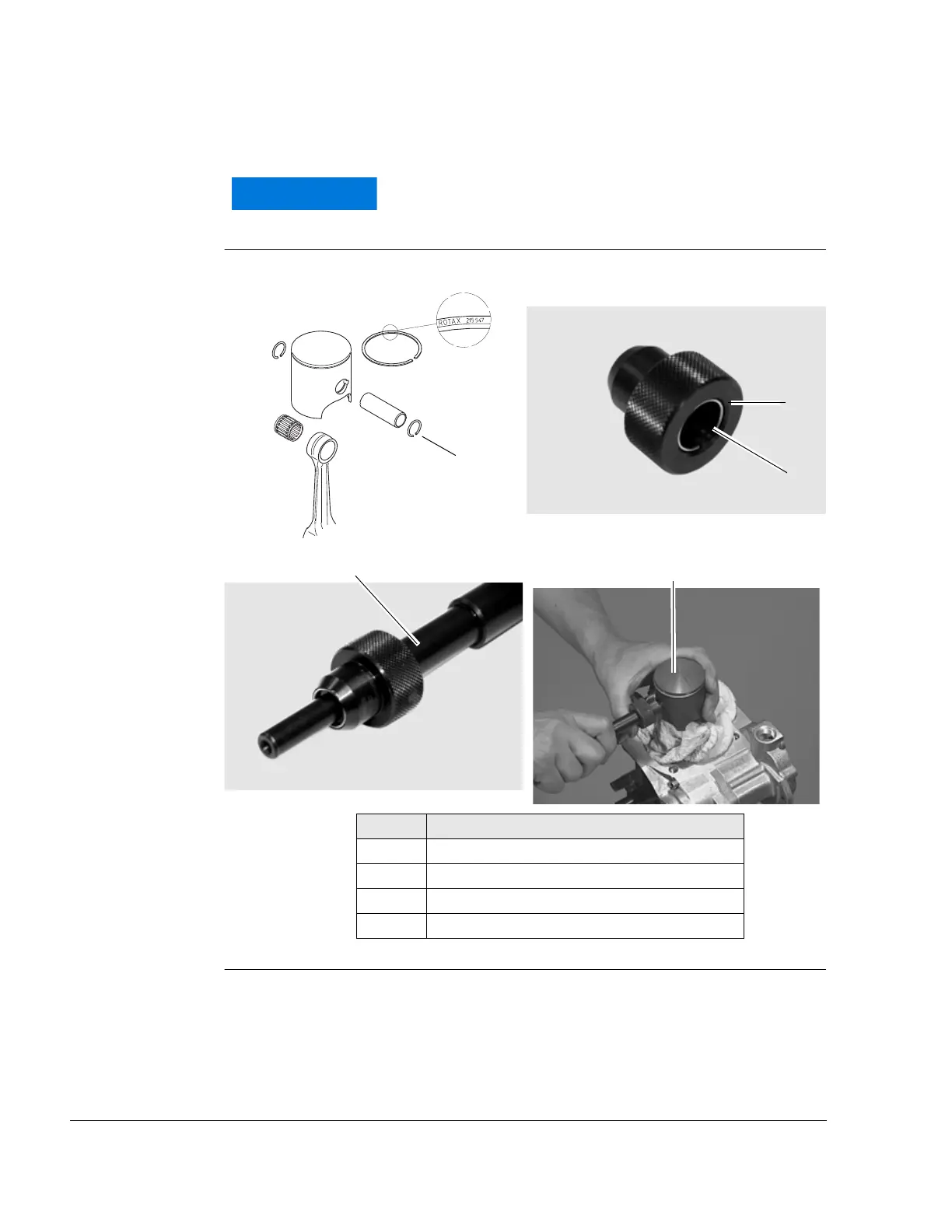

NOTES: The installation tool centers itself in the piston pin.
Graphic Piston pin
Figure 19
K00028, K00100, K00101, K00059
WARNING
NOTICE
Check that the circlip is correctly seated in the piston
groove.
Part Function
1 Circlip
2 Mounting sleeve
3 Installation tool
4Piston
1
3
1
2
4
