Operating Instructions Cubis
®
MCE 13
Device Description
3.2 Draft Shield
5
4
7
6
31 2

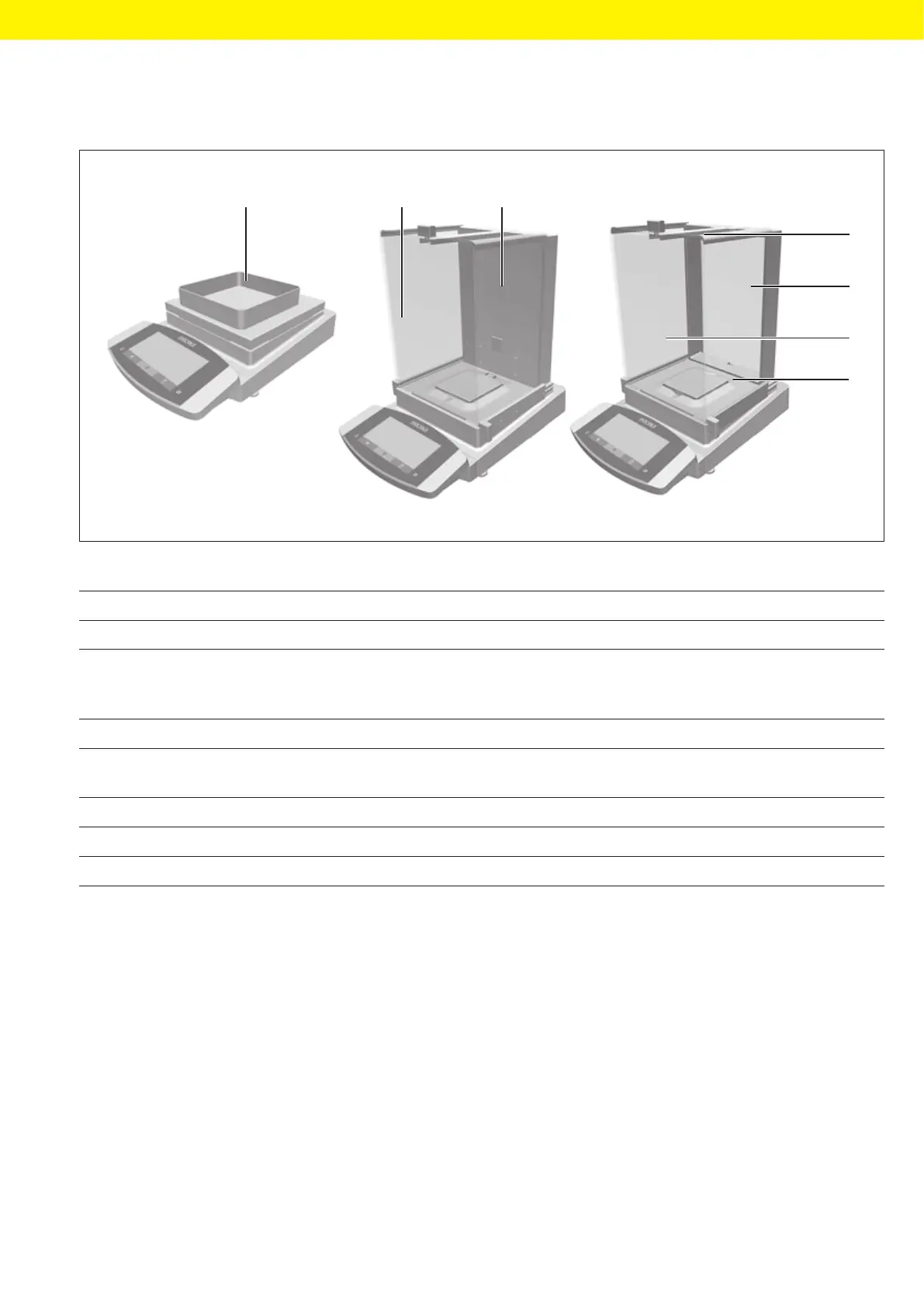

Fig. 2: Precision balance with frame draft shield, analytical balance with motorized analytical draft shield, and analytical balance with manual
analytical draft shield (example)
Pos. Name Description
1 Frame draft shield Is placed on the draft shield.
2 Analytical draft shield − Can be opened at the door handle of the upper panel or at the door han-
dles of the side panels.
− Is motorized in some models.
3 Housing back plate Manufactured from metal and plastic parts
4 Upper draft shield panel − Used to open the upper panel.
− Can be opened manually and is motorized in some models.
5 Rear panel Glass
6 Front panel Glass
7 Side panel Can be opened manually and is motorized in some models.
