Operating Instructions Cubis
®
MCE 91
Technical Data
15.9.2 Models MCE524S | MCE524P | MCE5203S | MCE5203P | MCE3203S
Unit Value
isoCAL is triggered by the following criteria:
In the event of a temperature change K 1.5
After a time interval h 6
After successful leveling
15.10 Interfaces
15.10.1 Specifications for the COM-RS232 Interface
Type of interface Serial interface
Interface operation Full duplex
Level RS232
Connection D-sub connector, 9-pin
Maximum cable length 10 m

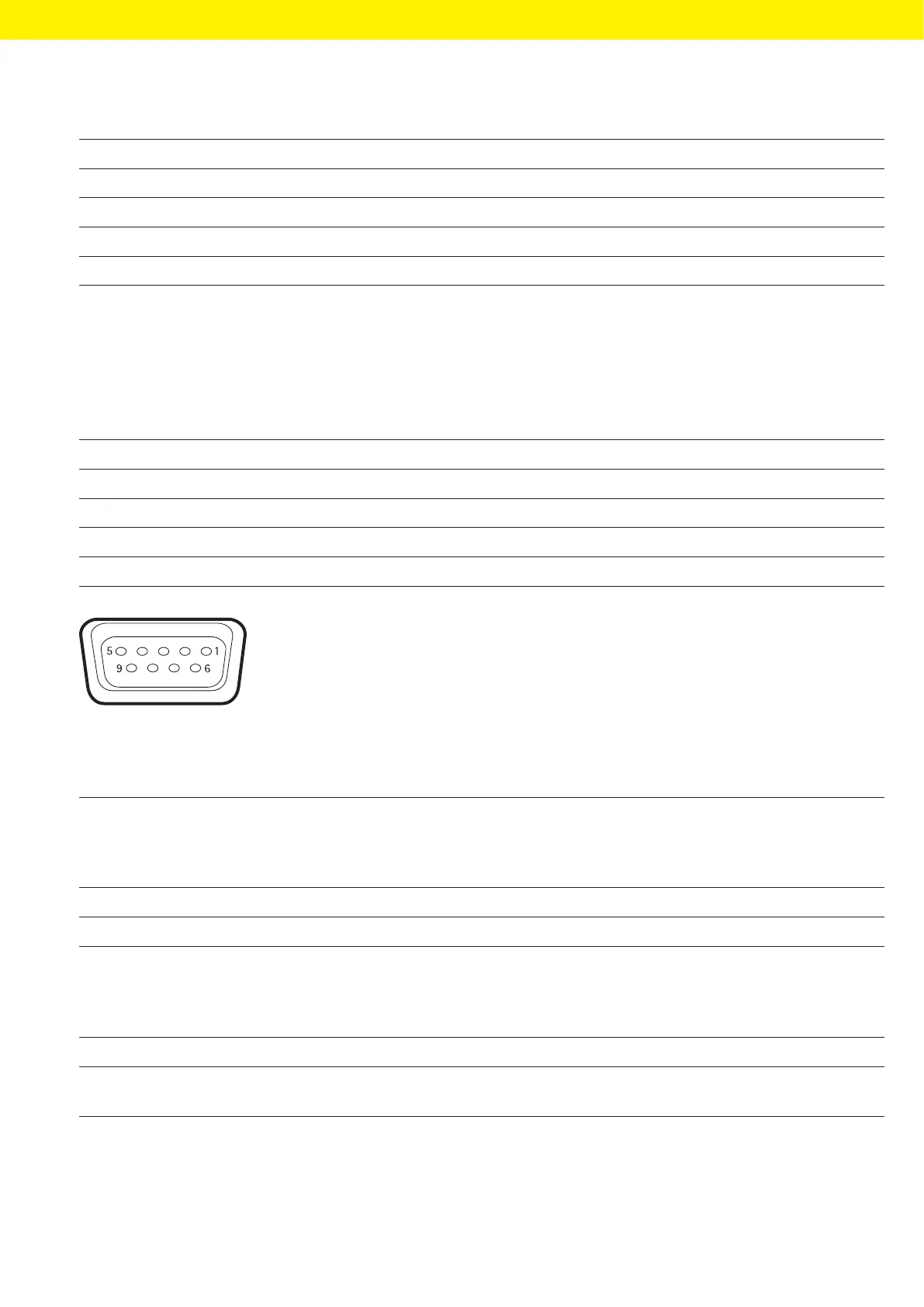

Pin assignment
Pin 1: Not assigned
Pin 2: Data output (TxD)
Pin 3: Data input (RxD)
Pin 4: Not assigned
Pin 5: Internal ground
Pin 6: Not assigned
Pin 7: Clear to Send (CTS)
Pin 8: Request to Send (RTS)
Pin 9: Not assigned
15.10.2 Specifications for the USB-A Interface
Communication USB host (master)
Connectable devices Sartorius printers, USB sticks with software update
15.10.3 Specifications for the USB-B Interface
Communication USB device (slave)
Type of interface Virtual serial interface (virtual COM-port, VCP) and “PC direct”
communication
