36 Operating Instructions Cubis
®
MCE
Installation

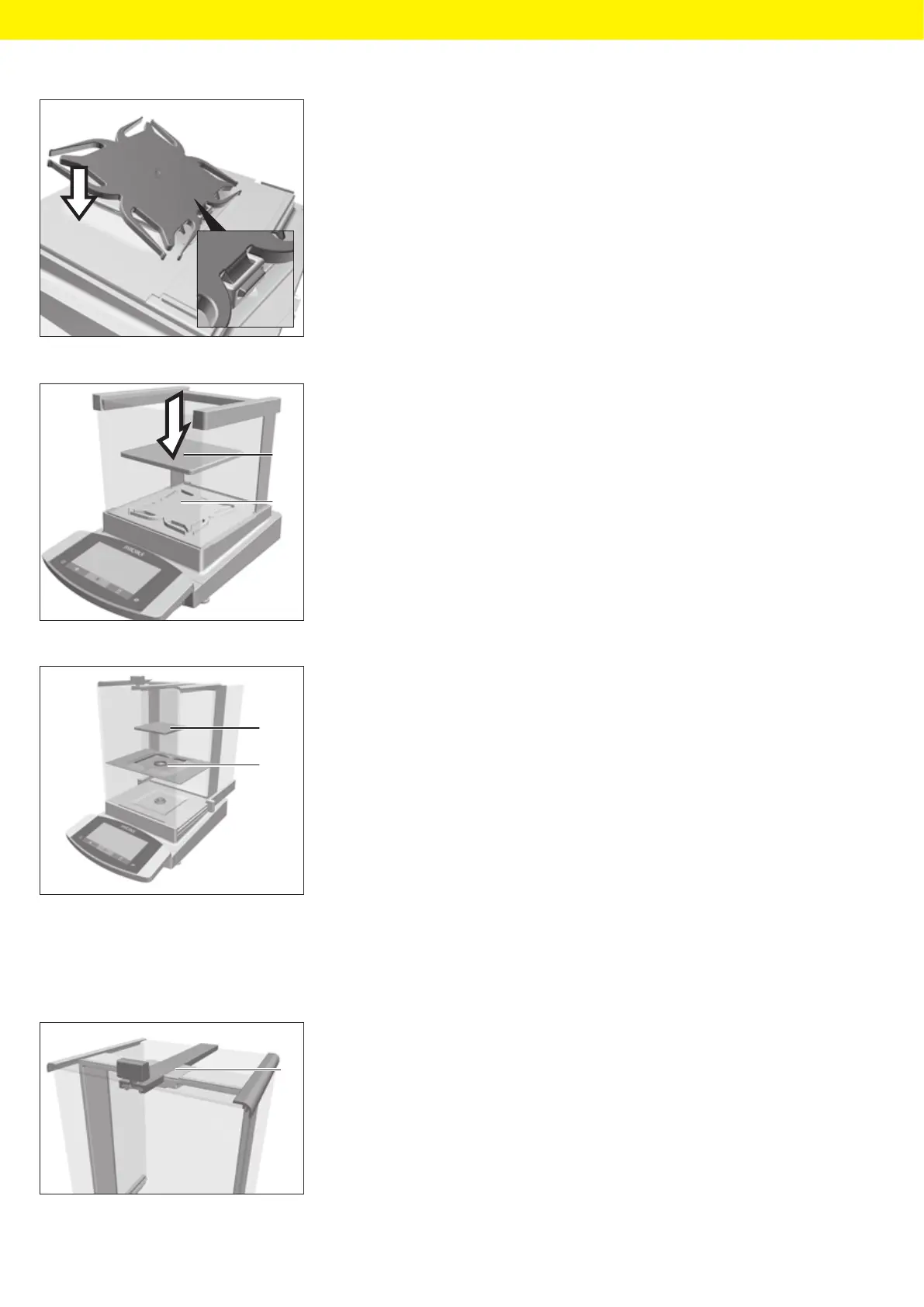

t If this relates to a device with a pan support:
t Hook the pin on the pan support into the clip on the pan retainer.
t Push the pan support down onto the pan retainer until the pan
support lies parallel to the device housing.
t Place the weighing pan (1) onto the pan support (2).
t If this relates to a device without a pan support: Place the shield plate (2)
into the weighing chamber. Place the weighing pan (1) into the recess in
the shield plate.
5.6.2 Installing the Analytical Draft Shield
Procedure
t Slide the upper panel into the guide rail (1).
t To fully insert the upper panel: Gently push the upper panel down.
t Slide the upper panel completely into the guide rail.
1
2
1
2
1
