Sartorius Cubis MCE - Weighing Pan and Associated Components

14 Operating Instructions Cubis
®
MCE
Device Description
3.3 Weighing Pan and Associated Components
2
1
3
4
1
3
4
1
2
4
3

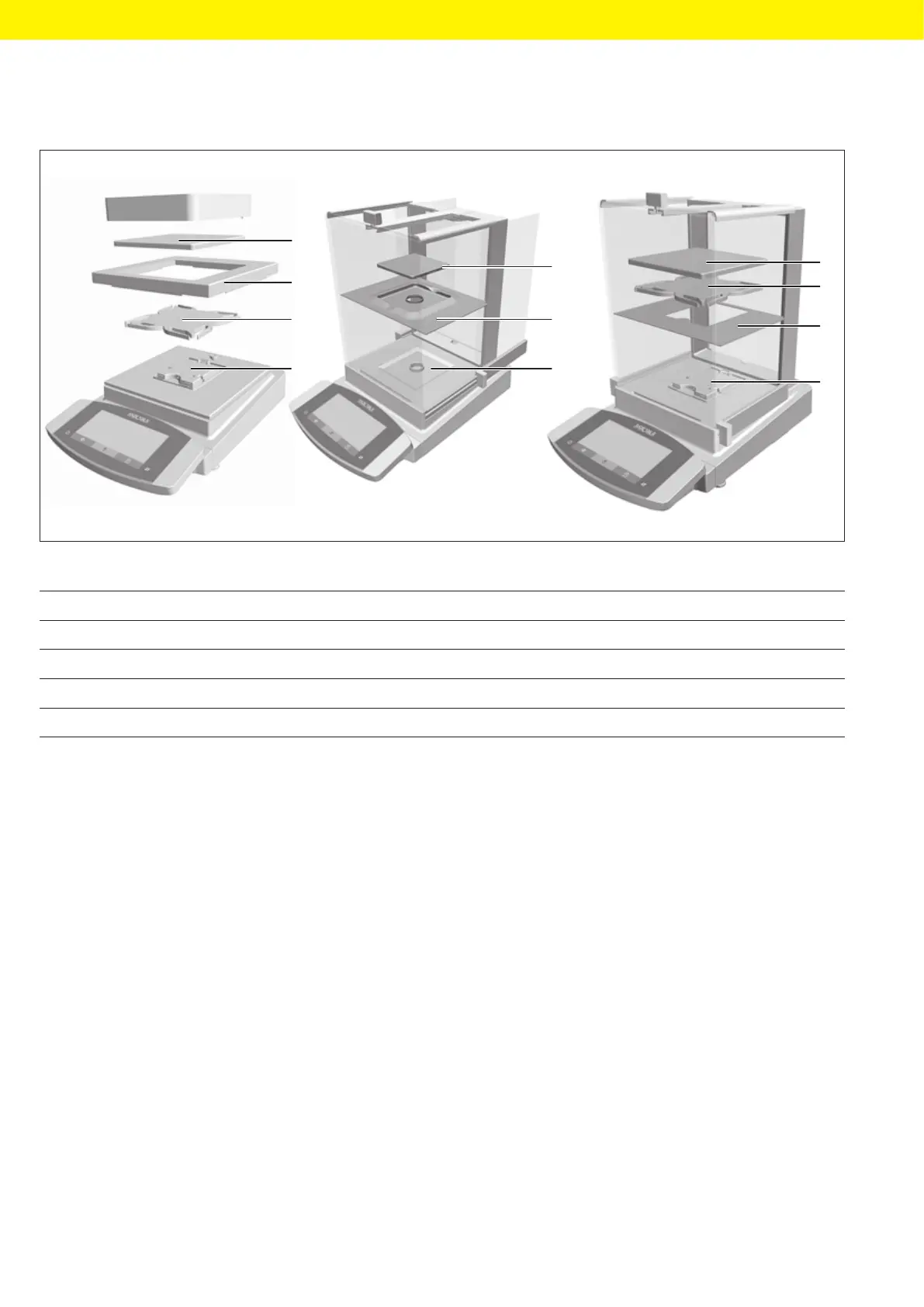

Fig. 3: Precision balances with frame draft shield, analytical balance with manual analytical draft shield, and precision balance with manual
analytical draft shield (example)
Pos. Name Description
1 Weighing pan
2 Pan support Only for models with pan support
3 Shield plate
4 Pan retainer
