Installation

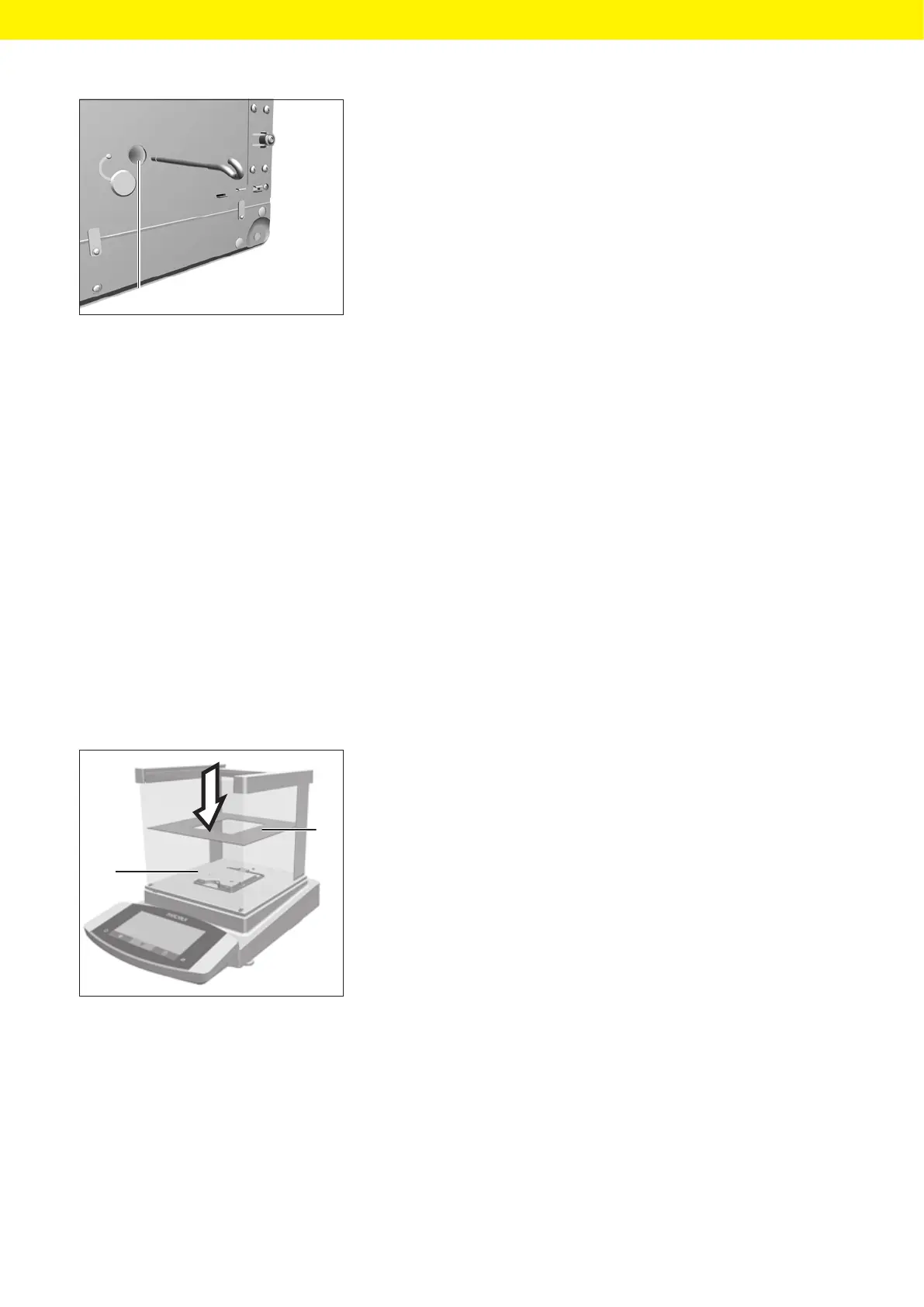

t NOTICE Damage to the device from cross-threading! Ensure that the
hook for below-balance weighing is inserted straight into the thread (1).
t Install a draft protection shield.
t Suspend the sample on the hook for below-balance weighing, e.g. with
awire.
t To cover the below-balance weighing equipment after weighing:
t Remove the hook for below-balance weighing from the thread.
t Return the hook for below-balance weighing to its retainer on the
underside of the weighing module.
t Re-insert the cover of the below-balance weighing equipment.
t Place the device back on the device base on a level surface.
5.6 Installing a Device with an Analytical Draft
Shield or Flat Glass Draft Shield
5.6.1 Positioning the Weighing Pan and Associated
Components
Procedure
t Place the shield plate (1) on the base of the weighing chamber (2).
1
1
2
