greater than the LER setting will produce an error message. If the LER setting has changed,
previous event information is no longer accessible.
Event Report Description

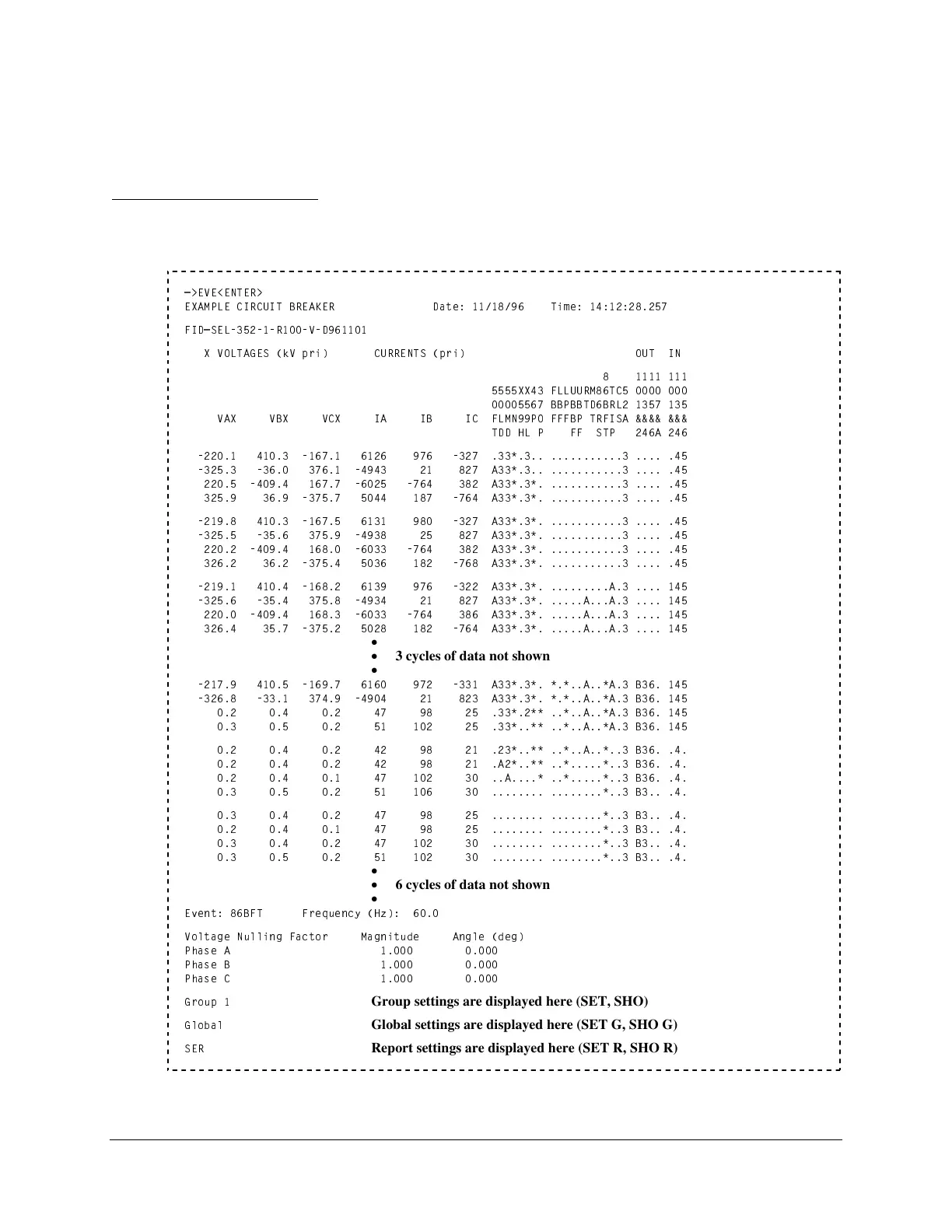

Refer to the example event reports that follow. These example event reports display rows of
information each quarter-cycle. Retrieve such reports with the EVE n and EVE A n commands.
=>EVE<ENTER>
EXAMPLE CIRCUIT BREAKER Date: 11/18/96 Time: 14:12:28.257
FID=SEL-352-1-R100-V-D961101
X VOLTAGES (kV pri) CURRENTS (pri) OUT IN
8 1111 111
5555XX43 FLLUURM86TC5 0000 000
00005567 BBPBBTD6BRL2 1357 135
VAX VBX VCX IA IB IC FLMN99PO FFFBP TRFISA &&&& &&&
TDD HL P FF STP 246A 246
-220.1 410.3 -167.1 6126 976 -327 .33*.3.. ...........3 .... .45
-325.3 -36.0 376.1 -4943 21 827 A33*.3.. ...........3 .... .45
220.5 -409.4 167.7 -6025 -764 382 A33*.3*. ...........3 .... .45
325.9 36.9 -375.7 5044 187 -764 A33*.3*. ...........3 .... .45
-219.8 410.3 -167.5 6131 980 -327 A33*.3*. ...........3 .... .45
-325.5 -35.6 375.9 -4938 25 827 A33*.3*. ...........3 .... .45
220.2 -409.4 168.0 -6033 -764 382 A33*.3*. ...........3 .... .45
326.2 36.2 -375.4 5036 182 -768 A33*.3*. ...........3 .... .45
-219.1 410.4 -168.2 6139 976 -322 A33*.3*. .........A.3 .... 145
-325.6 -35.4 375.8 -4934 21 827 A33*.3*. .....A...A.3 .... 145
220.0 -409.4 168.3 -6033 -764 386 A33*.3*. .....A...A.3 .... 145
326.4 35.7 -375.2 5028 182 -764 A33*.3*. .....A...A.3 .... 145

 3 cycles of data not shown

-217.9 410.5 -169.7 6160 972 -331 A33*.3*. *.*..A..*A.3 B36. 145
-326.8 -33.1 374.9 -4904 21 823 A33*.3*. *.*..A..*A.3 B36. 145
0.2 0.4 0.2 47 98 25 .33*.2** ..*..A..*A.3 B36. 145
0.3 0.5 0.2 51 102 25 .33*..** ..*..A..*A.3 B36. 145
0.2 0.4 0.2 42 98 21 .23*..** ..*..A..*..3 B36. .4.
0.2 0.4 0.2 42 98 21 .A2*..** ..*.....*..3 B36. .4.
0.2 0.4 0.1 47 102 30 ..A....* ..*.....*..3 B36. .4.
0.3 0.5 0.2 51 106 30 ........ ........*..3 B3.. .4.
0.3 0.4 0.2 47 98 25 ........ ........*..3 B3.. .4.
0.2 0.4 0.1 47 98 25 ........ ........*..3 B3.. .4.
0.3 0.4 0.2 47 102 30 ........ ........*..3 B3.. .4.
0.3 0.5 0.2 51 102 30 ........ ........*..3 B3.. .4.

 6 cycles of data not shown

Event: 86BFT Frequency (Hz): 60.0
Voltage Nulling Factor Magnitude Angle (deg)
Phase A 1.000 0.000
Phase B 1.000 0.000
Phase C 1.000 0.000
Group 1 Group settings are displayed here (SET, SHO)
Global Global settings are displayed here (SET G, SHO G)
SER Report settings are displayed here (SET R, SHO R)
