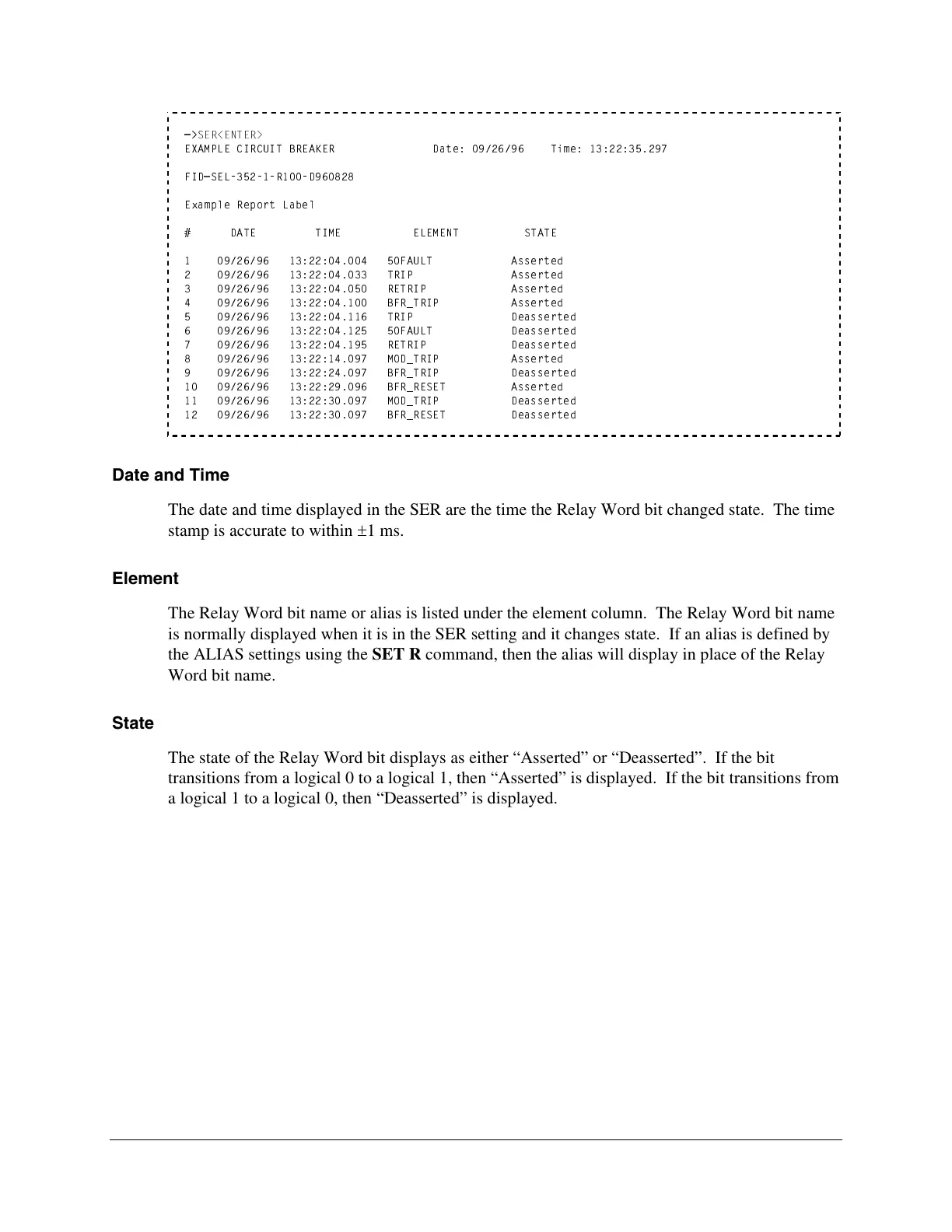

10-16 Event Reports and SER Date Code 20010731
SEL-352-1, -2 Instruction Manual
=>
SER<ENTER>
EXAMPLE CIRCUIT BREAKER Date: 09/26/96 Time: 13:22:35.297
FID=SEL-352-1-R100-D960828
Example Report Label
# DATE TIME ELEMENT STATE
1 09/26/96 13:22:04.004 50FAULT Asserted
2 09/26/96 13:22:04.033 TRIP Asserted
3 09/26/96 13:22:04.050 RETRIP Asserted
4 09/26/96 13:22:04.100 BFR_TRIP Asserted
5 09/26/96 13:22:04.116 TRIP Deasserted
6 09/26/96 13:22:04.125 50FAULT Deasserted
7 09/26/96 13:22:04.195 RETRIP Deasserted
8 09/26/96 13:22:14.097 MOD_TRIP Asserted
9 09/26/96 13:22:24.097 BFR_TRIP Deasserted
10 09/26/96 13:22:29.096 BFR_RESET Asserted
11 09/26/96 13:22:30.097 MOD_TRIP Deasserted
12 09/26/96 13:22:30.097 BFR_RESET Deasserted
Date and Time
The date and time displayed in the SER are the time the Relay Word bit changed state. The time
stamp is accurate to within 1 ms.
Element
The Relay Word bit name or alias is listed under the element column. The Relay Word bit name
is normally displayed when it is in the SER setting and it changes state. If an alias is defined by
the ALIAS settings using the SET R command, then the alias will display in place of the Relay
Word bit name.
State
The state of the Relay Word bit displays as either “Asserted” or “Deasserted”. If the bit
transitions from a logical 0 to a logical 1, then “Asserted” is displayed. If the bit transitions from
a logical 1 to a logical 0, then “Deasserted” is displayed.
