Date Code 20010731 Installation 2-23
SEL-352-1, -2 Instruction Manual
There are no internal connections between inputs. See General Specifications in Section 1:
Introduction and Specifications for ratings.
Output Contacts
30 A make
6 A carry
Closing (pickup for “a” contacts, dropout for “b” contacts): 1/4-cycle or less
Opening (dropout for “a” contacts, pickup for “b” contacts): 1/2-cycle or less (typical
is 1/4-cycle)
These 16 standard dry output contacts share a common terminal for each pair of contacts, but
are not polarity dependent. The rear of the relay will be similar to the following figures:

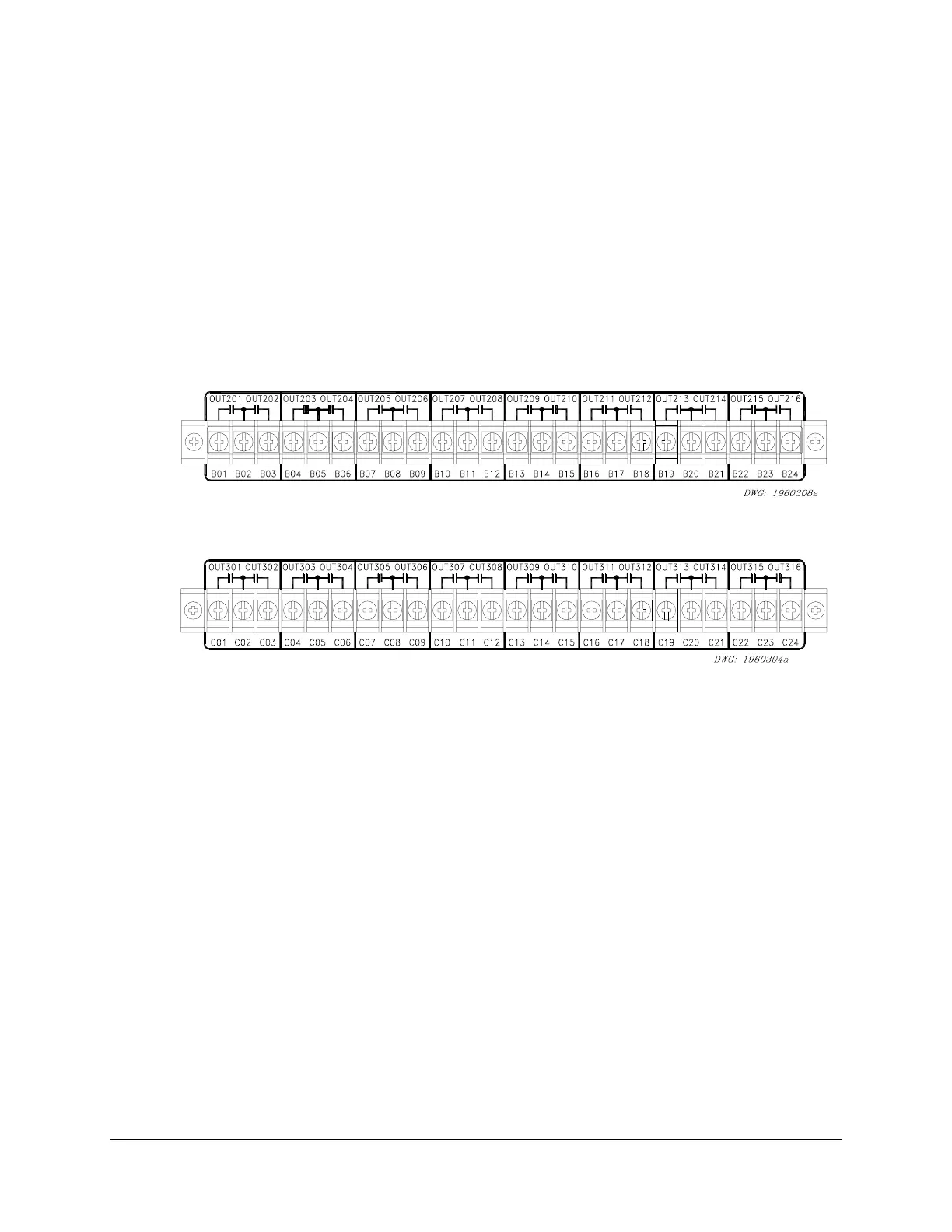

Figure 2.17: Interface Board 1 Output Contacts (Board Position 1)
Figure 2.18: Interface Board 1 Output Contacts (Board Position 2)
Configure the output contacts as “a” contacts or “b” contacts with solder jumpers. Figure 2.19
shows the location of the jumpers and explains the jumper position. Contacts are factory
configured as “a” contacts.
