3-8 Breaker Logic Date Code 20010731
SEL-352-1, -2 Instruction Manual
In both cases, the LFA latch latches the 62FC timer. After the 62FC timer latches, trip signal
dropout does not affect the breaker fail protection scheme.

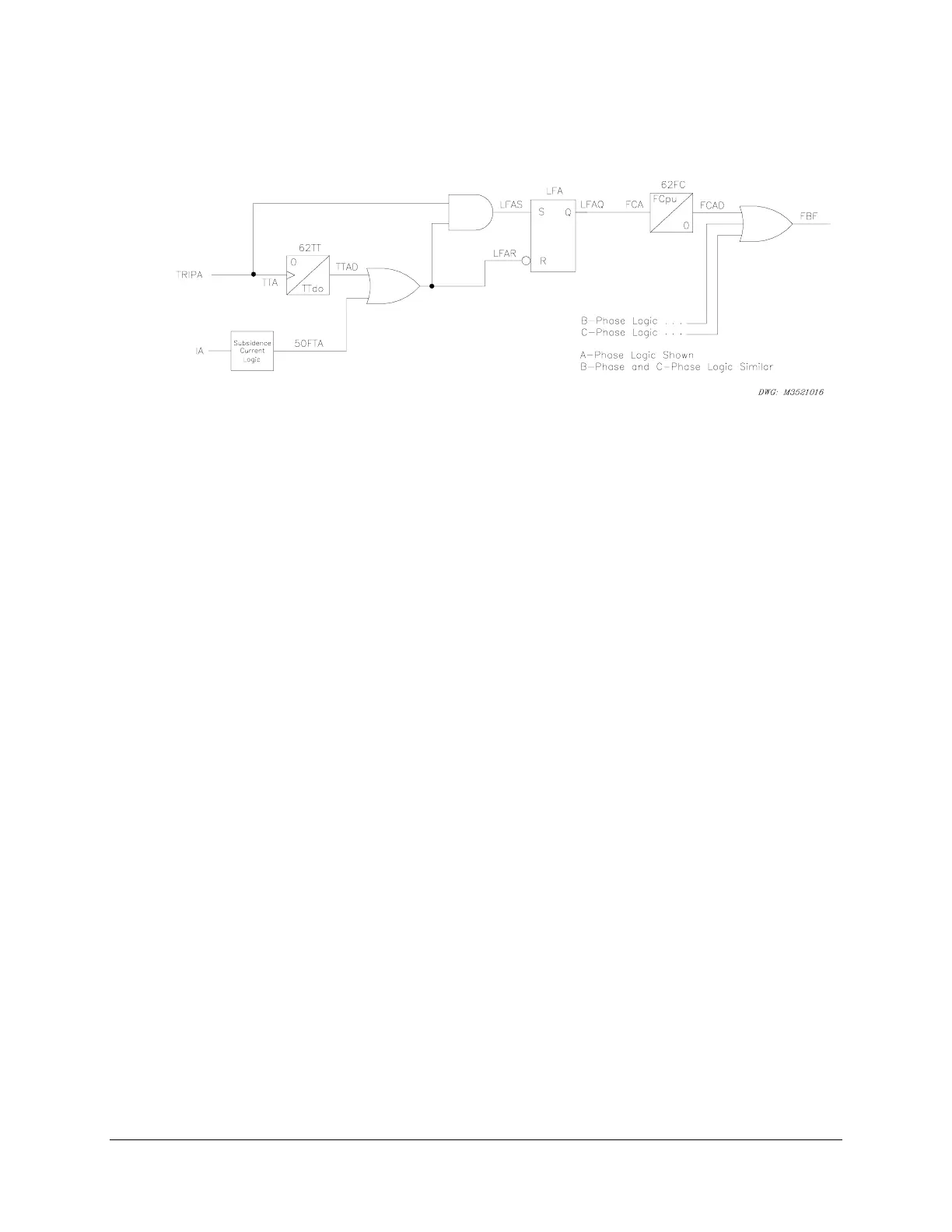

Figure 3.6: A-Phase Failure to Trip for Fault Logic, Scheme 1
